Great Plains DICKEY-john AI-120 12-inch Virtual Terminal - Manual (Page 161)

OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
OPERATION / 153
CREATE AN AS APPLIED JOB REPORT
An As Applied coverage map is exported as an .xml file extension that
contains coverage details. Job reports can also be exported as .csv files by
enabling Per Point Data Logging on the Setup screen (System/Features/
Console) before starting the job.
A job report automatically includes:
• Job name
• Start and end date
• Total area covered
• Total completion hours
• Total hours coverage mapping is active
• Distance covered
• Boundary name
• Boundary area
To Create a Job Report:
1. Insert a USB memory device into a USB port.
2. Press the Job Menu button.
3. Press the Data Exchange button.
4. Select the Export Job Report to USB button.
5. Follow steps to proceed with exporting job (
Figure 220 ).

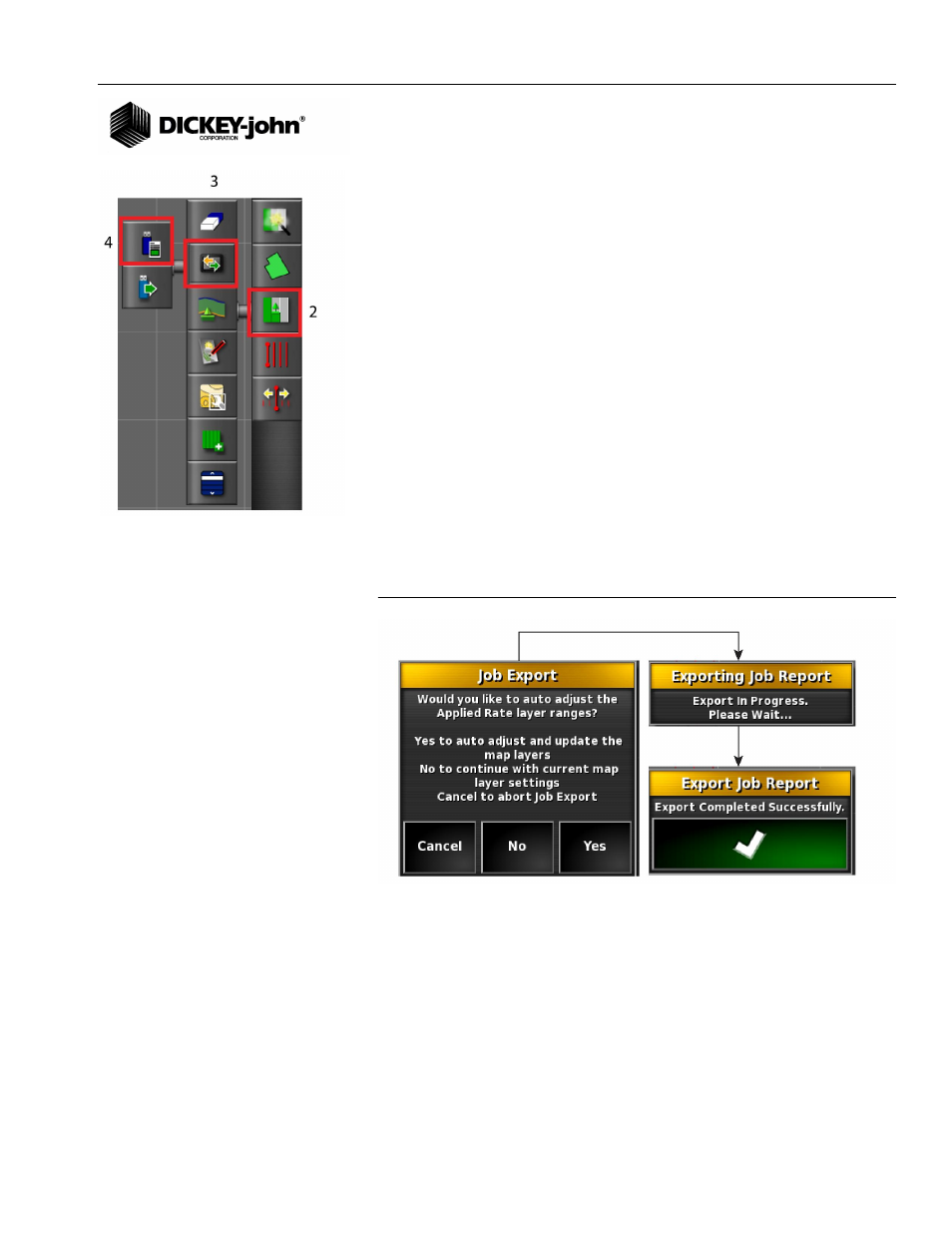

Figure 220
Export a Job Report Steps
NOTE: Refer to Customize a Job Detail
Record to add optional details
to a job.
