OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
MAIN OPERATOR SCREEN / 109

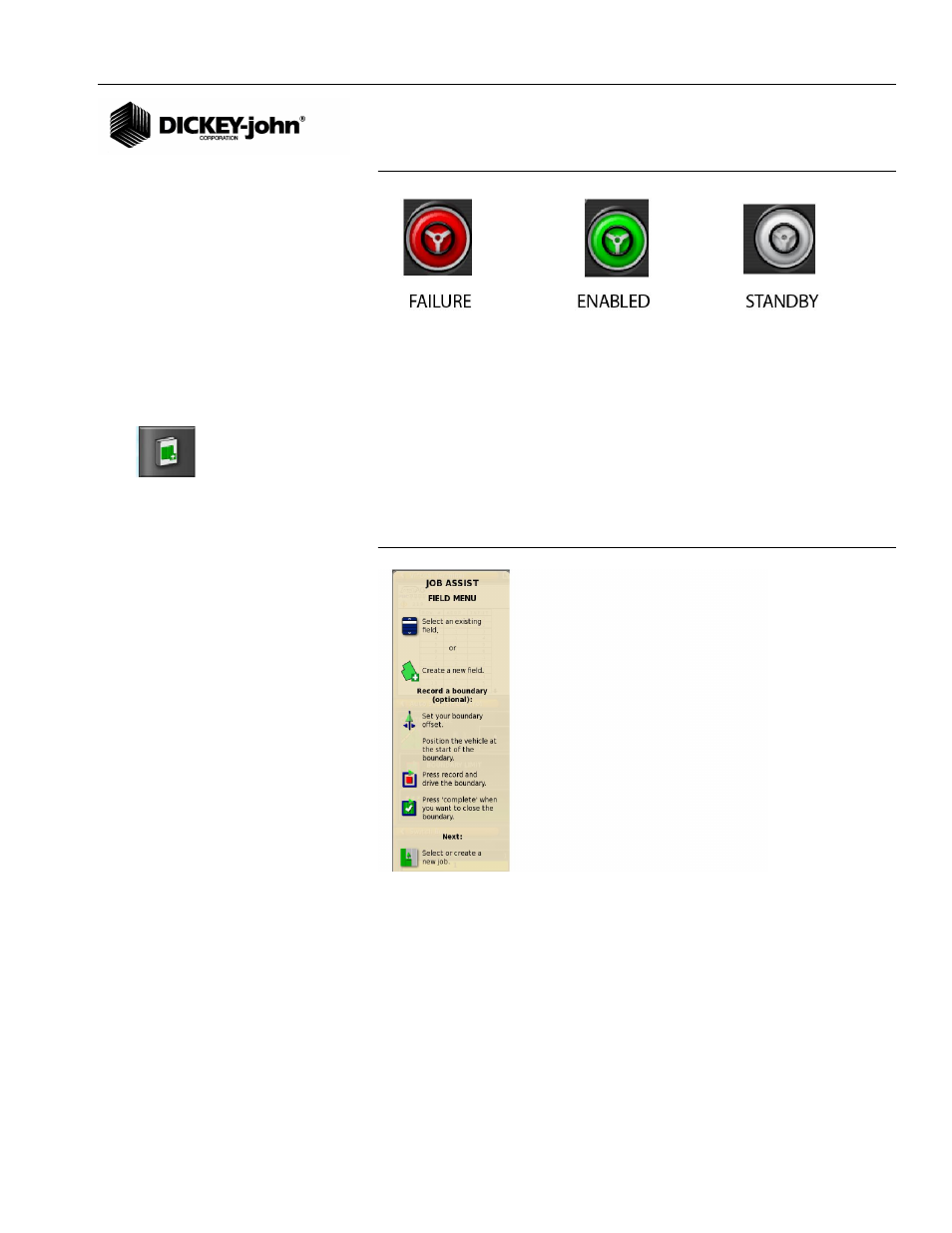

Figure 163
Auto Steer Button
JOB ASSIST BUTTON
Job Assist is an informative menu that defines button functionality for the
toolbar located on the right side of the menu explaining how to use the field,
job, and guideline menus.
– Press the Job Assist button to display the Job Assist popup
window.
– Press any of the toolbar buttons on the right side of the display and
the job Assist window will provide definition of the button function.
Figure 164
Job Assist Menu
DASHBOARD
The Dashboard is located at screen bottom and monitors instruments in
use.
Instruments on the dashboard are enabled or disabled by pressing
anywhere on the dashboard to open a Customized Dashboard window.
– Press to highlight and select the instruments to display onscreen.
One instrument must be displayed.
– Press again to deselect.
