OPERATOR’S MANUAL

AI-120 Virtual Terminal

11001-1606B-201310

68 / TERMINAL SETUP

Enter Implement Dimensions:

1. At the System Setup screen, press the Implement/Geometry icons.
2. Enter appropriate dimensions using the keypad.
3. Press the Check button to accept changes.

NOTE:

Some dimensions auto
populate from the IntelliAg
system and entry is not allowed
at this screen.

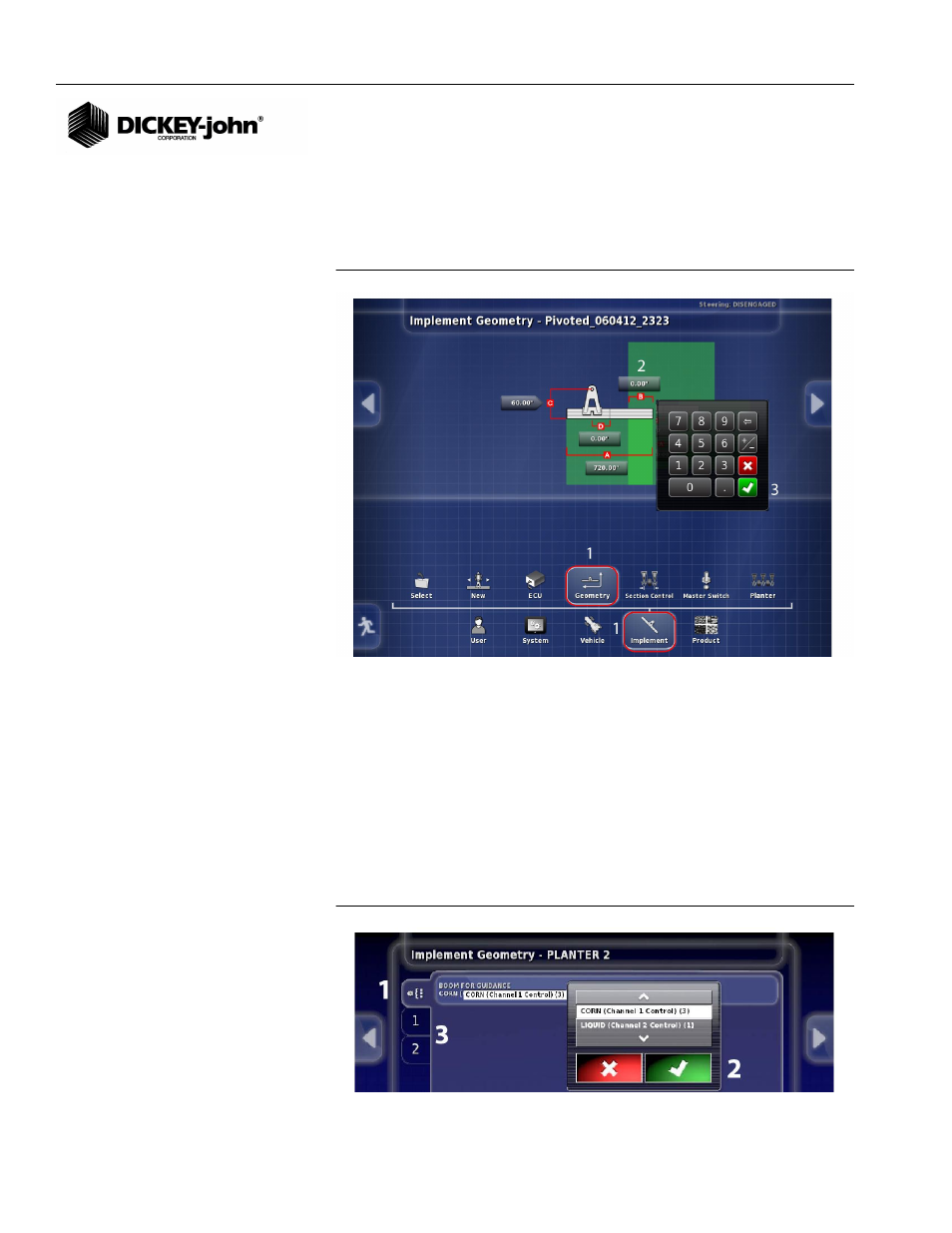

Figure 101

Adding Implement Dimensions

MULTIPLE BOOMS

If the implement has multiple booms, the boom used for guidance must be
selected from the BOOM FOR GUIDANCE selection list and the implement
geometry must be set for each boom on the numbered tabs.

1. To select which channel is controlled by guidance, press the Boom for

Guidance button.

2. Select the control channel and press the Check button to accept.
3. Press the Channel button to view the dimensions assigned to the

channel.

Figure 102

Implement Geometry
