1.2 Parts and controls

761 Compact IC

3

1.2

Parts and controls

POWER

761 Compact IC

8

9

7

6

5

2

3

4

1

10

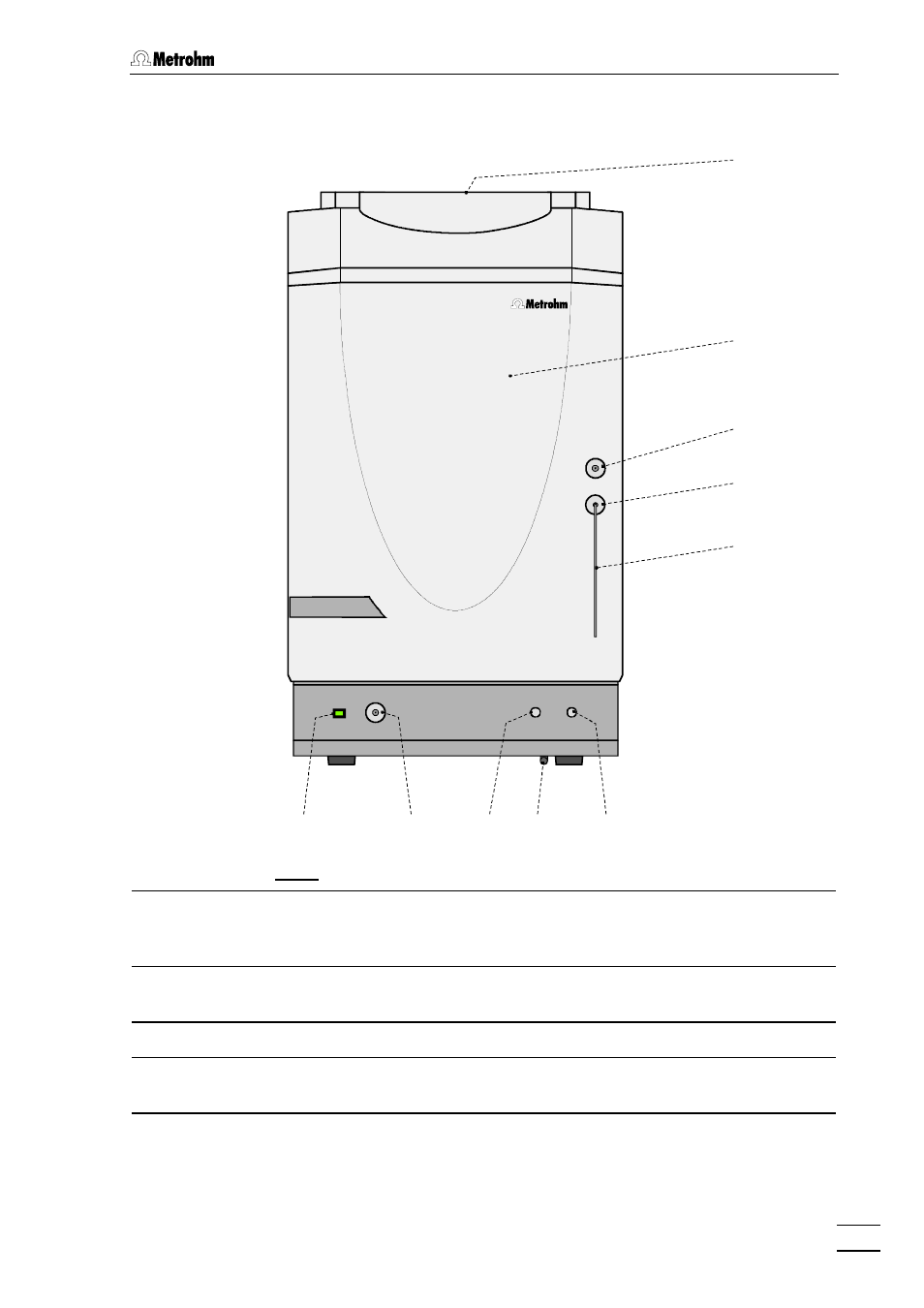

Fig. 1: Front of the 761 Compact IC

1

Door to interior

6 Connection for drain tube

for discharge of spilled liquid from the

interior

2

Connection for 6.2816.020 Syringe

for aspiration of the sample

7 Feedthrough for capillaries

3

Feedthrough for aspirating tubing

8

Connection to purge valve

4

Aspirating tubing

for sample

9

Mains pilot lamp

lit up when instrument switched on

5

Feedthrough for capillaries

10

Bottle rack

for holding supply bottles with eluent,

regeneration solution, and rinsing

solution
