Set up graphic objects

21-37

•

• •

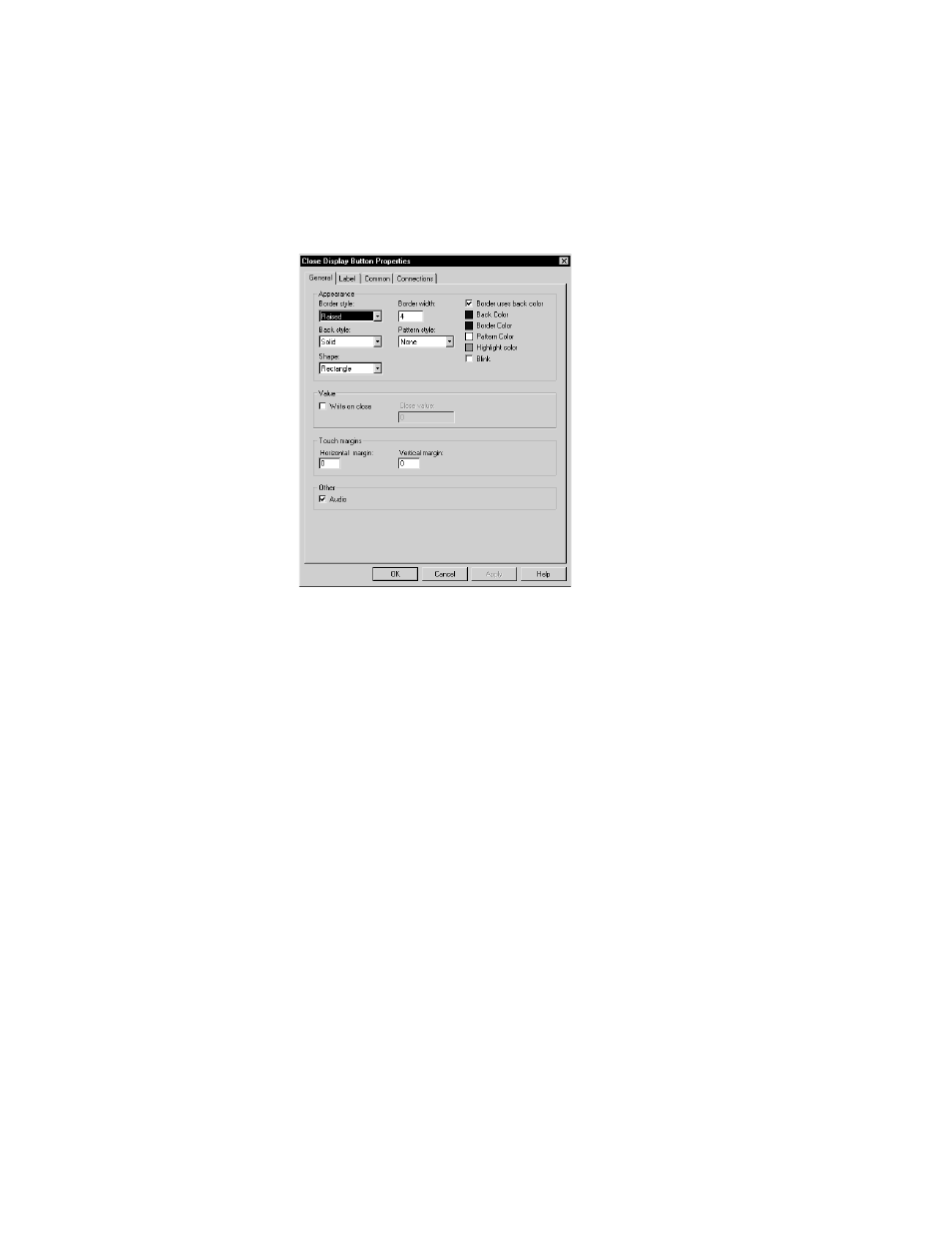

2. In the button’s Properties dialog box, fill in the options on each tab:



In the General tab, specify what the button looks like at run time, and whether to
write out a value when the display closes.



In the Label tab, specify what text or image to show on the button.



In the Common tab, specify the button’s spacial properties, name, and visibility.



In the Connections tab, specify the tag with which the button exchanges data. For
information about assigning tags, see page 20-36.

For details about the options in the tabs, see Help.

3. When you are finished, click OK.

Set up display list selectors

The display list selector is a list of graphic shows in the application. Each graphic display
is represented by a different state in the display list selector. An operator can scroll
through the list of displays, and then select the display to open by pressing an enter button
or Enter key.

For more information about using display list selectors, see page 13-6.
