Use graphic displays

19-11

•

• •

For information about using the Diagnostics List, see page 2-5. For information about
specifying the types of messages to show in the Diagnostics List, see page 10-5.

To use test mode



On the View menu, click Test Display, or click the Test Display tool.

To return to edit mode



On the View menu, click Edit Display, or click the Edit Display tool.

Set up graphic displays

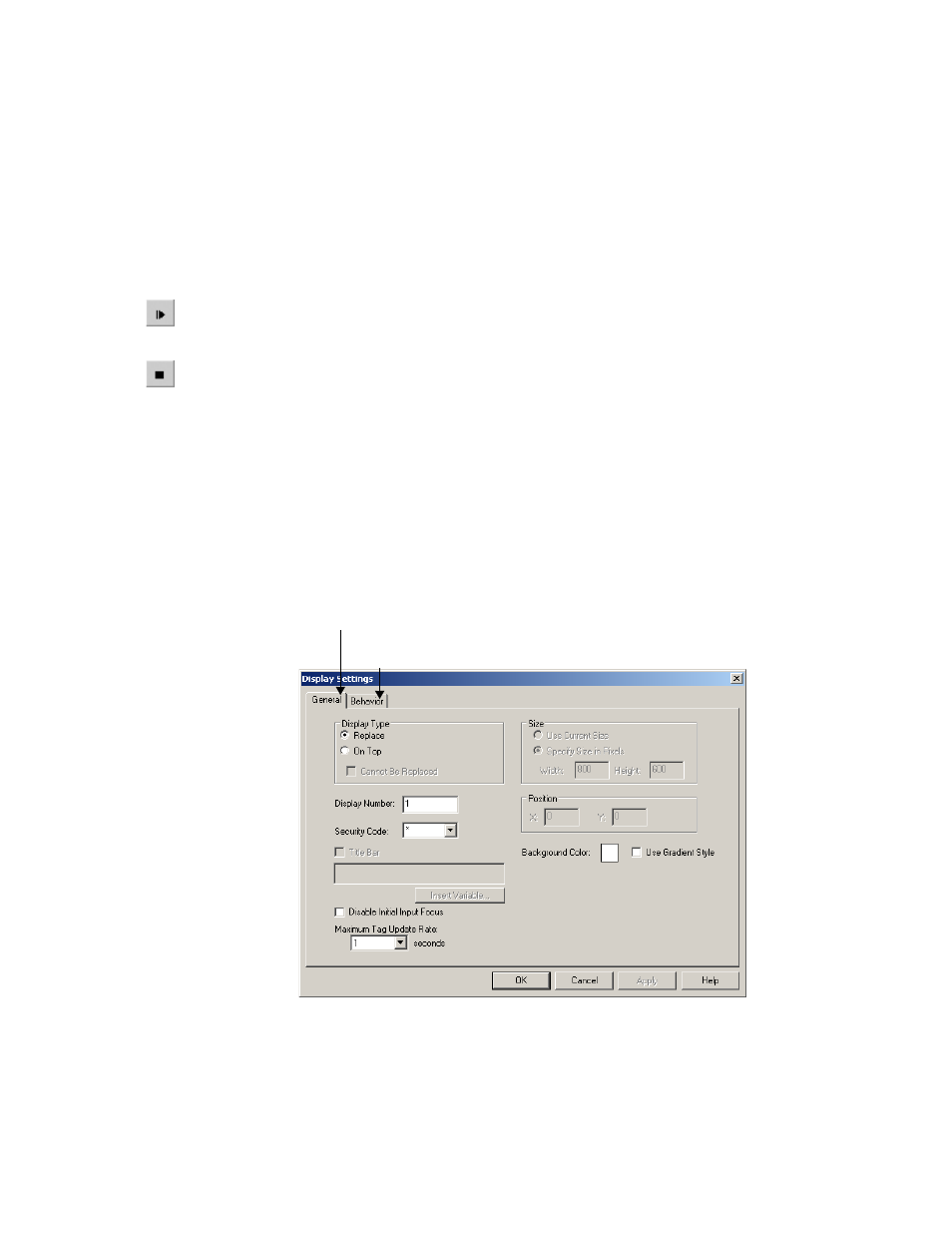

To set up a graphic display, specify its type, background color, and run-time behavior in
the Display Settings dialog box. You can specify and edit the display settings at any time
while you work on your display.

Specify display settings

To specify display settings



On the Edit menu, click Display Settings, or right-click an empty area of the display
and then click Display Settings.

Test Display
tool

Edit Display
tool

Set up how the display looks.

Set up how the display works
