Wiring the SLC Servo Module 5-13

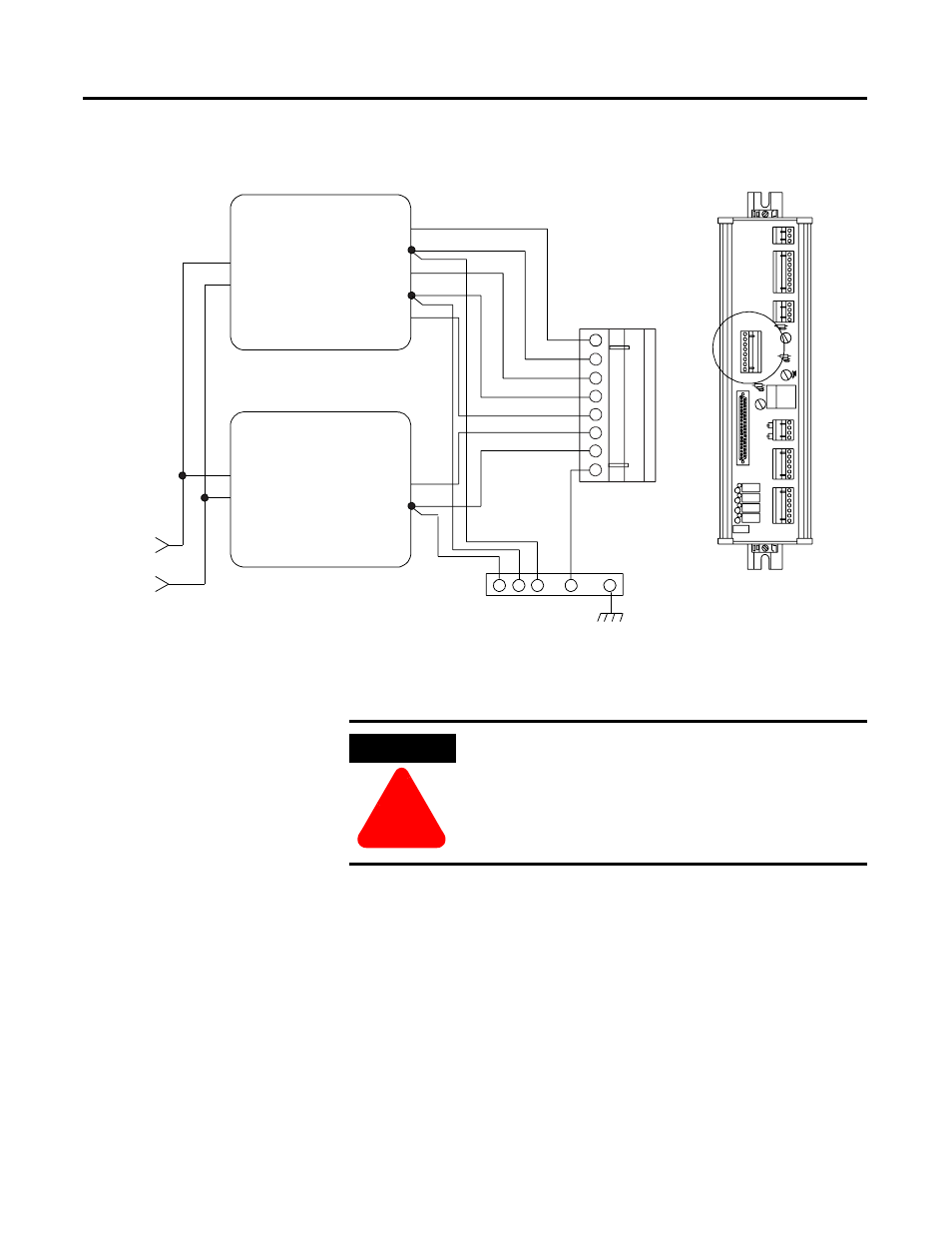

Figure 5.10 Wiring a +5V, ±15V, and a +24V Power Supply
Wiring Encoders When you wire encoders, use a single, continuous, shielded cable
segment. Wire the cable directly from the encoder to the termination
panel.
Cable length depends on the power supply for the user-side. Voltage
at the encoder must be within the voltage requirement limits specified
E X T P O W E R
+5 V
R E T
+1 5 V
- /+R E T
+2 4
+2 4 R E T
E G N D
- 1 5 V
+5V
+5V
+15V
+/- 15V
- 15V
A C H I
A C LO
+24V
+24V R E T
A C Line
+24V P o wer S u p p ly
L1
L2
COMM
COMM
Electrical Cabinet
Ground Bus
14 AWG
14 AWG (3)
14 AWG
14 AWG
ATTENTION
!
To avoid unpredictable operation of your SLC Servo
Module, connect the +5V COMM to the +24V COMM.
If voltage sources are coming from two separate
isolated power supplies, tie the +24V return to the
+5V return.
