Publication 1746-6.1.2 - July 2000

4-2 Installing Your SLC Servo Module

To verify that you received what you ordered:

1. Check the label on each shipping carton with your order.

2. Check the items received against the bill of lading by matching

the equipment nameplate description with the material ordered.

Installing the SLC Servo
Module

The first component you install is the SLC Servo Module. After
installation, you connect the other components.

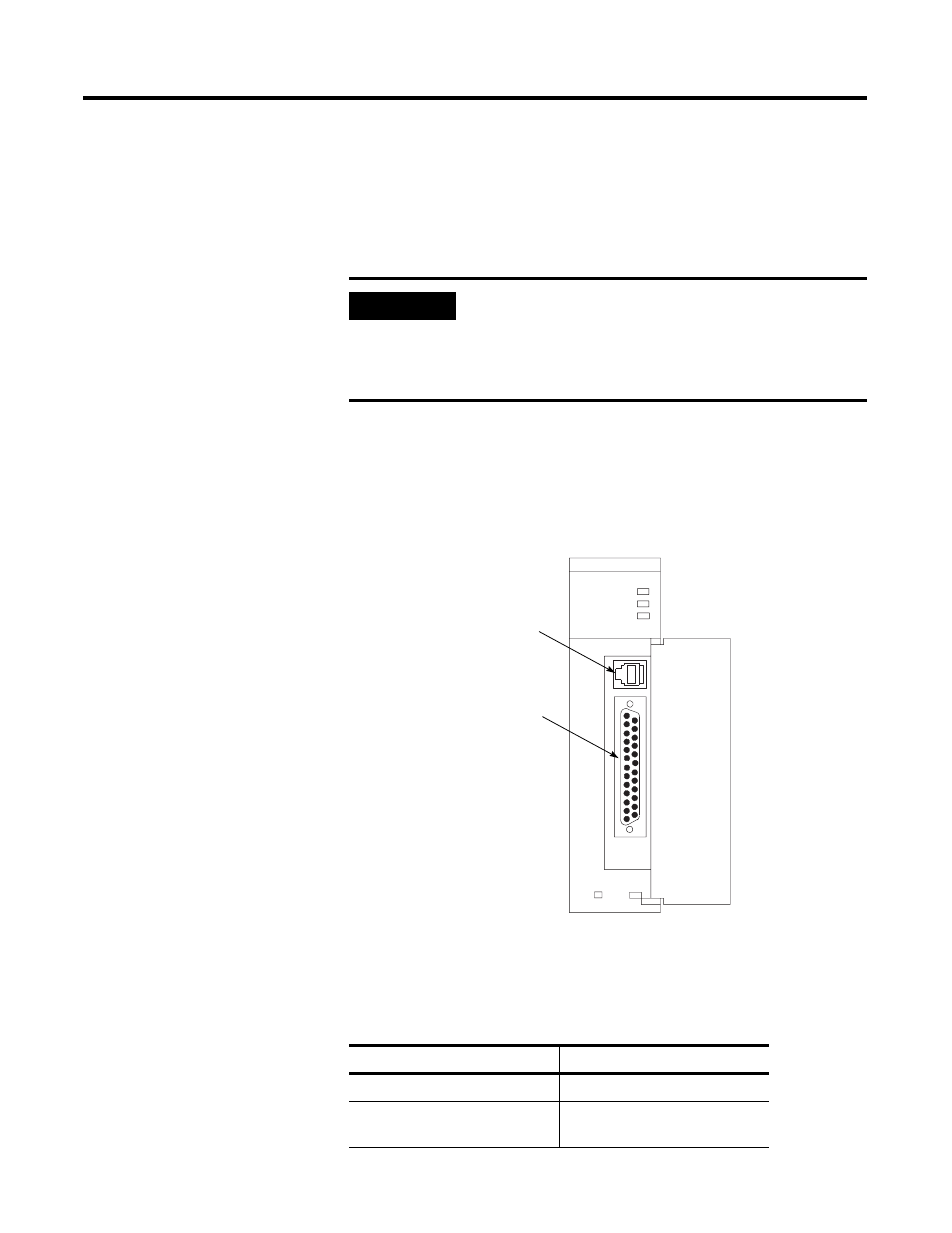

Figure 4.1 SLC Servo Module with Door Open

Note: The two switches on back are not used.

The table below provides a legend for the SLC Servo Module LEDs.

IMPORTANT

Make claims for breakage and damage, whether
concealed or obvious, to the carrier as soon as
possible after receipt of the shipment. Allen-Bradley
gives the buyer reasonable assistance in securing
adjustment for damage claims.

When:

This LED is on:

Power is applied

RUN

The feedback signal or user-side
power is lost

FDBK/U.PWR

RUN

FDBK/U. PWR

CONFIG INV

To Termination Panel

Not used
