Installing Your SLC Servo Module 4-5

Mounting the Termination
Panel

Refer to the Figure 4.3 and Figure 4.4 when mounting the 1746HT
termination panel.

To mount the 1746HT termination panel:

1. Snap the termination panel onto the DIN-type rail (1492-DR2).

2. Position an end anchor on either end of the termination panel.

3. Secure the panel by tightening the end anchor screws.

The end anchor prevents the termination panel from sliding in either
direction on the DIN rail.

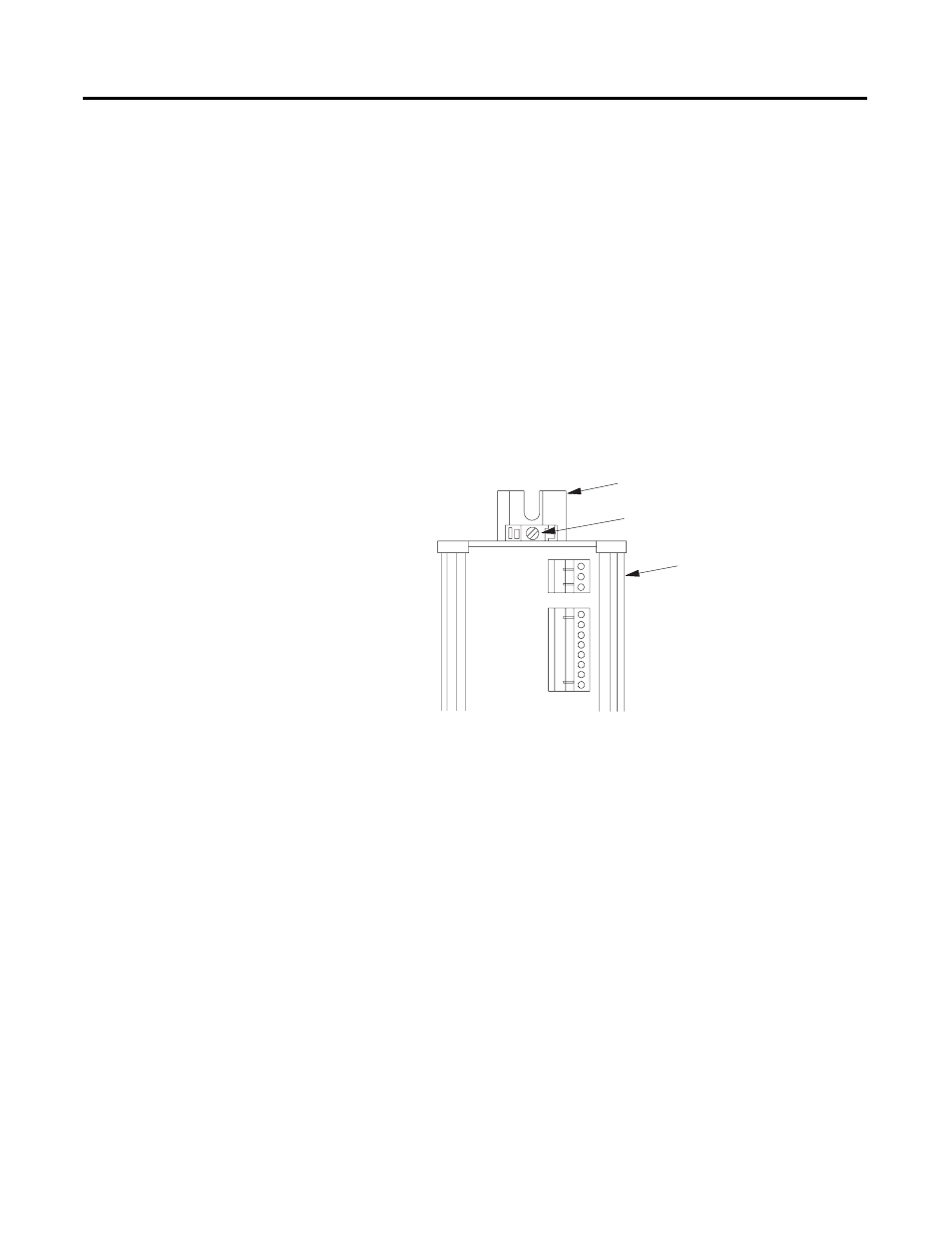

Figure 4.3 Mounting the Termination Panel

D R IV E

D R R E T

S H L D

E N C O D E R

C H A . H I

C H A . L O
A B S H L D

C H B . H I

C H B . L O

Z S H L D

C H Z . H I

C H Z . L O

E N C O D E R P O W E R

DIN Rail

End Anchor & Screw

Termination Panel
