40 Rockwell Automation Publication 1715-UM001C-EN-P - March 2014
Chapter 2 Installation Instructions
The general system layout for the 1715 Redundant I/O System consists of the
following hardware components.
1715-AENTR Adapter Redundant Module Pair
The 1715 adapter module communicates via the EtherNet/IP network to a 1756
ControlLogix controller, conveying system I/O data.

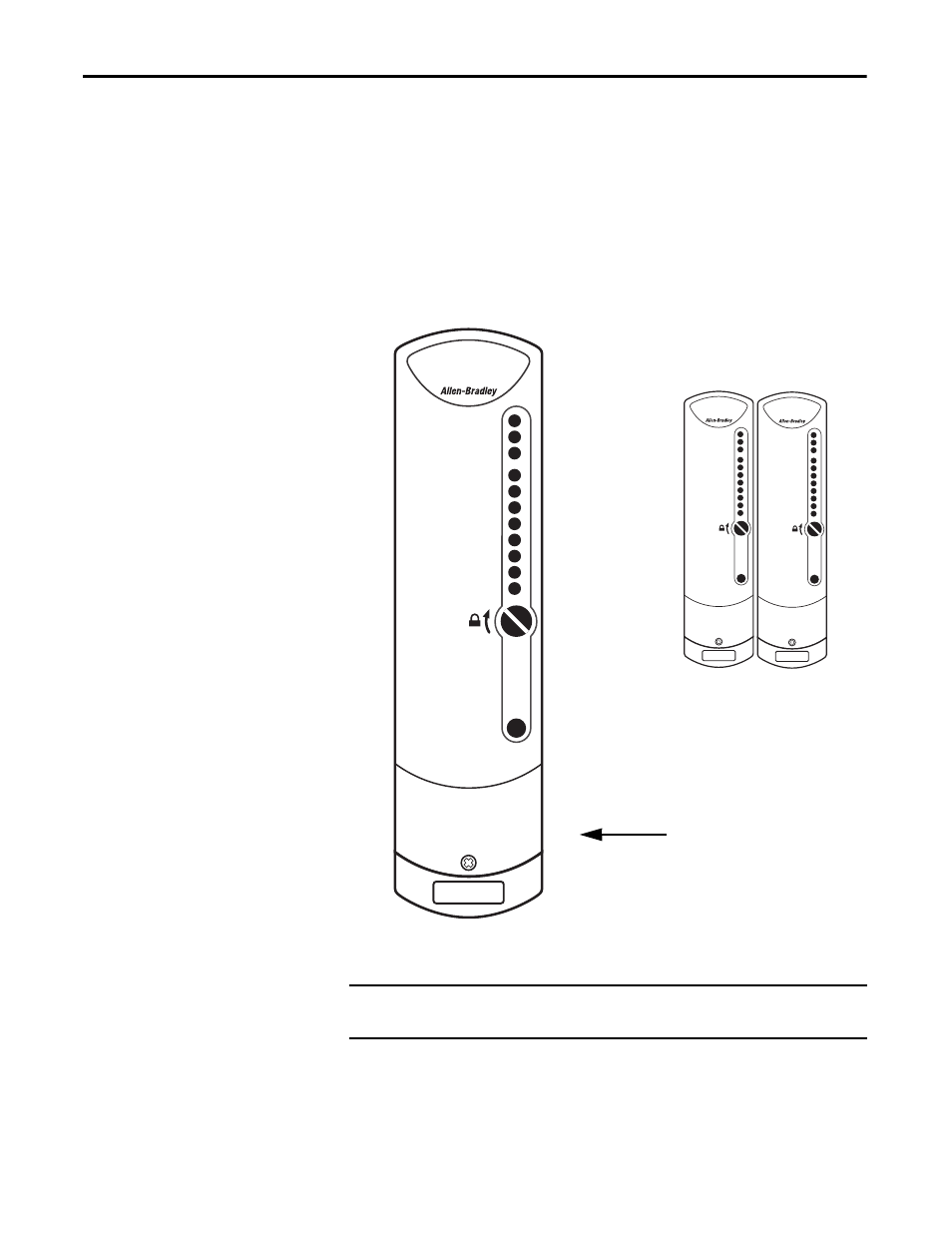

Figure 13 - 1715-AENTR Adapter Module
Rack Status
Ethernet 1
Ethernet 2
1715-AENTR
ADAPTER
Reset
Module Status
Redundancy Status
Network Status
32096-M
Do not open this module door, or plug or
insert anything into the port.
32096-M
Rack Status
Ethernet 1
Ethernet 2
1715-AENTR
ADAPTER
Reset
Module Status
Redundancy Status
Network Status
32096-M
Rack Status
Ethernet 1
Ethernet 2
1715-AENTR
ADAPTER
Reset
Module Status
Redundancy Status
Network Status
1715-AENTR Redundant
Adapter Module Pair
IMPORTANT Do not open this module door, or plug or insert anything into the port behind
the module door unless instructed to do so by technical support.
