Chapter 6 1715 Redundant I/O System in SIL 2 Safety Applications
Typical Configurations The 1715 system supports single module configurations, where it is acceptable to
either stop the system or allow the signals corresponding to that module to
change to their default fail-safe state. It also supports fault-tolerant I/O
configurations where the system is required to continue operating in the event of
a fault.
Fault tolerant systems have redundant modules that let the system continue
operation in the presence of a fault. The system fails safe if an additional fault
occurs.
All configurations can be used for safety-related applications. Choose the
appropriate configurations based on your application’s fault tolerance
requirements.
DLR Topology

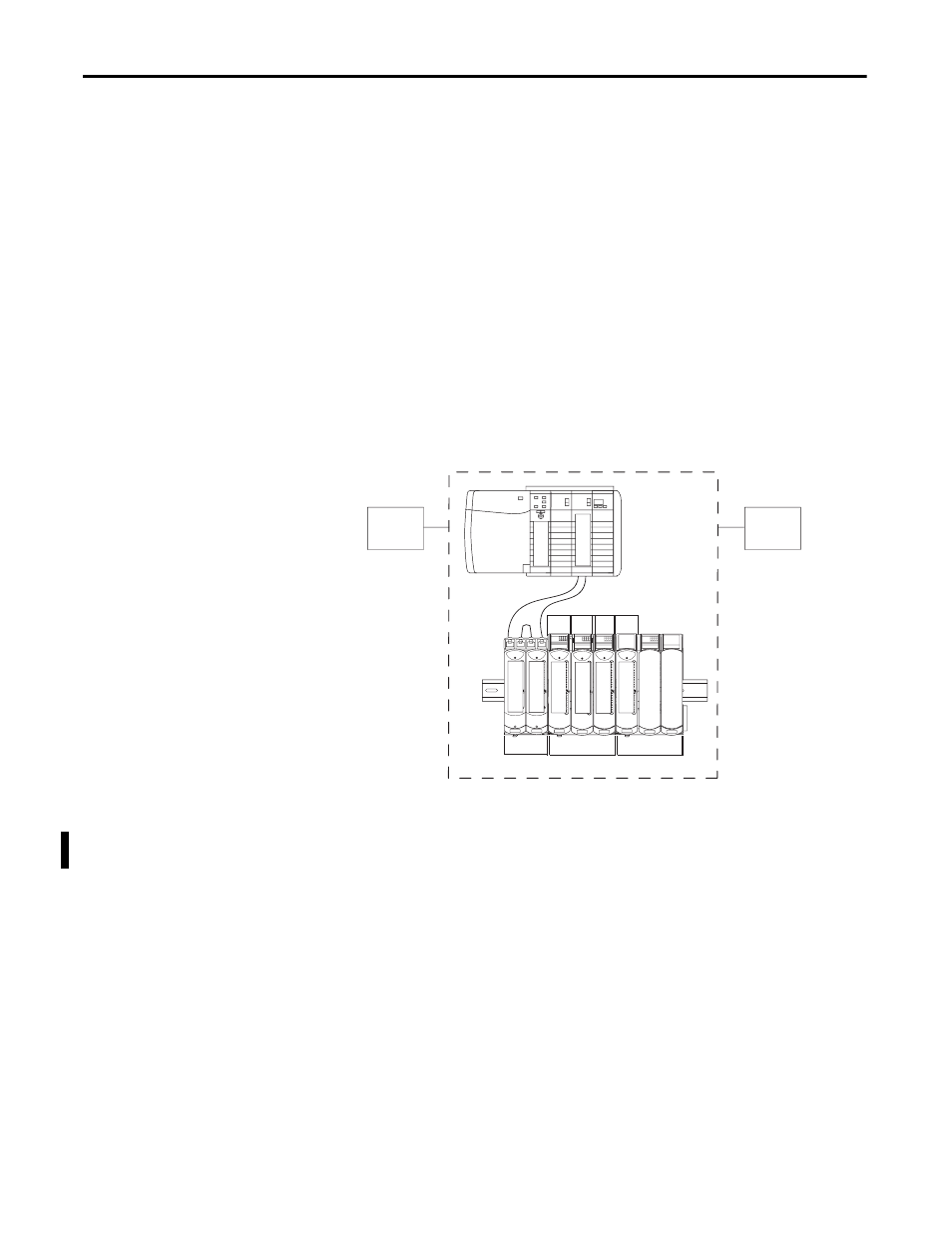

Figure 59 - Simplex DLR with a ControlLogix Controller
For duplex configurations, a SIL 2 fault-tolerant architecture has dual input, dual
adapter, and dual output modules. The input modules operate in 1oo2 (1 out of
2) under no fault conditions and degrade to 1oo1 (1 out of 1) upon detection of
the first fault in either module. The modules fail-safe if faults occur on both
modules. The adapters operate in 1oo2 under no-fault conditions and degrade to
1oo1 upon detection of the first fault. A duplex system could therefore be 1oo2
reverting to 1oo1 on the first detected fault and reverting to fail-safe when both
modules have a fault. Fail-safe is defined as the ‘de-energized’ or ‘off ’ state.
The Ethernet architecture has no affect on SIL 2 safety functions. You can use
either of these example drawings, or any other appropriate Ethernet network.
From a safety aspect, if the Ethernet packets are not sent successfully, then the
SIL 2 safety functions will go to their respective safe states.
1756-EN2TR 1756-L72
CH1 CH1 CH1 CH1 CH1 CH1
TERMINAL IDENTITY CH1 CH1 CH1 CH1 CH1 CH1 CH1 CH1
TERMINAL IDENTITY
IO BASE 1715-A310
CH1 CH1 CH1 CH1 CH1 CH1 CH1 CH1
TERMINAL IDENTITY
AOTA Dual.
CH1 CH1 CH1 CH1 CH1 CH1 CH1 CH1
TERMINAL IDENTITY
AOTA Dual.
CH1 CH1 CH1 CH1 CH1 CH1 CH1 CH1
TERMINAL IDENTITY
AOTA Dual.
1715-AENTR 1715-AENTR 1715-
OB8DE
1715-IB16D
1715-A2A 1715-A3IO
IO BASE 1715-A310
CH1 CH1 CH1 CH1 CH1 CH1 CH1 CH1
TERMINAL IDENTITY
AOTA Dual. AOTA Dual. AOTA Dual.
1715-
OF8I
1715-A3IO
1715-IF16
1715-
TASOB8DE
1715-
TASIB16D
1715-
TASIF16
1715-
TASOF8
Sensor Actuator
SIL 2 ControlLogix Safety Loop
