5-26 Specifications

Publication 198-UM001B-EN-P September 2001

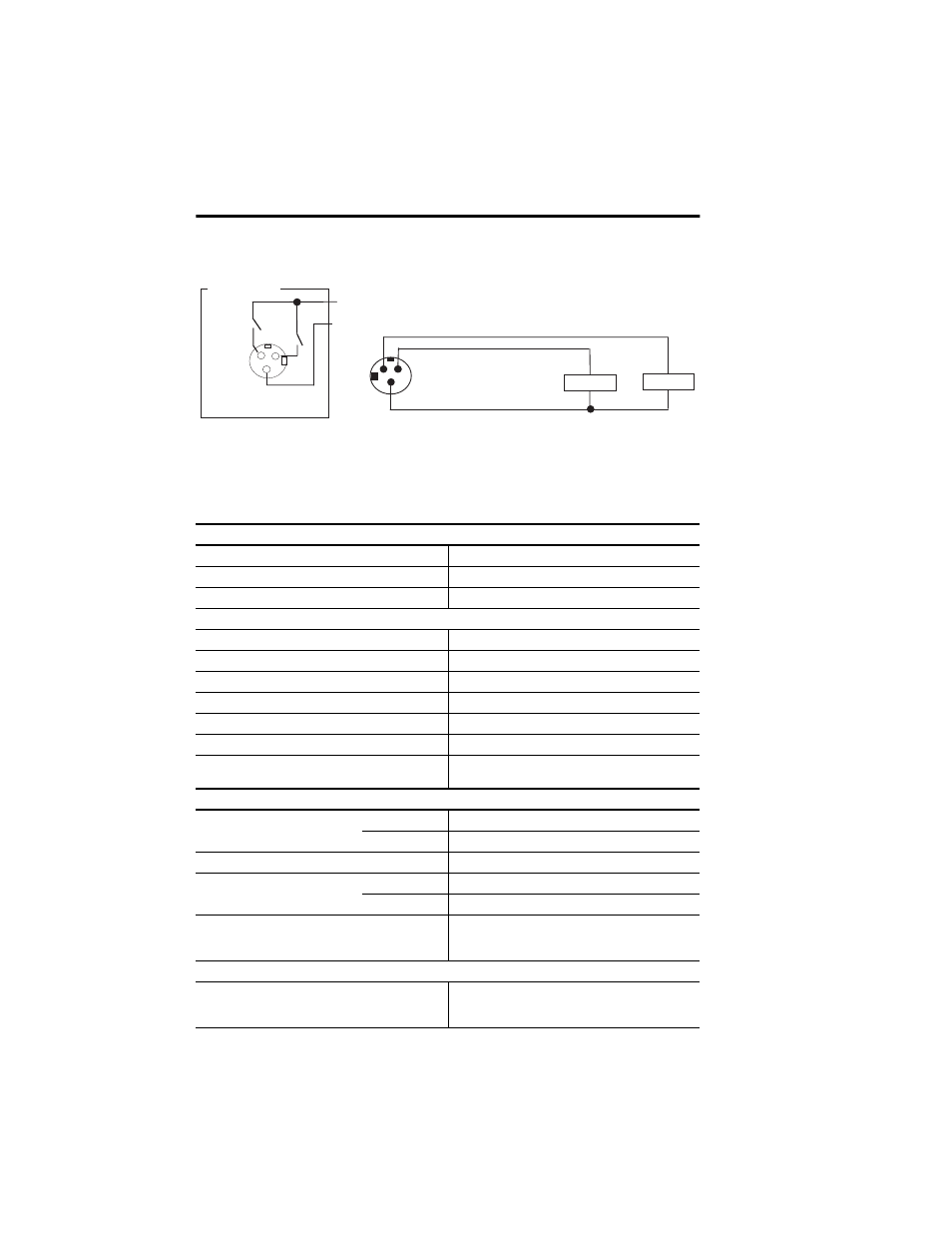

Figure 5.17 198-OW2S Electrical and Application Schematic

Table 5.R 198-OW2S Specifications

Connector (M12 Female 3-Pin)

M12 Mounting Hole

16 mm (5/8 in.)

M12 Thread

M12 x 1 mm

M12 Connector Torque

1.4 Nm (12 lb-in.)

Electrical

Module Operating Voltage Range

11…25V DC

Module Voltage Rating

24V DC

Module Current Draw

50 mA @ 24V DC

Output Voltage Rating

120V AC

Output Load Current

4 A total (Out A + Out B)

Switching Device

Relay — B300, AC15

Module Isolation

132V AC working voltage
1500V AC for 1 s

Environmental

Ambient Temperature

Operating

–25…+60

°C (–4…+140°F)

Storage

–40…+85

°C (–40…+185°F)

Relative Humidity

0…95% non-condensing

Shock

Operating

30 g peak acceleration

Non-Operating

50 g peak acceleration

Operating Vibration

10 g @ 58…2000 Hz
0.060 in. peak-to-peak displacement 2…57 Hz
Per IEC 68-2-6

Approvals

Agency Certification
(when product is marked)

cUL
UL Listed
CE marked for all applicable directives

Common

Out B

Out A

3

2

1

Lo r+ V

N or 0V

12 0V AC
or 24V DC

198-OW2S

2

1

3

Male

LOAD B

LOAD A

Cable

Female

Typical Wiring
