EXAMPLE
The following example will set the Off to On Delay of Input 2 of the AC starter to
8msec(8000
µsec) filter in the previous lineup (Figure 3.1).
For this example, we will use values from Appendix A and the above Instance table.
Class = 8
Instance = 6
Attribute = 5

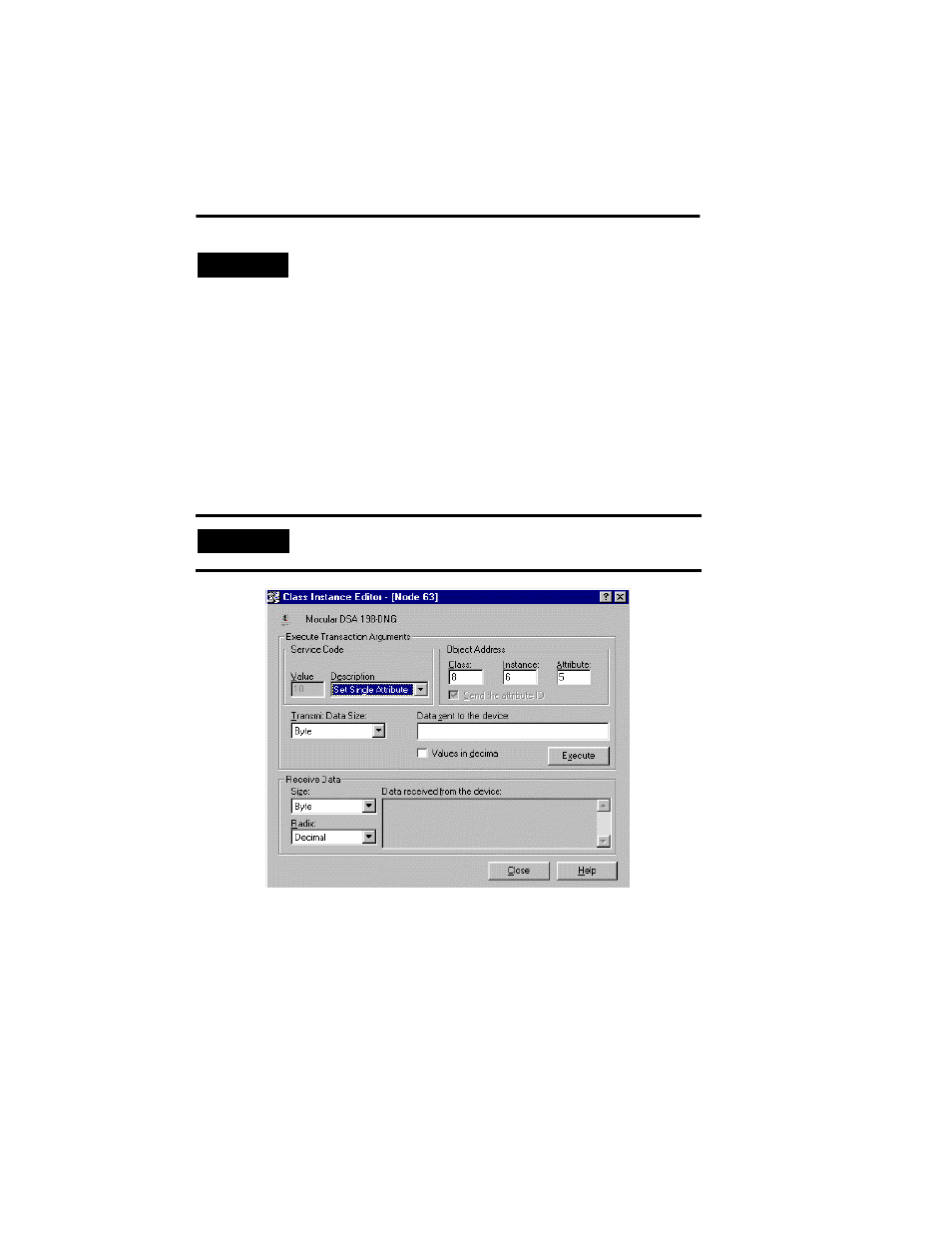

These values will be entered in their proper fields seen in the following diagram.
In the above screen, be sure that the “Data Size” option is set to “Word(2bytes)”. Data
sent to the device should be “8000” and the “value in decimal” option should be selected.
Change the description to “Set Single Attribute”, because you are setting a value and not
getting a value.
After making the desired changes press the
([HFXWH button to set the configuration. The
message “Execution was completed” should appear in the “Data received for device”
IMPORTANT
Values in the fields should be in hex.
