Ib2xob1 series a and b (dc starter module), Series a to series b changes, Ib2xob1 series a and b (dc starter module) -41 – Rockwell Automation 198x Modular DeviceNet Starter Auxiliary I/O User Manual
Page 107
Specifications 5-41
Publication 198-UM001B-EN-P September 2001
198-IB2XOB1 Series A and B (DC Starter Module)

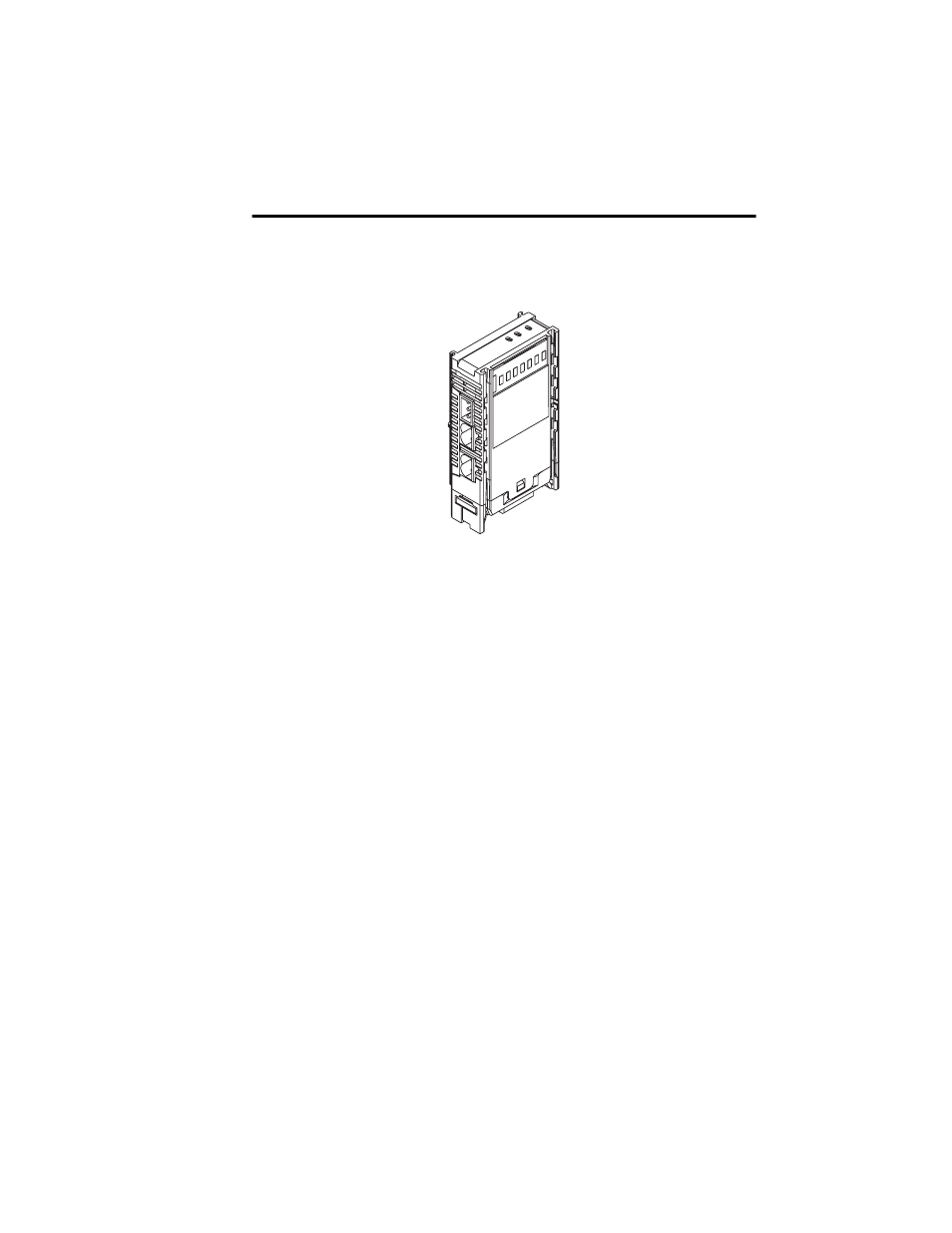

Figure 5.29 Cat. No. 198-IB2XOB1 Series A and B DC Starter Module
The DC starter module 198-IB2XOB1 is designed to control and monitor the basic
information from a DC starter. It consists of one relay output and two isolated DC inputs.
This module comes with a DIN Rail-Mount base but can be mounted next to any gland
plate-mounted device.
Series A to Series B Changes
• +V out terminal added
• Output changed from sinking to sourcing
• +V and 0V terminal swapped for consistency with other starter modules
