Rockwell Automation 198x Modular DeviceNet Starter Auxiliary I/O User Manual
Page 65
Programming 4-12
Publication 198-UM001B-EN-P September 2001
Next you will have to configure the I/O. Double click on
,2 &RQILJXUDWLRQ under the

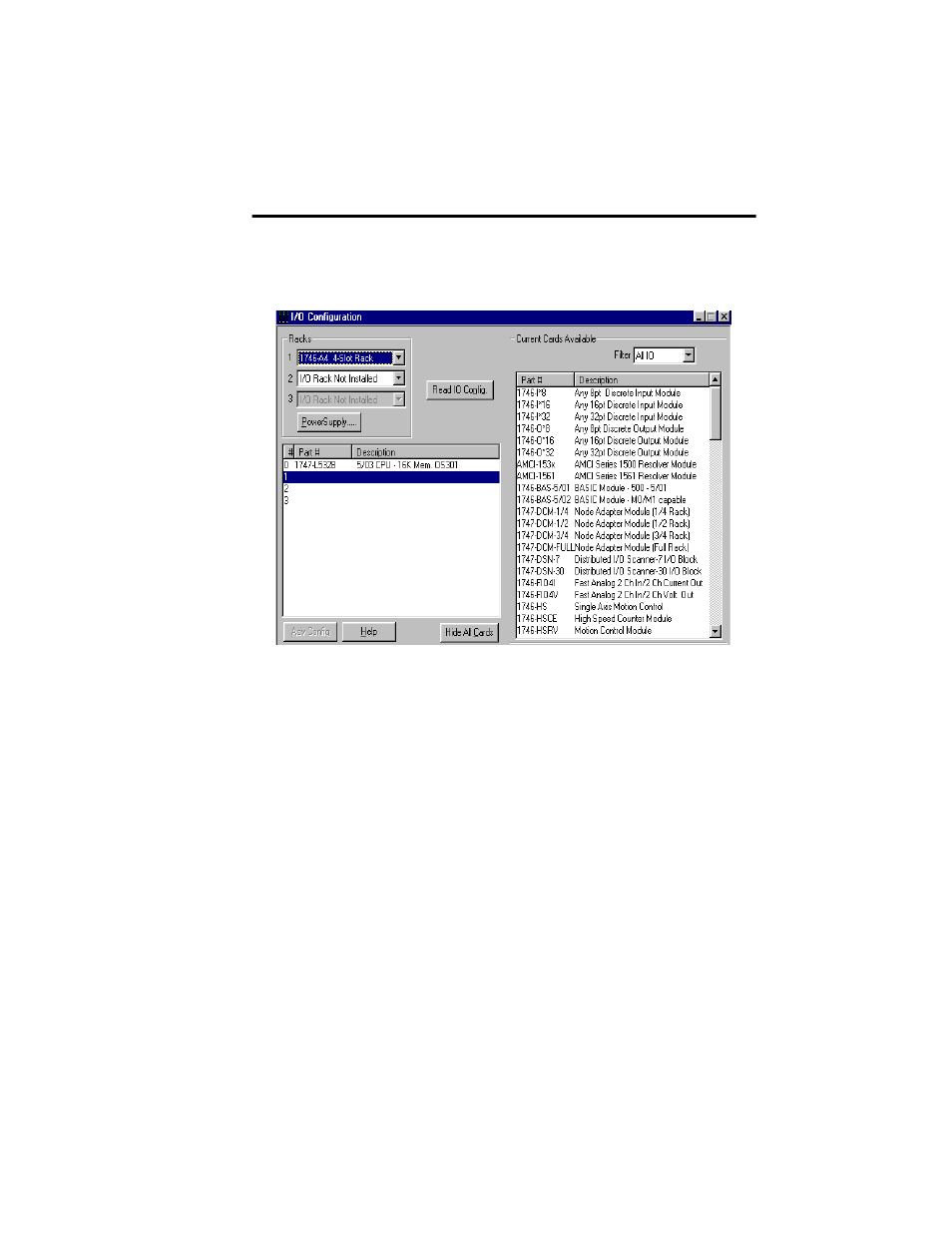

&RQWUROOHU folder on the left panel of the screen. The following screen will be displayed:
You can see from the above screen that the process card is the only slot recognized. To
acknowledge other cards in your system, highlight the appropriate card in the “current cards
available” field and drag it over into the desired slot in the lower left window. The module will
now be recognized.
