5-34 Specifications
Publication 198-UM001B-EN-P September 2001

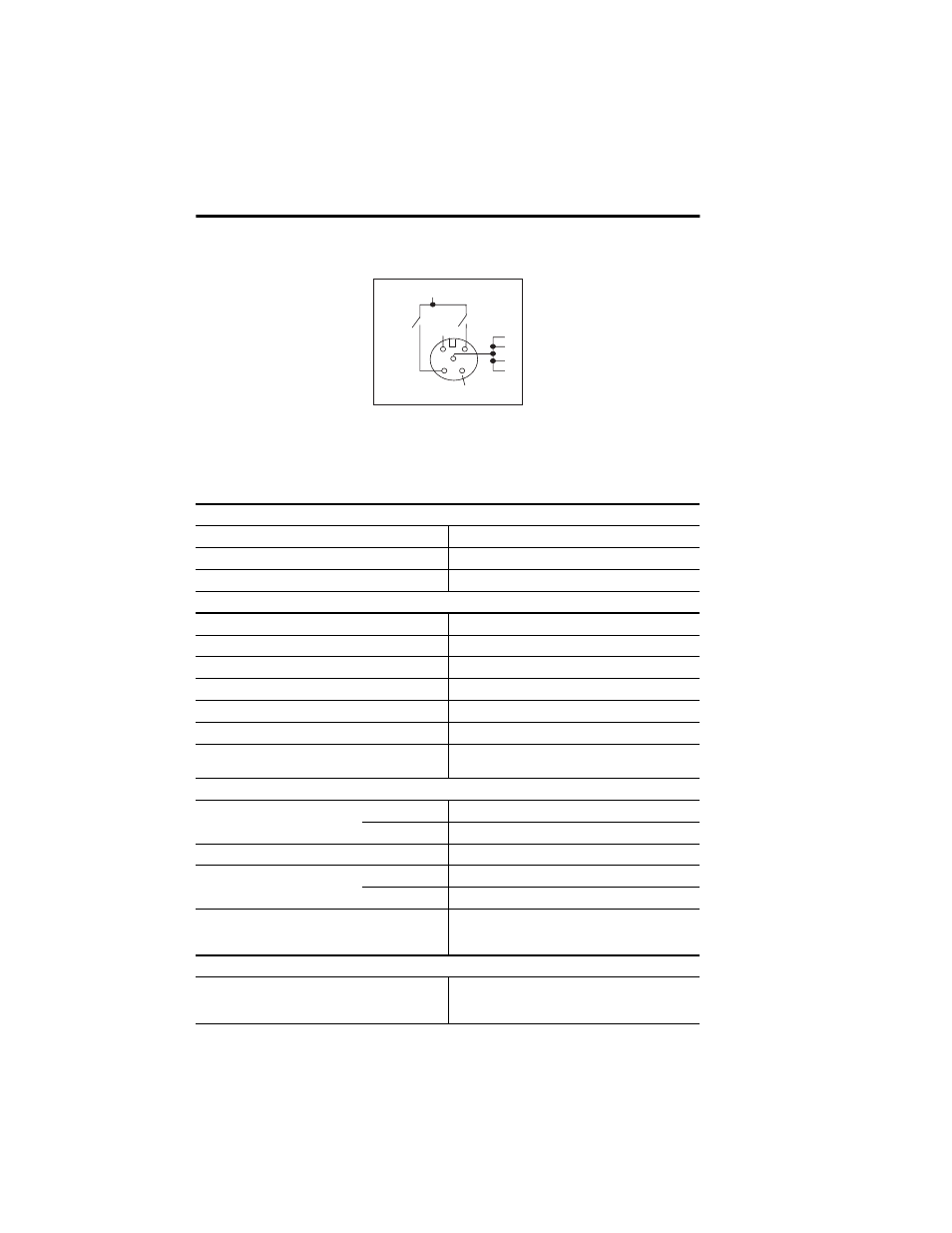

Figure 5.23 198-OW2S-Q5 Electrical and Application Schematic
Table 5.X 198-OW2S-Q5 Specifications
Connector (M12 Female 3-Pin)
M12 Mounting Hole 16 mm (5/8 in.) M12
M12 Thread M12 x 1 mm
M12 Connector Torque 1.4 Nm (12 lb-in.)
Electrical
Module Operating Voltage Range 11…25V DC
Module Voltage Rating 24V DC
Module Current Draw 40 mA @ 24V DC
Output Voltage Rating 24V DC
Output Load Current 0.5 A total (Out A + Out B)
Switching Device Relay — B300, AC15, DC13
Module Isolation 132V AC working voltage
1500V AC for 1 s
Environmental
Ambient Temperature Operating –25…+60 °C (–4…+140°F)
Storage –40…+85 °C (–40…+185°F)
Relative Humidity 0…95% non-condensing
Shock Operating 30 g peak acceleration
Non-Operating 50 g peak acceleration
Operating Vibration 10 g @ 58…2000 Hz
0.060 in. peak-to-peak displacement 2…57 Hz
Per IEC 68-2-6
Approvals
Agency Certification
(when product is marked) cUL
UL Listed
CE marked for all applicable directives
1 2
3
4
5
Not
Used
0V
24V DC
PE
PE
PE
PE
Ou t B Ou t A
Typical Installation and Wiring
