G1p (gland plates), G1p (gland plates) -67 – Rockwell Automation 198x Modular DeviceNet Starter Auxiliary I/O User Manual
Page 133
Specifications 5-67
Publication 198-UM001B-EN-P September 2001
198-G1P (Gland Plates)
Gland plates may also be referred to as cable plates. These plates are designed to cover
rectangular holes in standard enclosures and to allow easy power and signal access to the
enclosure.

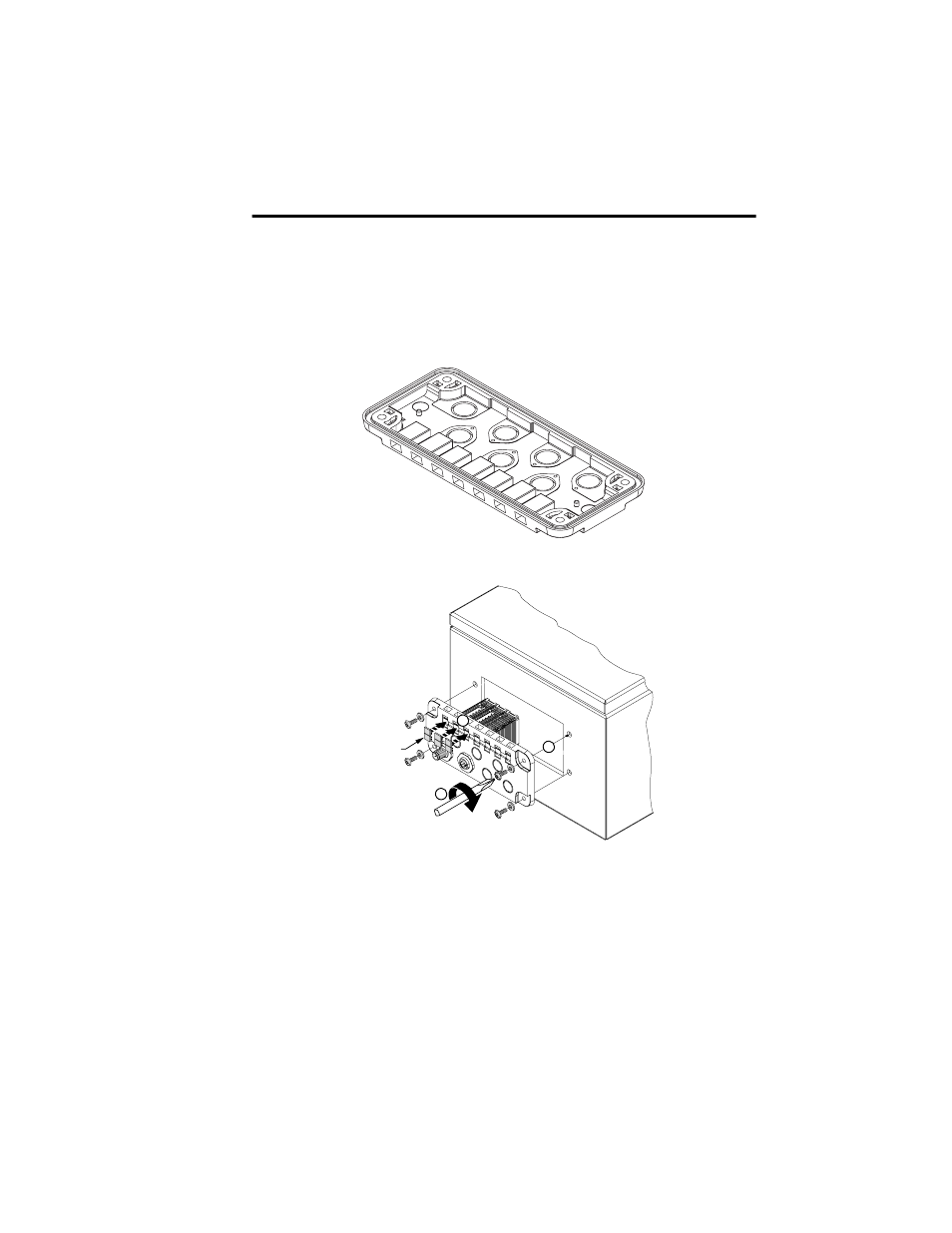

Figure 5.43 198-G1P Plastic Gland Plate, 45 mm x 133 mm
Figure 5.44 Gland Plate Mounted on an Enclosure
2
1
3
1492-SM8X9
2.25 - 2.8 N-m
(20 - 25 lb-in)
