5-70 Specifications

Publication 198-UM001B-EN-P September 2001

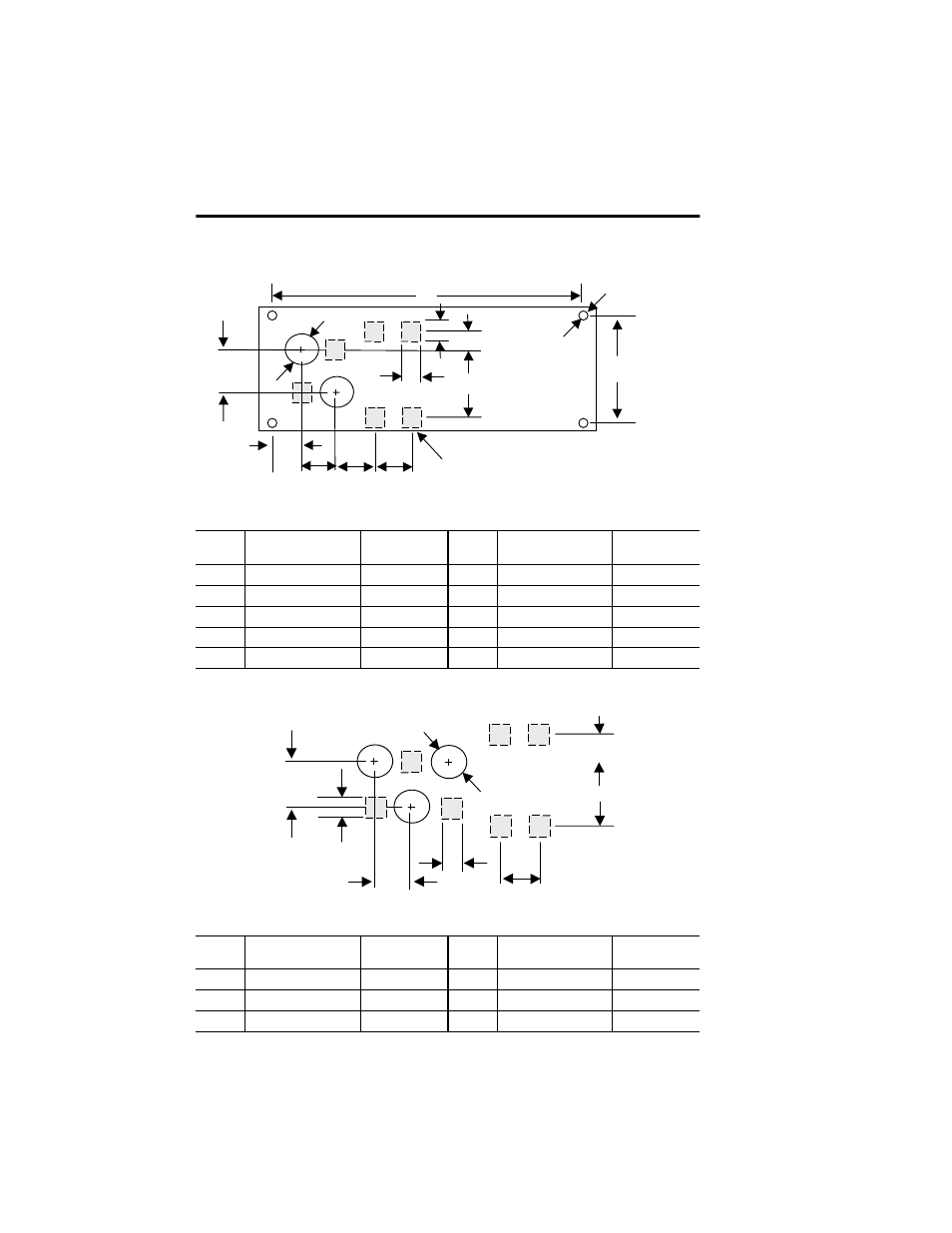

Figure 5.46 Custom Gland Plate Drill Pattern and Ground Targets

Figure 5.47 MDSA Drill Pattern for Enclosure Walls and Ground Targets

Table 5.AK Custom Gland Plate Cutout Specifications

Dim.

Measurement
mm (in.)

Tolerance
mm (in.)

Dim.

Measurement
mm (in.)

Tolerance
mm (in.)

A

22 (0.866)

± 0.1 (0.004)

F

23.37 (0.920)

± 0.2 (0.007)

B

18 (0.709)

± 0.1 (0.004)

G

5.20 (0.205)

± 0.2 (0.007)

C

16 (0.630)

± 0.2 (0.007)

H

4.5 (0.177)

± 0.2 (0.007)

D

154 (6.063)

± 0.2 (0.007)

I

31 (1.220)

± 0.2 (0.007)

E

56.35 (2.218)

± 0.2 (0.007)

J

9 (0.354)

± 0.2 (0.007)

Table 5.AL MDSA Cutout Specifications

Dim.

Measurement
mm (in.)

Tolerance
mm (in.)

Dim.

Measurement
mm (in.)

Tolerance
mm (in.)

A

22 (0.866)

± 0.2 (0.007)

D

4.5 (0.177)

± 0.2 (0.007)

B

18 (0.709)

± 0.2 (0.007)

I

40 (1.575)

± 0.2 (0.007)

C

16 (0.630)

± 0.2 (0.007)

J

9 (0.354)

± 0.2 (0.007)

B

A

C

D

E

F

G

Ground contact area. Must be clear of
paint or any other nonconductive material

H

H

J

I

B

B

D

C

B

A

D

J

I
