3-12
Publication 198-UM001B-EN-P September 2001

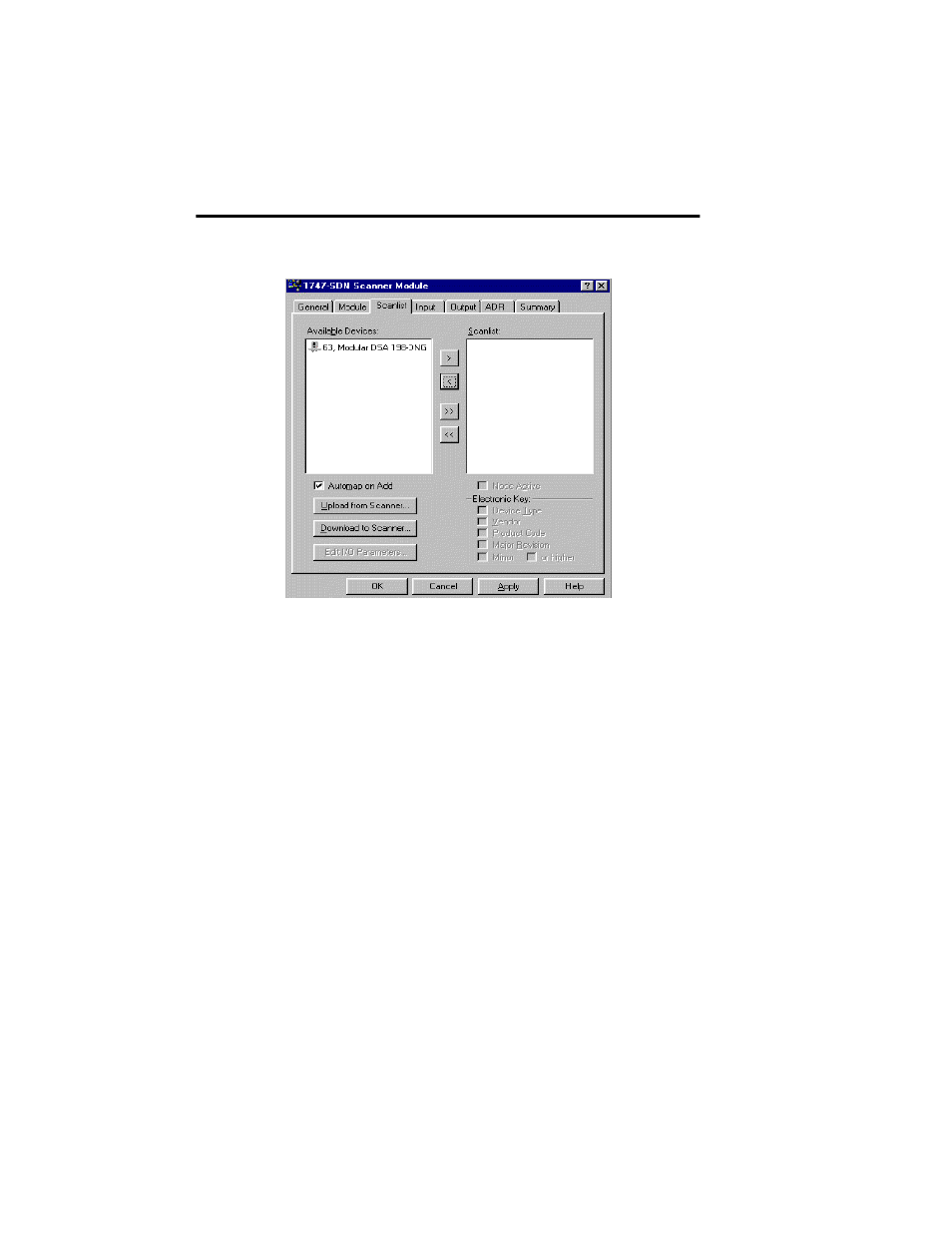

2. When the uploading is completed the following screen will appear:
3. There is a list that contains all of the available devices in the scanlist screen. Highlight
the device that is to be mapped. For our purposes we will select the MDSA from the
Available Devices box and press the “>” button. After RSNetworx updates the changes,
the MDSA device should appear in the Scanlist box.
