Rockwell Automation 198x Modular DeviceNet Starter Auxiliary I/O User Manual
Page 33
3-13
Publication 198-UM001B-EN-P September 2001

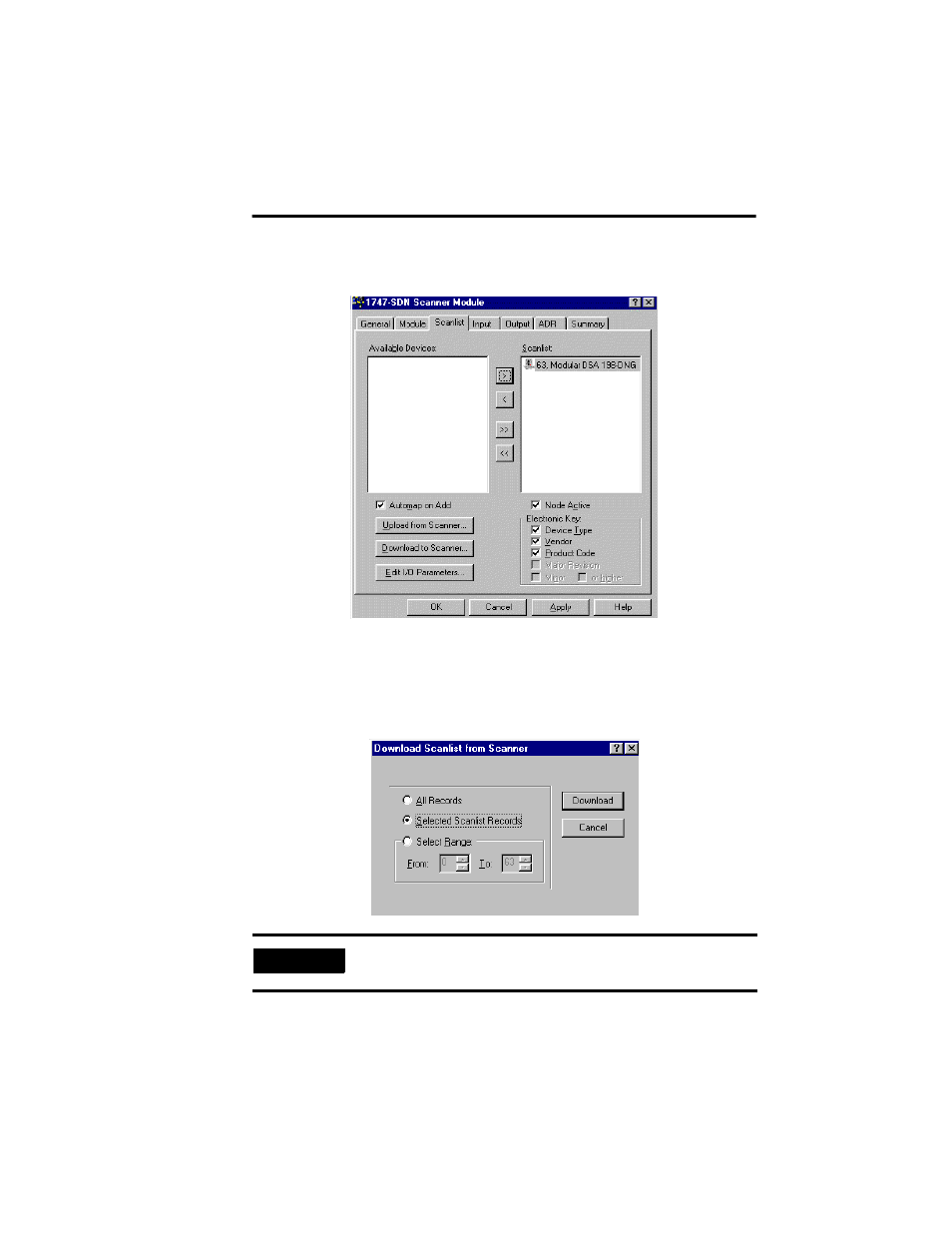

4. Once the MDSA appears in the Scan list box, Select the Download to Scanner button.
The following screen will appear:
5. Select Selected Scanlist Records to select records that refer to the device that is
highlighted, (in this case, the MDSA). After selecting the Selected Scanlist Records , click
the
'RZQORDG button. After RSNetworx is finished downloading to the scanner,
press the
$SSO\ button. The user will be prompted to download the changes to the
device. Select
\HV to allow changes to download. Then select 2..
IMPORTANT
Parameters can not be changed once a device has been added to the
scanlist.
