Product Overview 1-2
Publication 198-UM001B-EN-P September 2001

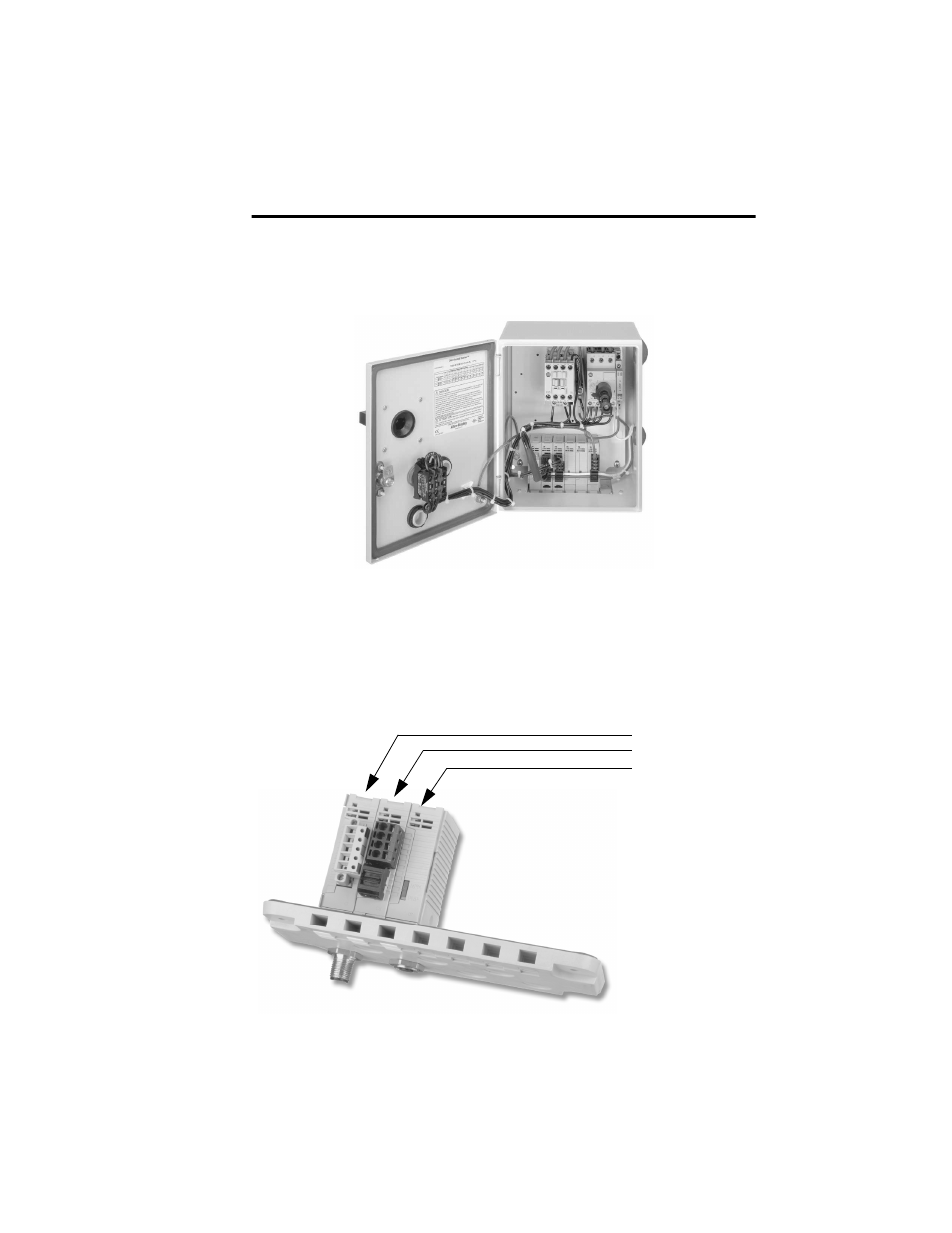

Figure 1.1 Typical Distributed Starter — Modular-DSA I/O System Modules
Mounted on a Gland Plate in an Enclosed Combination Motor Starter
The Modular DSA I/O System can be mounted traditionally on a DIN Rail or on a Gland
Plate to accrue benefits of wire simplification.
The Modular DSA I/O System mounted to a gland plate allows for easy connection from
outside the enclosure for DeviceNet, standard sensors, and other auxiliary devices via M12
micro quick-disconnect connectors.
Figure 1.2 Modular DSA I/O System Mounted on a Gland Plate
'1*
,%;2: RU VLPLODU
,%6
