Page 121
Specifications 5-55
Publication 198-UM001B-EN-P September 2001
198-IB2XOB5S Series A (Drive Preset Speed Module)

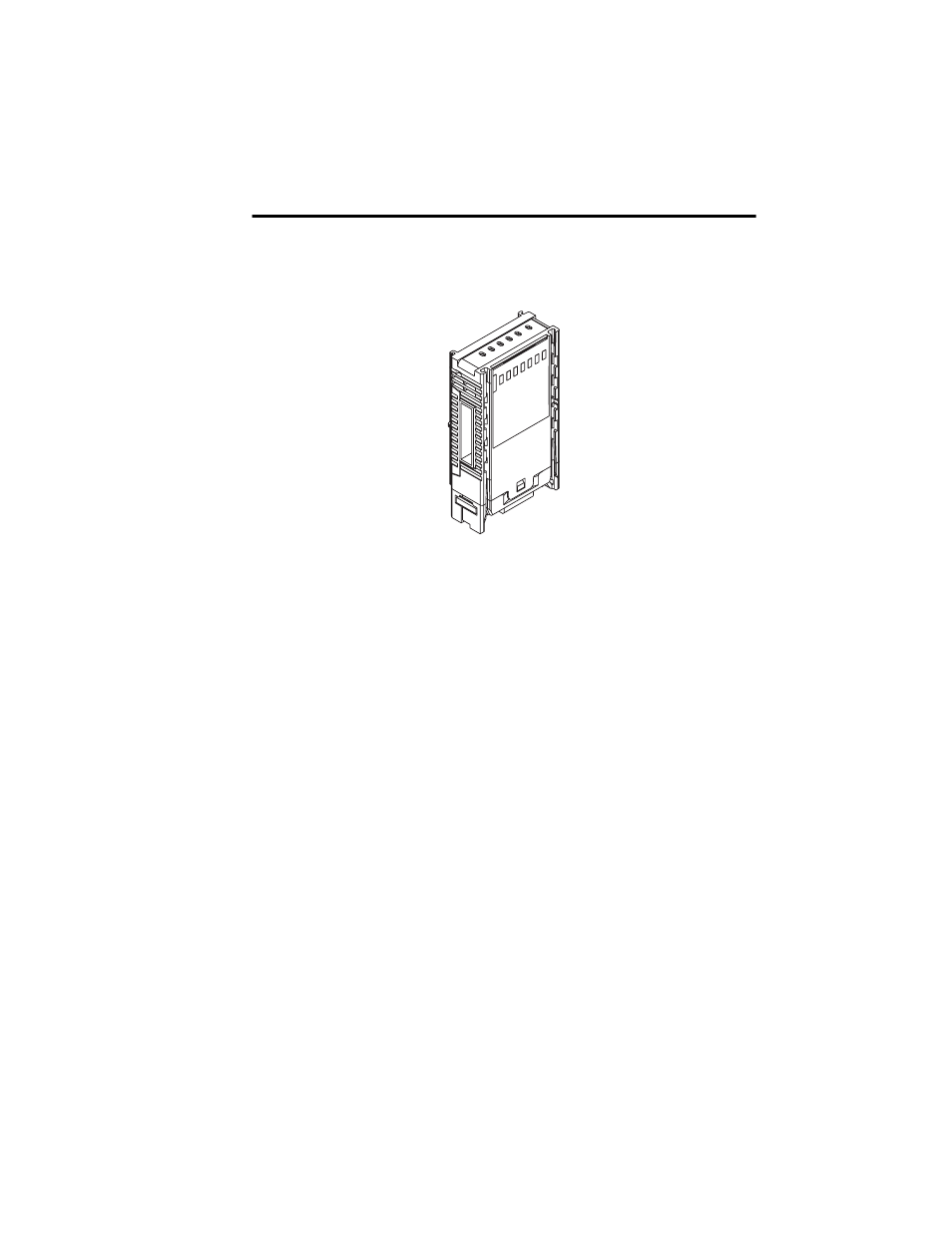

Figure 5.39 198-IB2XOB5S Series A Drive Preset Speed Module
The Preset Speed module 198-IB2XOB5S is specifically designed to work with the
Bulletin 160 Drive. The module has five open-collector outputs and two isolated DC inputs,
which are powered from the DeviceNet +24V via a DC-to-DC converter. The DC-to-DC
converter provides isolation between the inputs and outputs, and the DeviceNet power. IN1
is intended to bring back the status of the relay of the drive, while IN2 is intended to bring
back the status of the disconnect means.
