5. Choose the desired node address and click the $SSO\ button. Click the ([LW button.
The unit will then reset.
6. Re-browse the network to establish a connection with the new address.
The final way to set the unit’s node address is by directly setting the node address switches
found on the DeviceNet Control Module. The factory-default setting is still node address 63.
DeviceNet Module Configuration Parameters
The following parameters are defined in the EDS files and appear in a Device Parameter tab
of the RSNetworx. To invoke a Device Parameter window
:

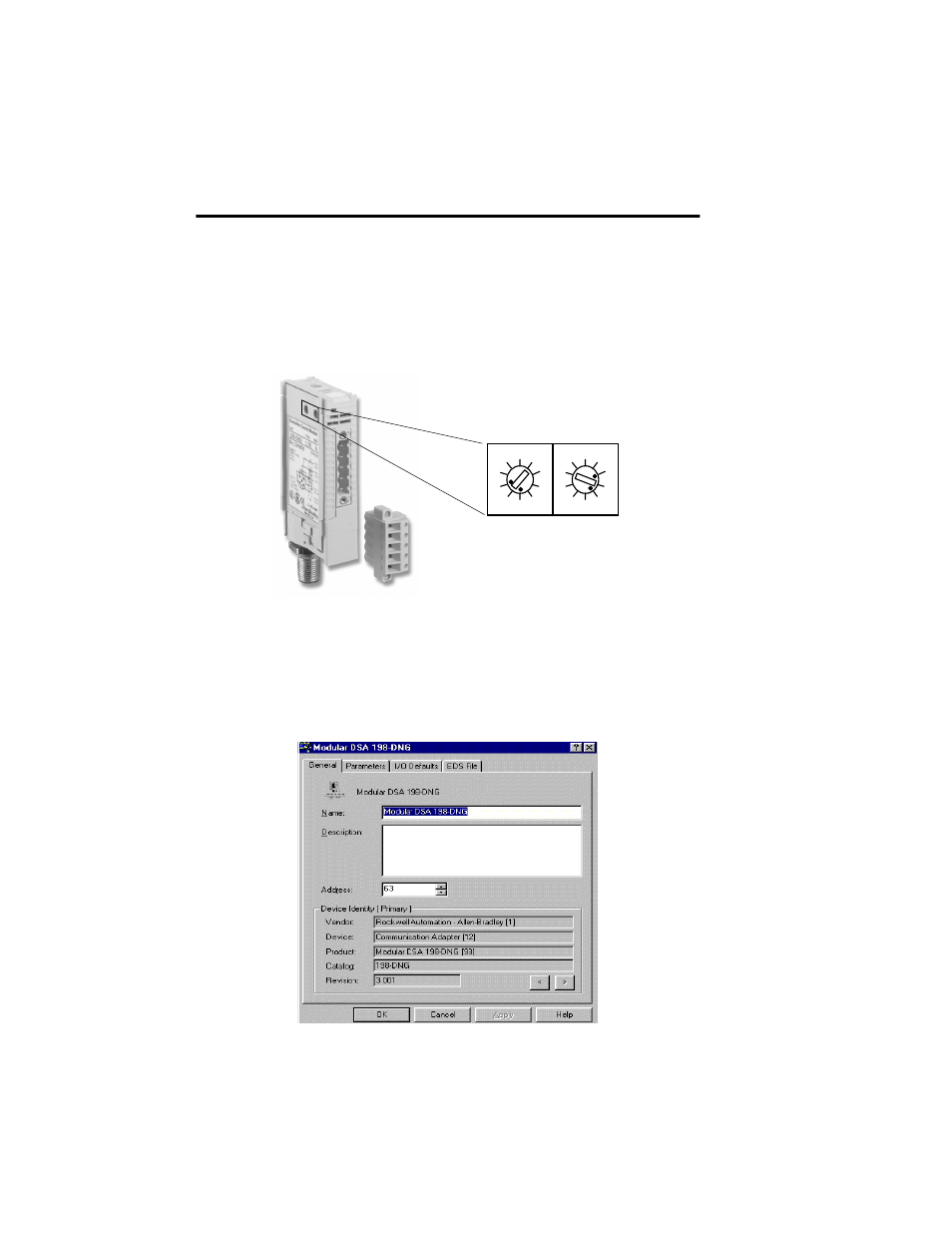

1. Double-click on the device. The following window will appear:
0
4 6
8 2
0
4 6
8 2
Node Address
MSB LSB
Address 63 Shown
