Specifications 5-69

Publication 198-UM001B-EN-P September 2001

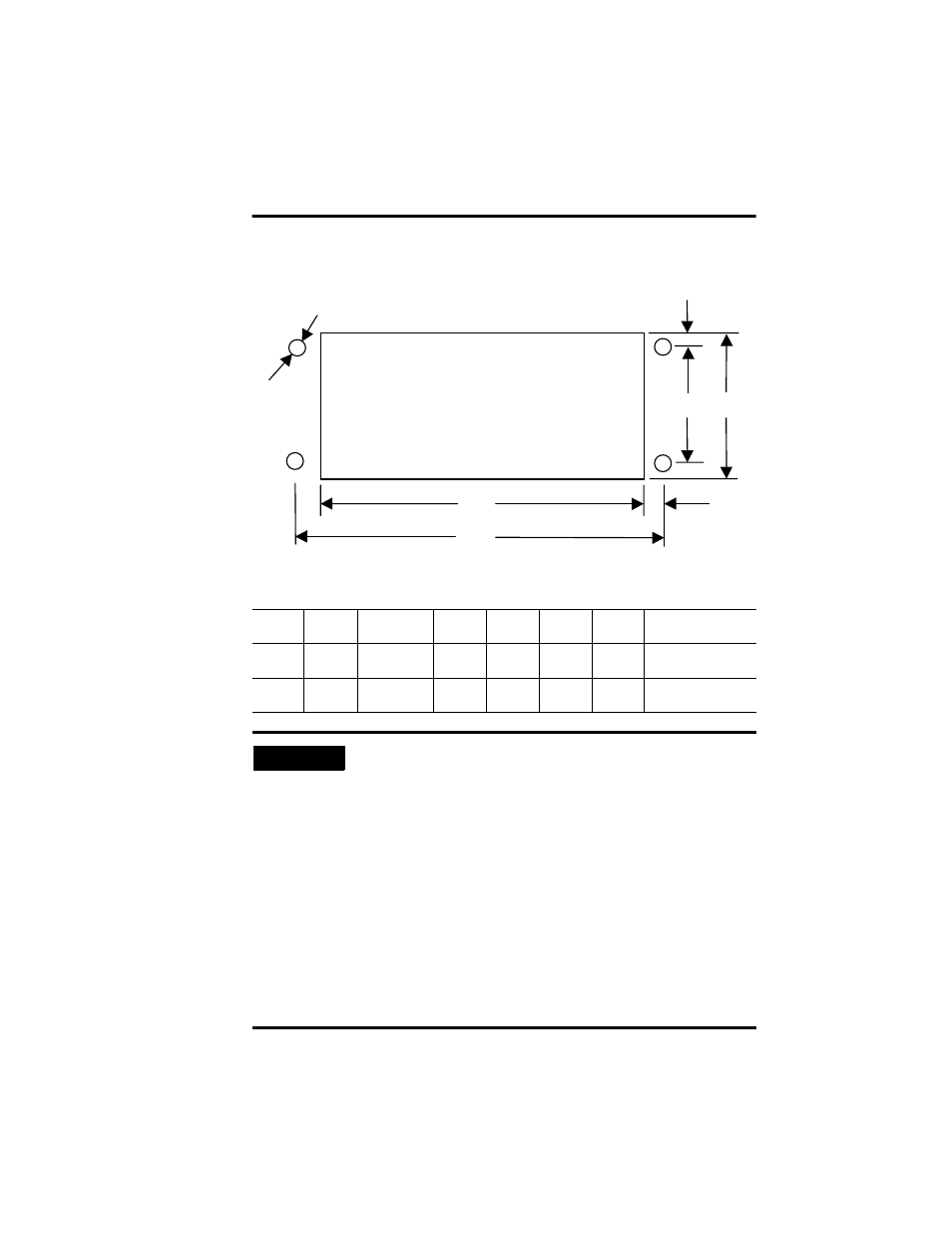

Figure 5.45 Gland Plate Cutout Specifications

Table 5.AJ Gland Plate Cutout Specifications

Dim.

mm
(in.)

Dim.

mm
(in.)

Dim.

mm
(in.)

Dim.

mm
(in.)

A

130
5.12

C

12.15
0.48

E

64
2.52

G

4.57
0.18 (#15 Drill)

B

154.3
6.07

D

56.35
2.22

F

4.325
0.17

IMPORTANT

• While use of the Rockwell Automation gland plates makes

achieving an IP66 or NEMA 4 rating easy because of its inherent
seal, it can also be achieved by meeting the specific guidelines
below. If a Greenlee #730-5/8 punch or hole saw is used to make
holes, these guidelines will be difficult to meet. The enclosure
may have an IP20/NEMA 1 rating.

• Custom gland plates can be constructed using machine shop

tools to achieve an acceptable hole-pattern per Custom Gland
Plate Drill Pattern and Ground Targets. Alter
natively, a hole
pattern can be put in an enclosure wall using MDSA Drill Pattern
for Enclosure Walls and Ground Targets.

• On a self-implemented gland plate or enclosure wall hole pattern,

care must be taken to ensure the integrity of the seals for an IP66
or NEMA 4 rating.

A

C

B

D

E

F

G (4 Places)
