3-15

Publication 198-UM001B-EN-P September 2001

To register a device you must first obtain the EDS file from the above web page. After
obtaining the files do the following:

1. From the

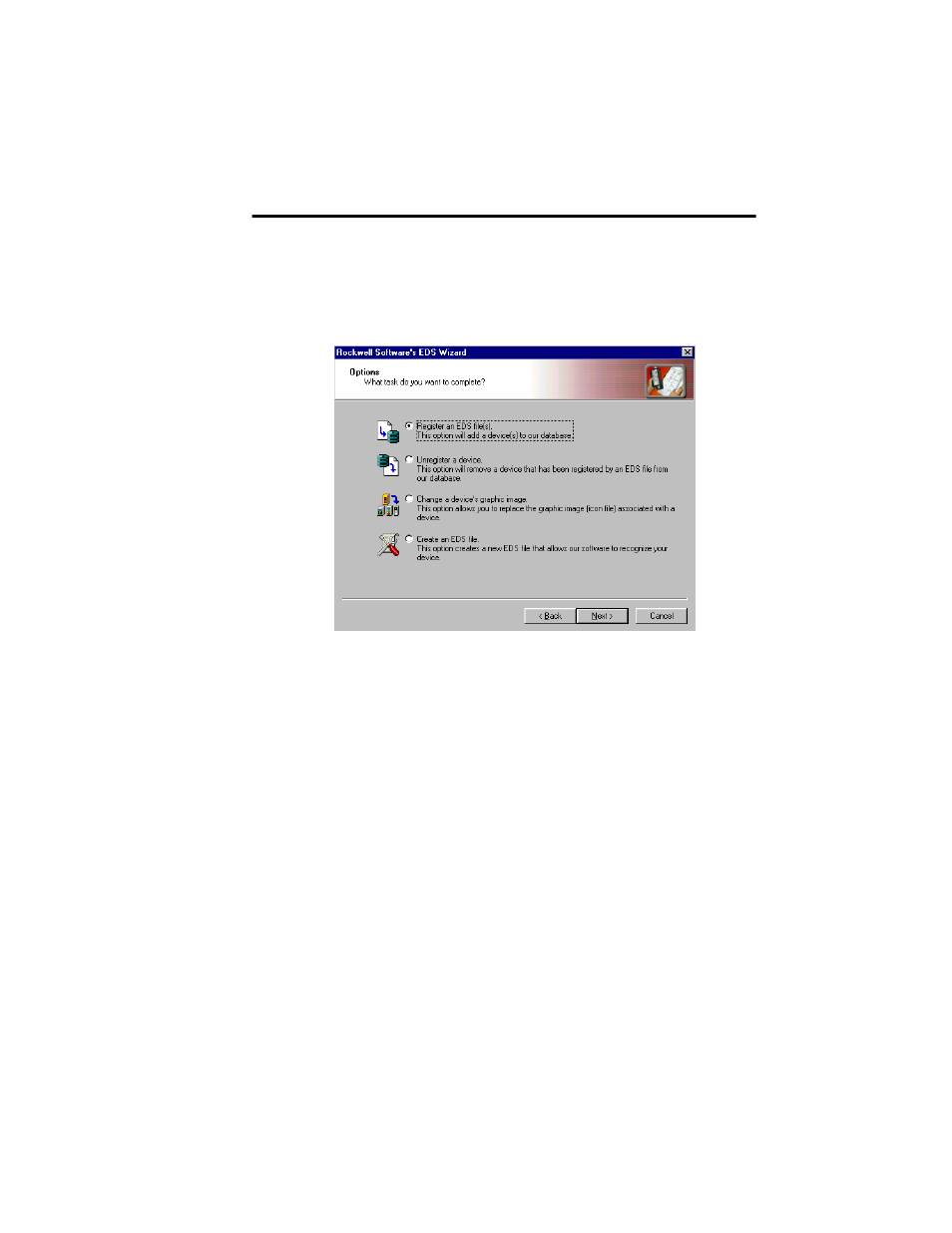

7RROV menu, choose ('6 :L]DUG and click on the 1H[W button. The

following screen will appear:

2. From the above screen select the

5HJLVWHU DQ ('6 ILOHV and click 1H[W button.
