4-3 Programming

Publication 198-UM001B-EN-P September 2001

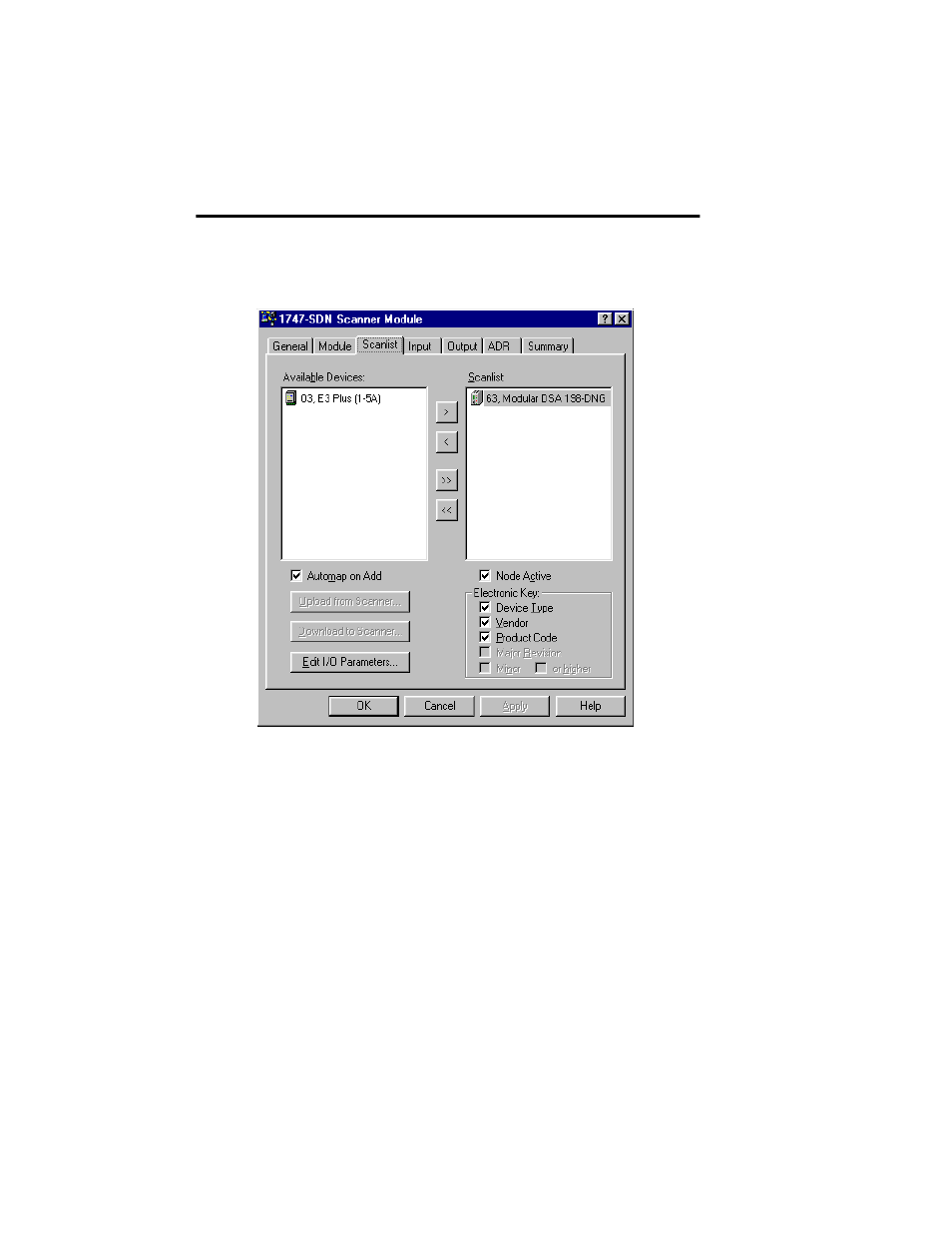

To map the assemblies to the SLC, we first double click on the scanner icon in RSNetworx
and press the Scanlist tab. The following screen will appear:

You must first map the MDSA to the SLC by following the procedures outlined in Chapter 3
(Mapping to Scanner).
