Cos mask parameter, Cos mask parameter -19 – Rockwell Automation 198x Modular DeviceNet Starter Auxiliary I/O User Manual
Page 39
3-19
Publication 198-UM001B-EN-P September 2001
COS Mask Parameter
Double-click on the Modular DSA device to get to the device parameters menu, which was
described in the previous section.(DeviceNet Module Configuration parameters)

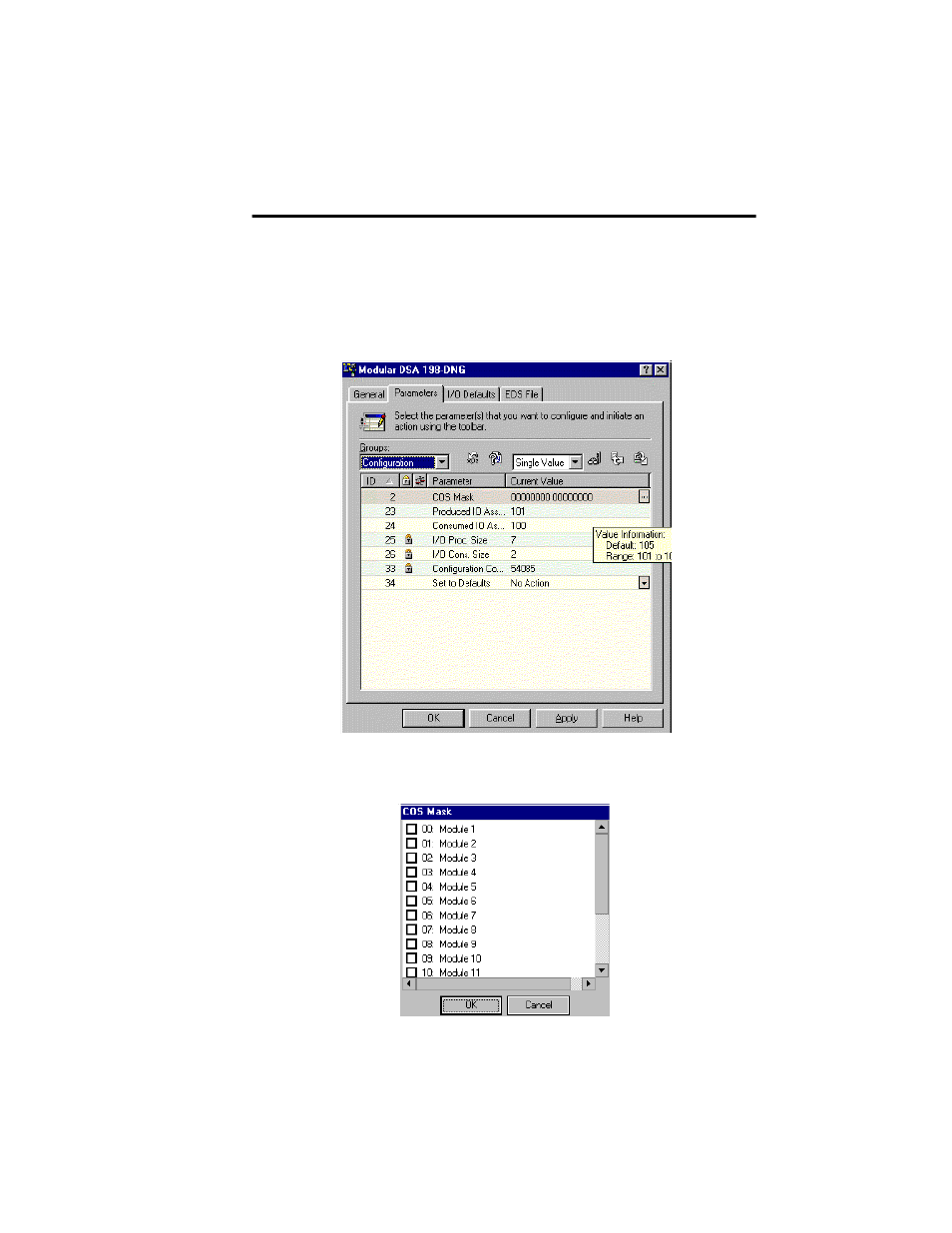

1. In Groups select the Configuration group; you will see the following screen:
2. To change the settings of the COS Mask Parameter, click the pull-down tab on the
parameter. The following screen will appear:
