HEADER OPERATION – A SERIES
169304
91
Rev. C

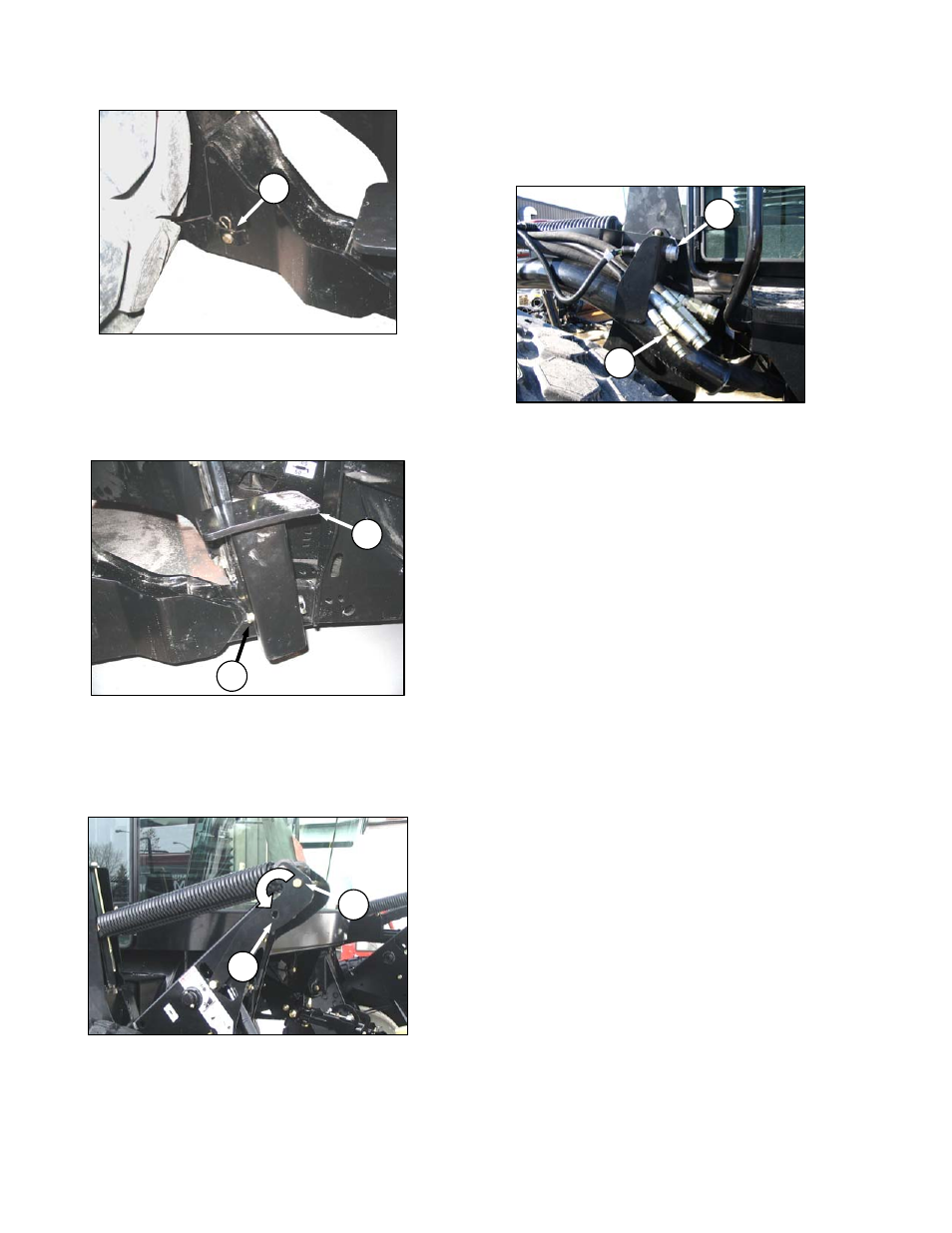

g. Install pin (A) through each boot and foot and
secure with hairpin..
IMPORTANT
Ensure pin (A) is fully inserted and hairpin
is installed behind bracket.
h. Remove lynch pin from pin (J) in stand (K).
i. Hold stand and remove pin (J).
j. Reposition stand to storage position by inverting
stand and re-locating on bracket as shown.
Reinsert pin (J) and secure with lynch pin.
k. Remove pin (L) from storage position in linkage
and insert in hole (M) to engage float springs.
Secure with lynch pin.
l. Disengage lift cylinder stops.
m. Start engine, and activate header lift cylinder
switch on GSL to lower header fully. Stop
engine and remove key.
n. Connect header drive hydraulics (N) and
electrical harness (O) to header. Refer to Auger
Header Operator’s Manual.
J
K
M
L
N
O
A
