OPERATOR’S STATION
169304
39
Rev. C
5.18.5 Cab Display Module (CDM)
Programming
The monitoring system requires programming
for each header and the
header must be
attached to the windrower. Programming the
system may be accomplished with or without the
engine running. If the engine is running, the
transmission must be in neutral. If the engine is
not running, the ignition must be on. Exit
programming mode at any time by pressing the
PROGRAM switch or by turning off the ignition.
The system only needs to be programmed once
for each header. The operator may make
changes later on to a particular setting to suit
windrowing conditions or modifications to the
machine. Most functions have been pre-
programmed at the factory but can be changed
by the operator if required.
Proceed as follows to program the CDM:
IMPORTANT
Header must be attached to the
windrower. See paragraph 6.5, & 6.6.
a. Turn ignition key to RUN, or start the engine.
Refer to paragraph 6.3.5 Engine Operation.
b. Press PROGRAM and SELECT on CDM to
enter programming mode.
c. Press SELECT. TRACTOR SETUP? is
displayed on upper line.
d. Press and then SELECT.
e. HEADER TYPE? is displayed. DRAPER is
flashing on lower line.
f. Press or to change value on lower
line.
g. Press SELECT.
h. TILT CYL INSTALLED? is displayed.
i. Press or to change value on lower
line.
j. Press SELECT to advance to the next L1 item
and press arrow keys to change values.
k. Press PROGRAM to exit programming mode
when finished entering desired values.
Refer to Detailed Programming Instructions on
following pages.
NOTE
Contact your dealer for information
regarding software updates to the
electronic modules. Your dealer will have
the necessary interface tools and access
to the latest software upgrades.

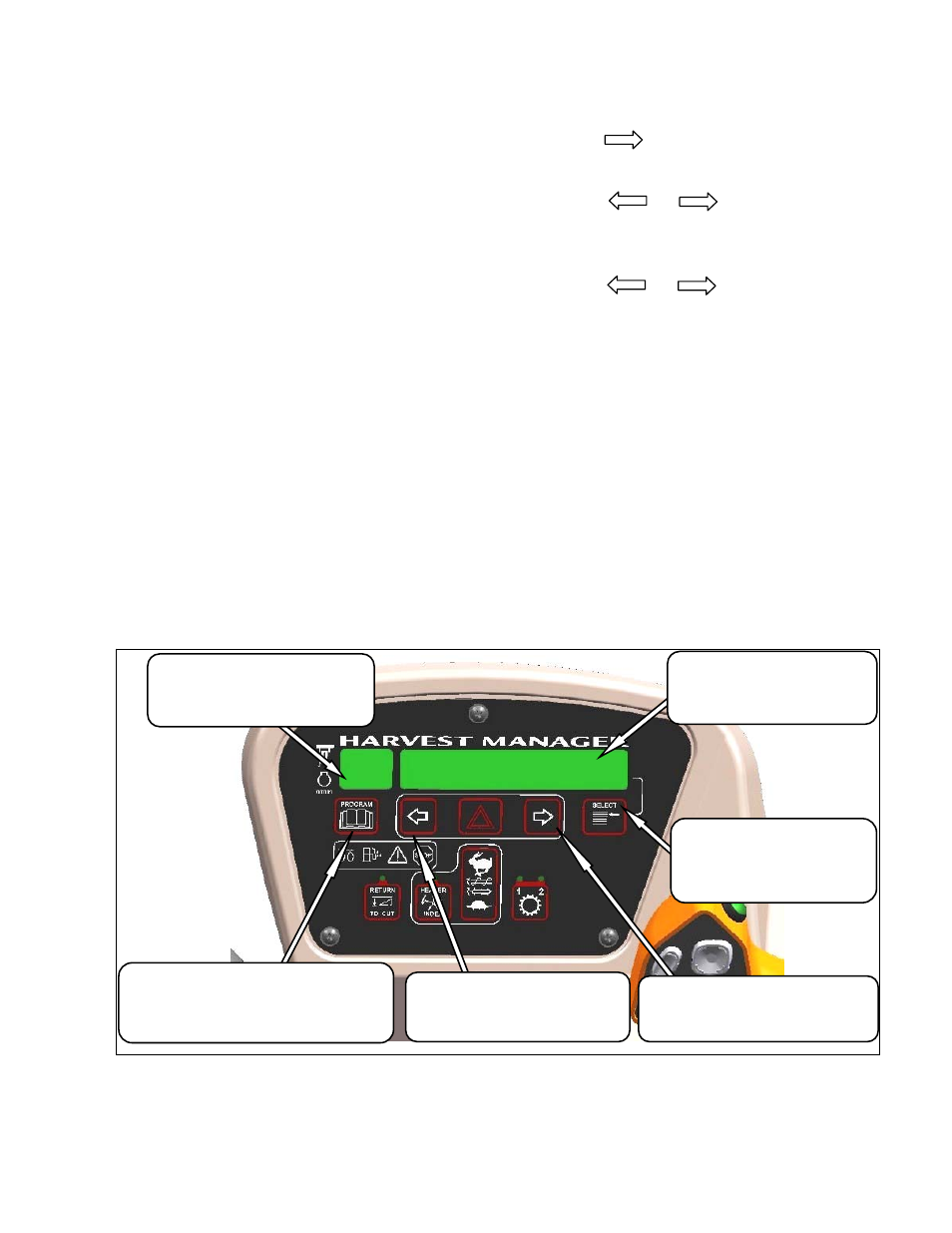

* Fast scroll applies only when changing OVERLOAD PRESSURE, and TIRE SIZE.
MENU ITEM SCROLL BACKWARD
Displays Value Under Menu Item
Push To Scroll Backward.
Keep Depressed For Fast Scroll. *
MENU ITEM SCROLL FORWARD
Displays Value Under Menu Item
Push To Scroll Forward.
Keep Depressed For Fast Scroll. *
MAIN DISPLAY
Displays Menu Item and Selection
Upper Line – Menu Item
Lower Line - Selection
SELECT SWITCH
Places Monitor Into Program
Mode With PROGRAM SWITCH
Press to Accept Menu Item and
Advance to Next Item.
SIDE DISPLAY
Displays Software Revision Status
Upper Line – C### (CDM)
Lower Line – M### or T### (WCM)
PROGRAM SWITCH
Places Monitor Into Program Mode
Press While Depressing SELECT Switch
Press To Exit Program Mode.
