MAINTENANCE/SERVICE

169304

157

Rev. C

57.9.5.4 Header Drop Rate

The header should lower gradually when the
lower header switch is pressed. From full height
to ground should take approximately 3.5
seconds.

Adjust as follows:

DANGER

Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

a. Lower header to ground, stop engine, and

remove key.

b. Move maintenance platform rearward.

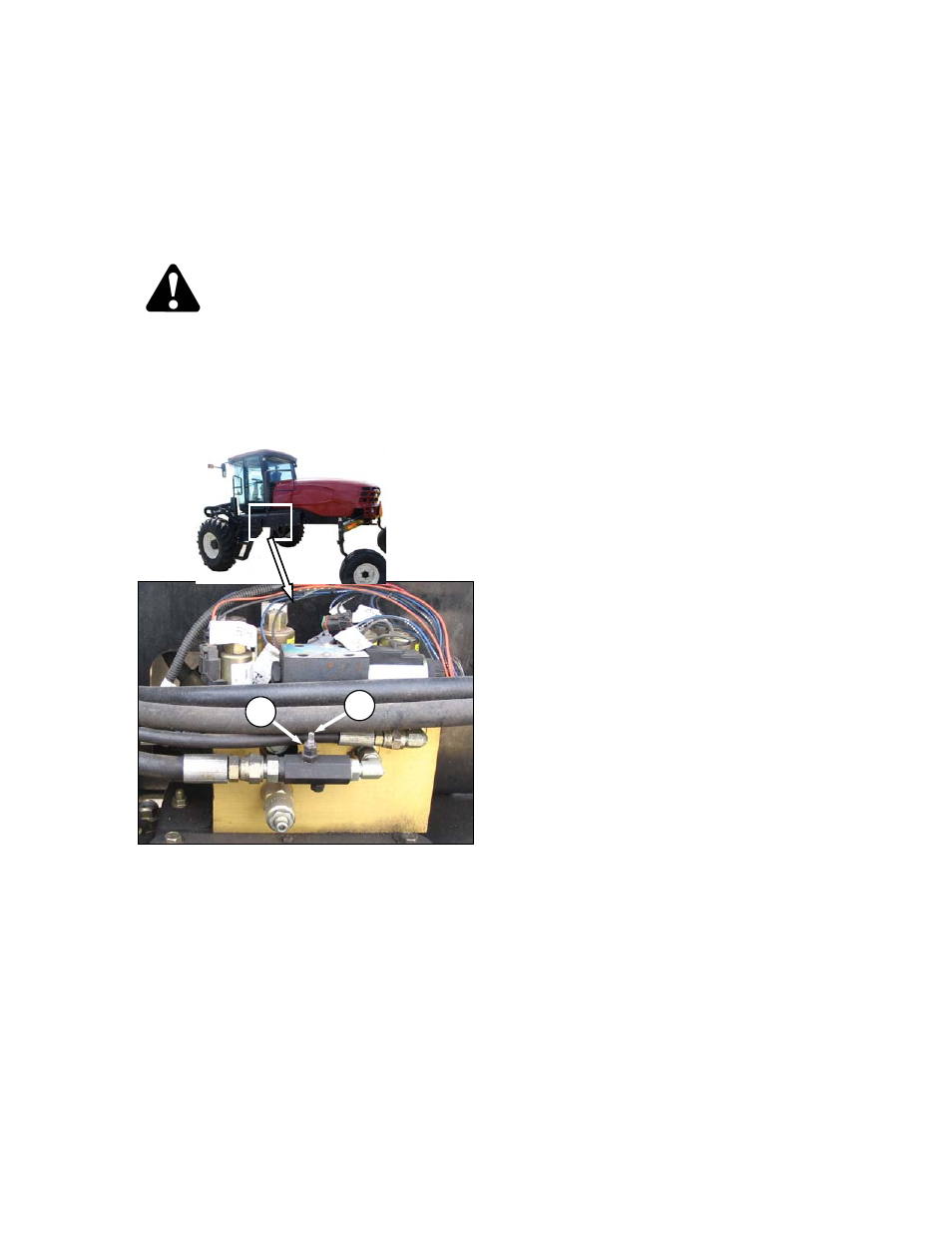

c. Loosen jam-nut (A) on needle valve and turn

screw (B) clockwise to decrease the drop rate
and counter-clockwise to increase the drop rate.

d. Tighten jam-nut (A).

e. Close platform and engine compartment hood.

f.

Check drop rate and re-adjust as required.

B

A
