MAINTENANCE/SERVICE
169304
112
Rev. C

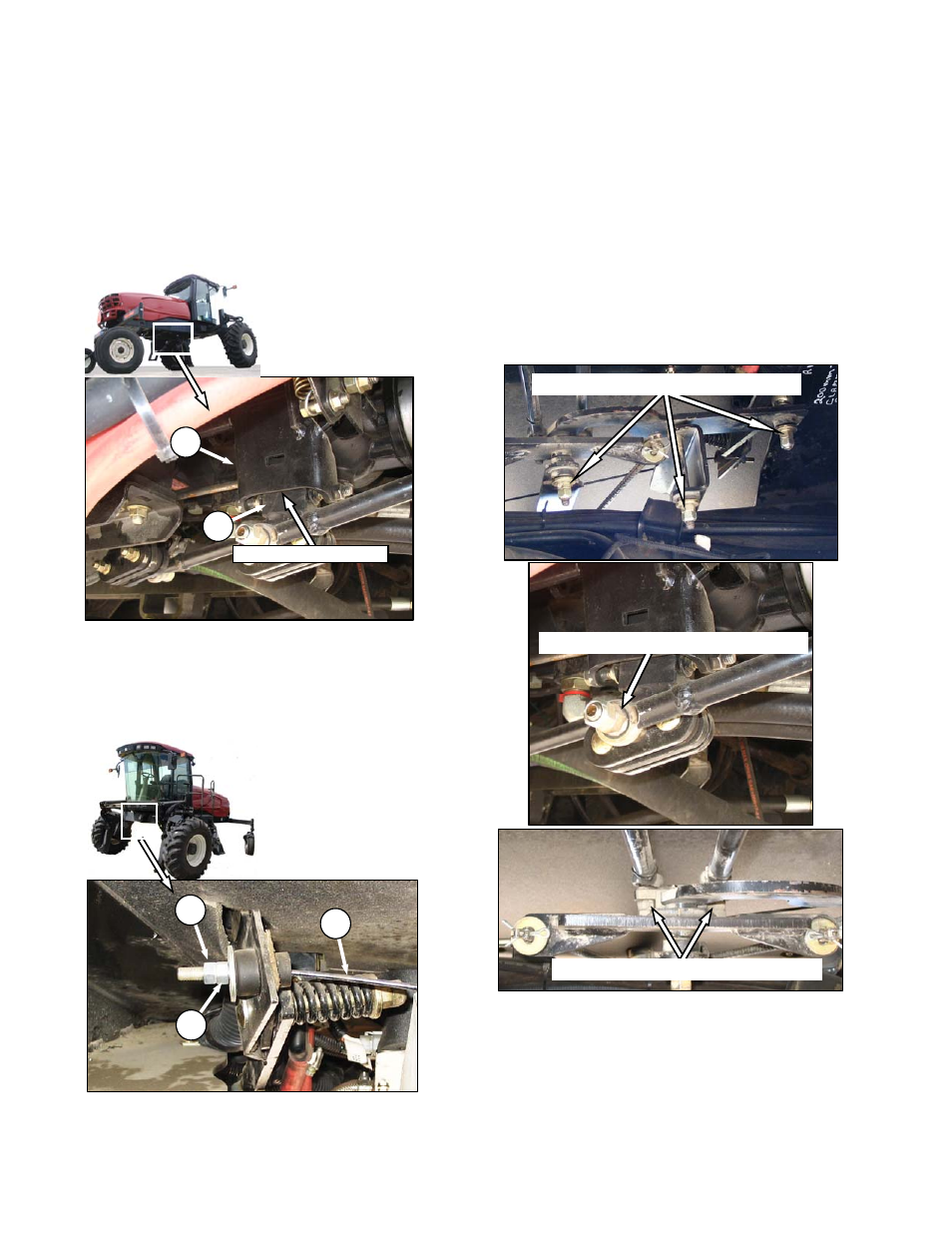

57.5.3.7 Neutral Lock Adjustment Bolts
The neutral lock adjustment bolts must fully
engage the pintle arms. Check and adjust as
follows:
a. Ensure GSL is in N-DETENT position and the
steering wheel is locked in the centre position.
b. Shut down the engine.
c. Using a feeler gauge, gap between pivot
channel (A) and rear pintle arm (B) should be
0.04-0.20 inch (1-5 mm).
d. If required, adjust the interlock release cable (C)
as follows:
1. Loosen jam nut (D) and turn nut (E)
counterclockwise to increase the gap and
clockwise to decrease.
2. Tighten jam nut (D) against nut (E).
3. Check neutral start switch plunger is fully
depressed.
57.5.3.8 Loose Hardware
Check all hardware (not included in the previous
checks) is properly tightened to torque
specifications on ground speed controls, control
rods, pump pintle arms and neutral start
mechanisms.
0.08-0.20 in. (2-5 mm)
A
B
80-90 ft·lbf (108-122 Nm) (2 PLCS)
5-10 ft·lbf (6.8-13.6 Nm) (3 PLCS)
5-10 ft·lbf (6.8-13.6 Nm) (2 PLCS)
D
E
C
