MAINTENANCE/SERVICE
169304
149
Rev. C
57.8.8 Circuit Breakers and Fuses
DANGER
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

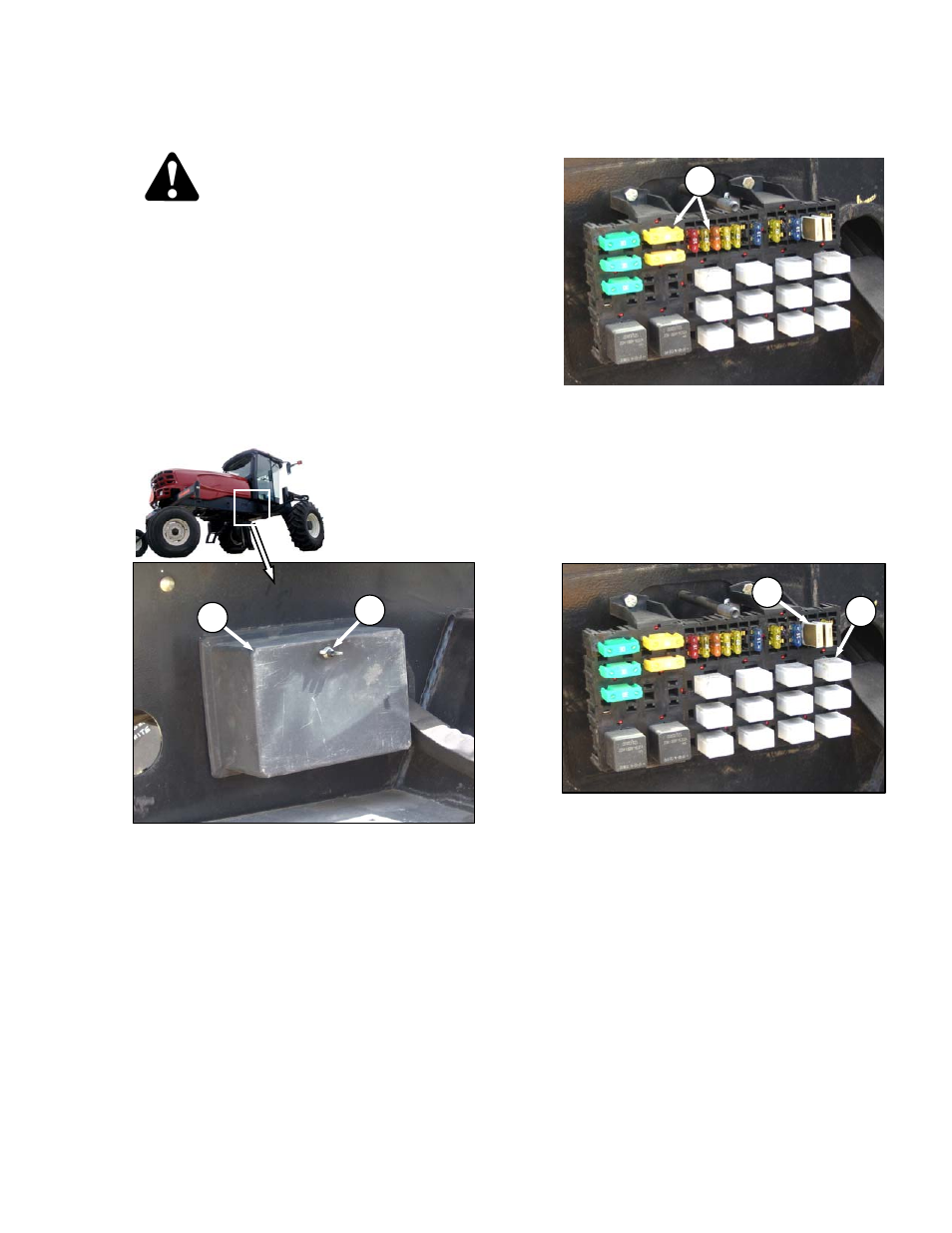

The circuit breakers and fuses are located inside
the fuse box that is mounted on the frame on the
right side of the windrower. The circuit breakers
automatically reset and the fuses are the plastic
blade type.
Access the breakers and fuses as follows:
a. Stop engine and remove key.
b. Remove wing nut (A) and remove fuse box
cover (B).
c. Refer to decal on inside of cover for
identification of fuses and circuit breakers. See
illustration next page. SEE BG
57.8.8.1 Checking/Replacing Fuses
a. To check fuse, pull fuse (C) out of receptacle
and visually examine.
b. To replace fuse, insert new fuse into receptacle.
IMPORTANT
Replacement fuses should match rating
on decal shown on following page.
57.8.8.2 Replacing Circuit Breakers
a. To replace circuit breaker (D), pull breaker out of
receptacle, and install new circuit breaker.
b. To replace relay (E), pull relay out of receptacle,
and install new relay.
c. Reinstall cover and secure with wing nut.
C
A
B
D
E
