MAINTENANCE/SERVICE
169304
120
Rev. C
57.6.4 Air Intake System
IMPORTANT
Do not run engine with air cleaner
disconnected or disassembled.

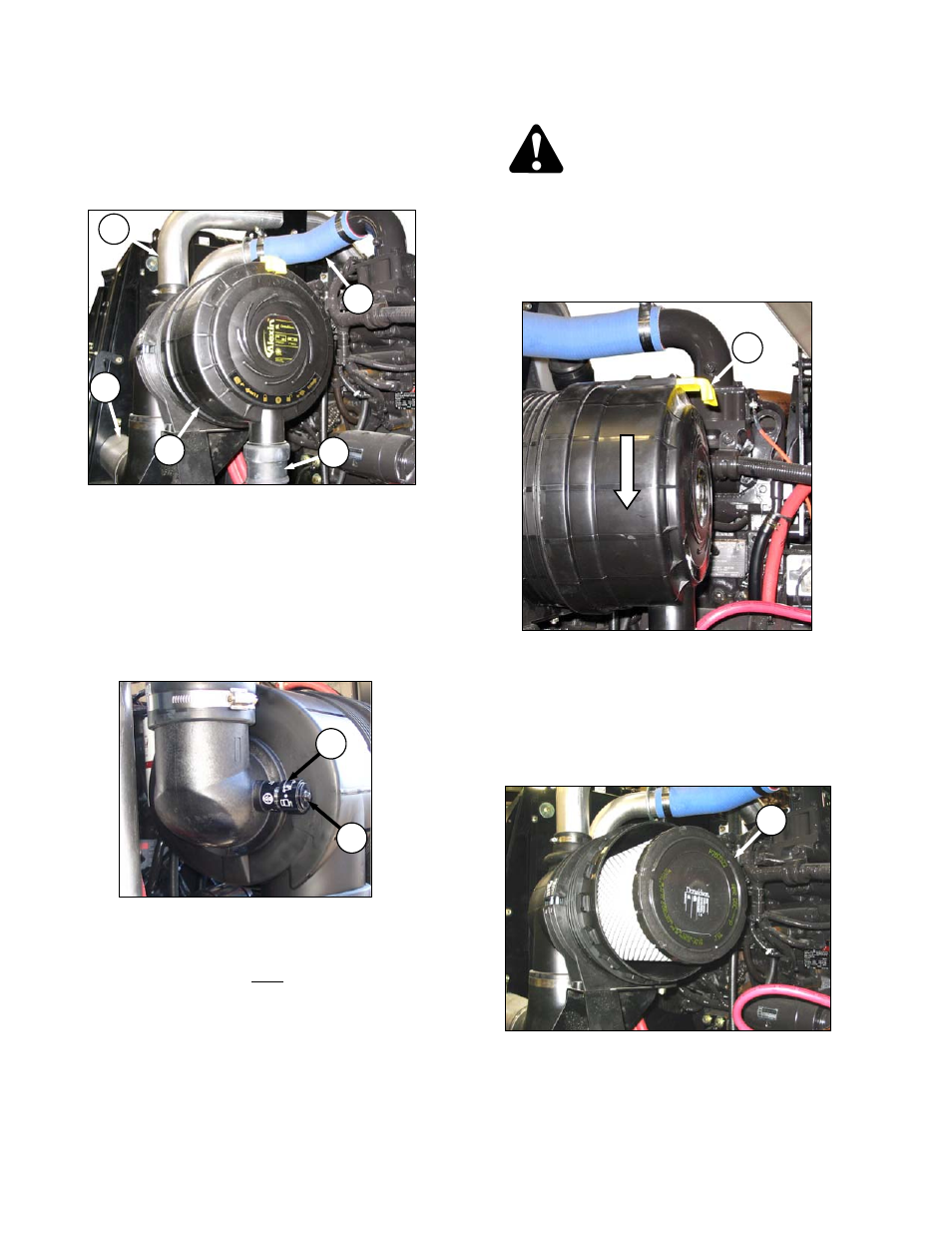

Engine intake air (A) is drawn through a duct (B)
from the cooling box that pre-cleans the air, then
through a dual element filter (C) to the turbo-
charger intake (D). The charged air then passes
through a cooler and into the engine. The air
cleaner canister is equipped with a vacuator
valve (E) that removes dust continuously from
the air cleaner housing.
57.6.4.1 Restriction Gauge
The air cleaner is also equipped with a
mechanical sensor (F) which indicates red when
the primary filter element requires servicing.
a. Check restriction gauge daily.
b. After servicing, re-set restriction gauge by
pushing button (G) on top of gauge.
NOTE
Only service filter element when restriction
gauge indicates red. Over-servicing the filter
element increases the risk of dirt being ingested
by the engine, and severely damaging the
engine.
57.6.4.2 Air Filter Servicing
DANGER
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.
a. Open engine compartment hood to highest
position.
b. Slide yellow locking tab (H) to release canister
end cap and rotate end cap counterclockwise
until it stops.
c. Pull off end cap.
d. Check the vacuator valve (E) daily for
obstructions or damage. Clean or replace if
necessary.
e. Pull out the primary filter element (J) and inspect
as follows:
(continued next page)
