MAINTENANCE/SERVICE
169304
137
Rev. C

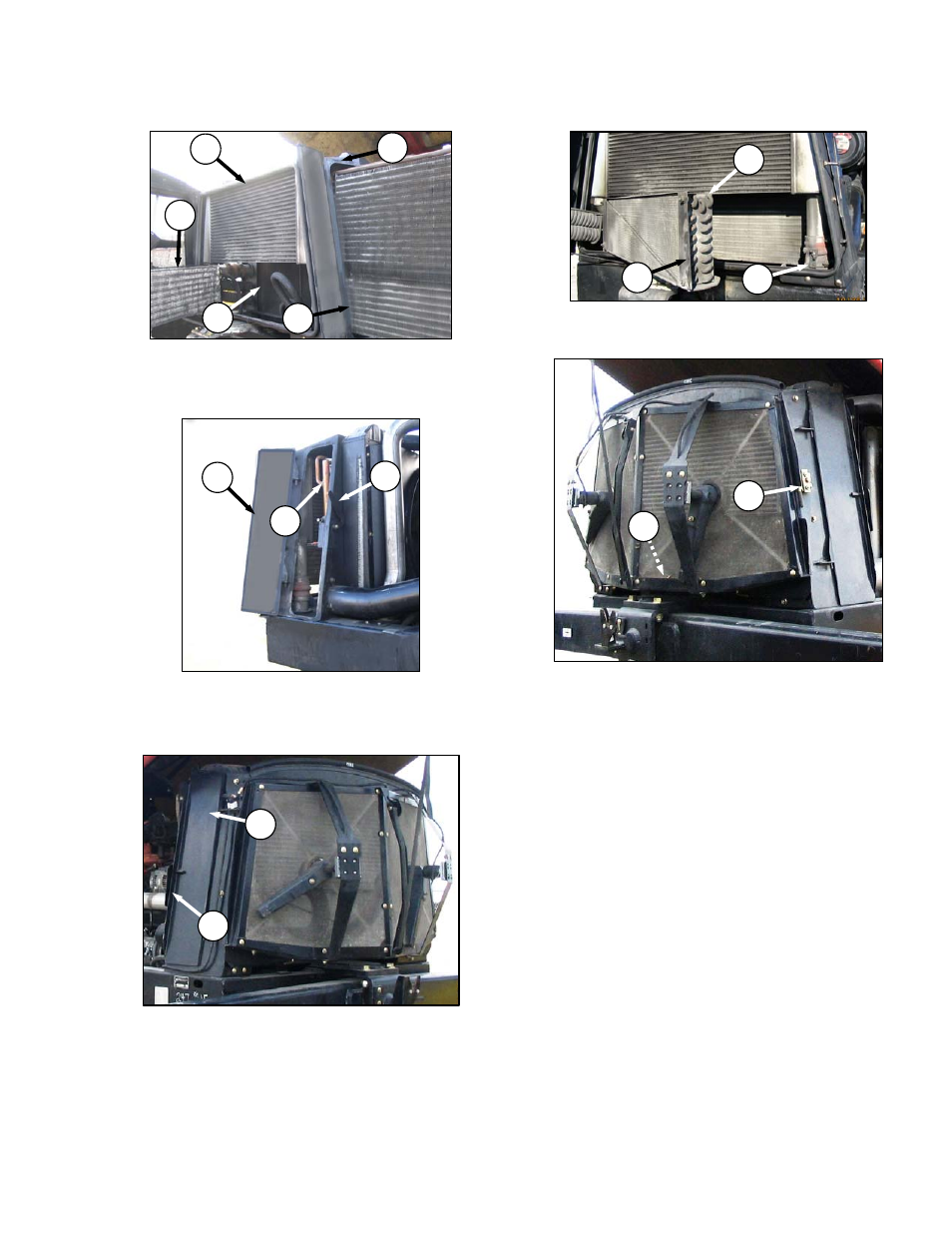

h. Clean radiator (O), oil cooler (K), charge air
cooler (P), air conditioning condenser (E) and
cooling box (Q) with compressed air.
i. Slide oil cooler (K) back into cooling box.
j. Close side access door (J) and lock with lever
(G).
k. Close side door (N) and secure with latch (M).
l. Remove support rod at (F), swing condenser (E)
back into position and secure with retainer (D).
m. Unhook support rod (C) in screen door and store
at base of cooling box.
n. Close door until latch engages pin (A).
o. Lower hood and hood latch will lock hood.
