MAINTENANCE/SERVICE

169304

143

Rev. C

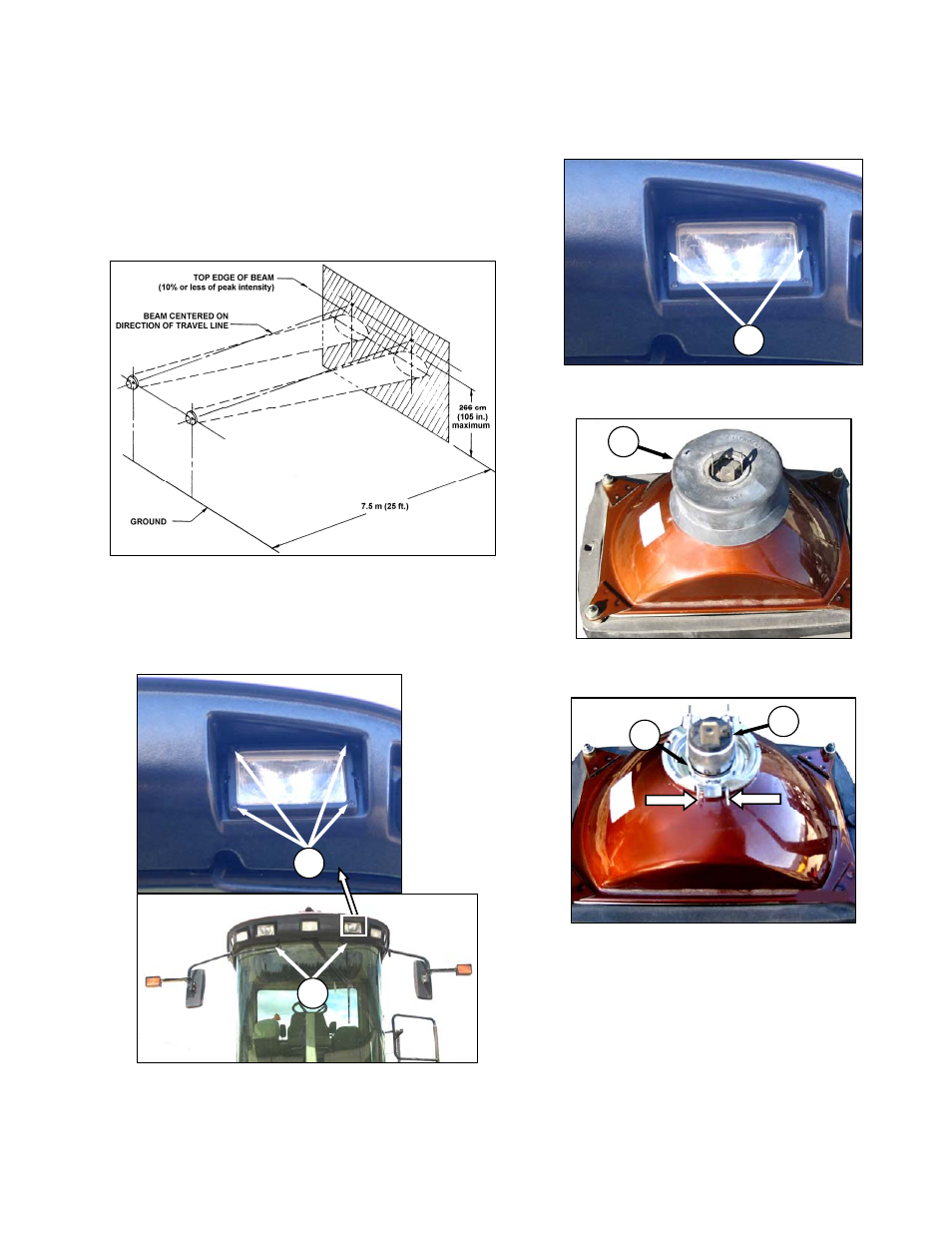

57.8.2 Headlights

57.8.2.1 Adjustment

Adjust for maximum illumination while ensuring
oncoming traffic cannot be blinded by the lights.
The recommended setting is:

• Light beams laterally centered on the

“direction of travel” line from the headlights
(i.e. not skewed left or right).

• Upper limit of the beam not higher than 105

inches (266 cm) above ground at a distance
of 25 ft. (7.5 m) from the headlight

a. Hold onto the hand-holds (A) on the cab front

corners and stand on the header anti-slip strips.

b. Adjust the lights with screws (B).

57.8.2.2 Bulb Replacement

a. Remove the two screws (C) and remove light

assembly.

b. Pull wiring harness connector off the headlight

assembly and remove rubber insulator boot (D).

c. Pinch the wire retainer (E) and lift away from

hooks.

d. Remove bulb (F) from body.

IMPORTANT

Do not touch the glass of the halogen bulb
as the oils or other chemicals from your
skin will cause the bulb to fail prematurely.

(continued next page)
