MAINTENANCE/SERVICE

169304

110

Rev. C

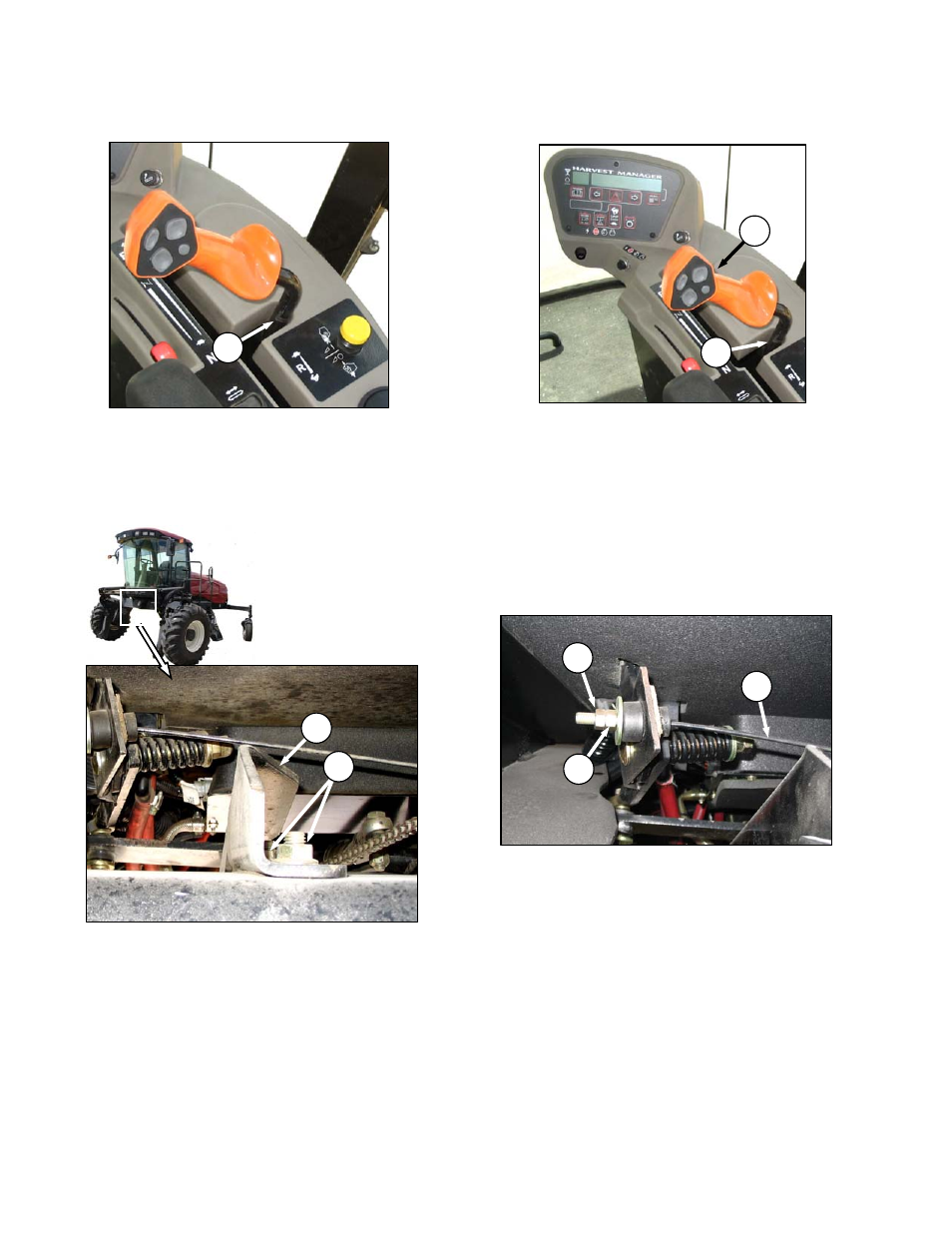

57.5.3.3 GSL Position

The GSL should be centered fore-aft (A) in the
N-Detent slot when the steering wheel is
centered and locked.

If necessary, adjust as follows:

IMPORTANT

Neutral Interlock must be properly
adjusted before adjusting GSL position.

a. Lock pintle arms.

b. Loosen nuts (B).

c. Hold GSL in center of N-Detent slot to locate

support (C).

d. Tighten nuts (B) and torque to 80-90 ft·lbf (108-

122 Nm).

57.5.3.4 Cable Tension

The GSL (D) should easily move into the N-
DETENT (E) by itself, and the cable (F) should
be tight when the GSL is at the right hand side
of the neutral detent on side console. The
neutral start switch should also be fully
compressed. If the cable is too tight, it will
prevent the neutral start switch from fully
compressing and prevent proper engagement of
adjustment bolts on pintle arm.

Adjust the cable tension as follows:

a. Hold nut (G) from turning and loosen jam-nut

(H).

b. To increase the tension, turn the nut (G)

clockwise.

c. To decrease the cable tension, turn the nut (G)

counterclockwise.

d. Hold nut (G) from turning and tighten jam-nut

(H).
