OPERATOR’S STATION

169304

Rev. C

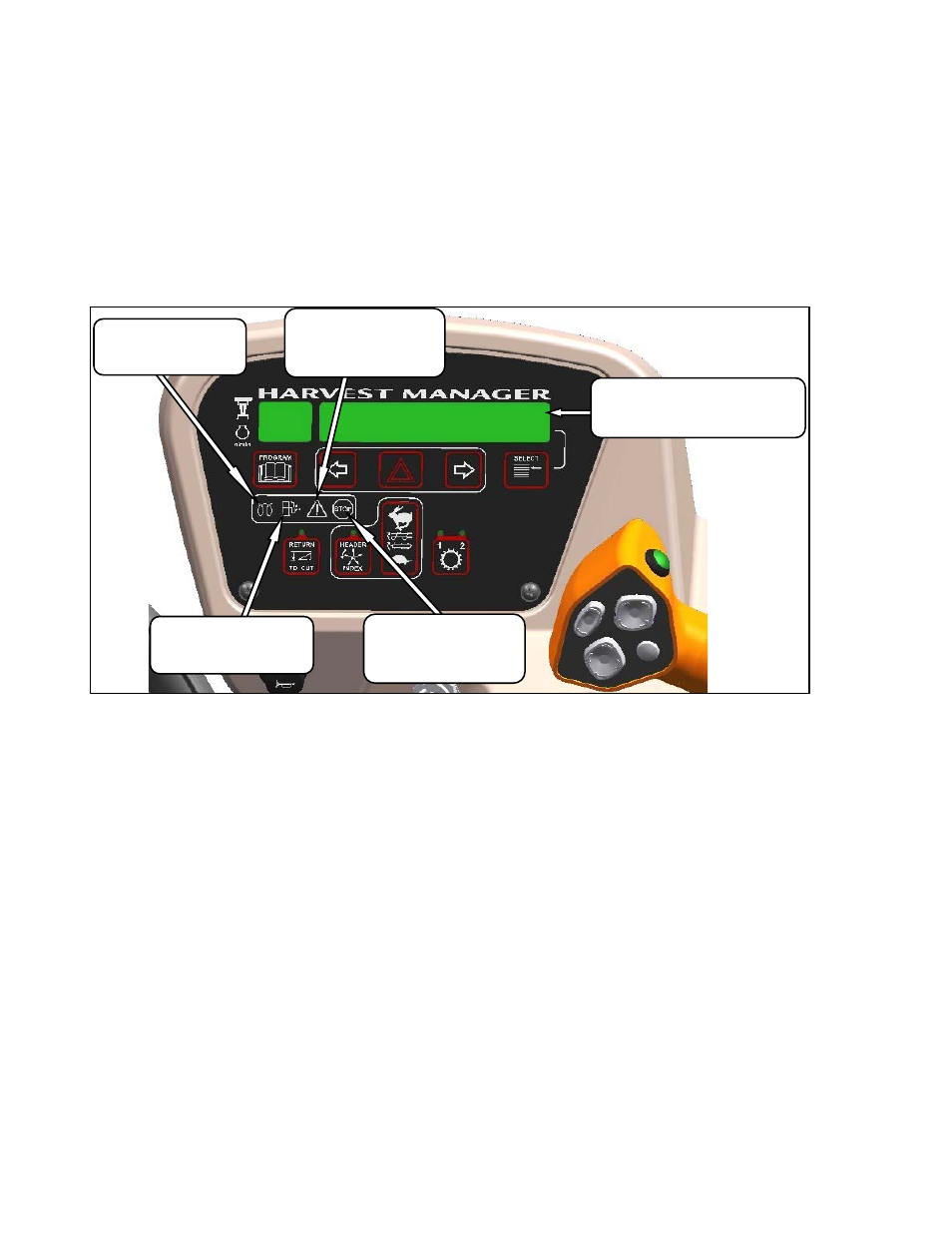

5.18.4 Cab Display Module (CDM)

Warnings/Alarms

The CDM displays warnings and sounds alarms
to notify the operator of abnormal windrower
status at startup when the ignition is turned on
and at engine operating speeds above 500 rpm.

5.18.4.1 Engine Warning Lights

WATER IN FUEL

Illuminates Yellow
Service Recommended

CAUTION

Illuminates Yellow
Do Not Operate Engine
Refer to Display Code

DISPLAY

Displays Malfunction Code
Refer to Technical Service Manual

ENGINE PREHEAT

Illuminates Yellow
Wait To Start Engine

STOP

Illuminates Red
Stop Engine Immediately
Refer to Display Code
