Technical data
Terminal description
Axis modules
4
l
60 EDS700ACBA EN 4.0

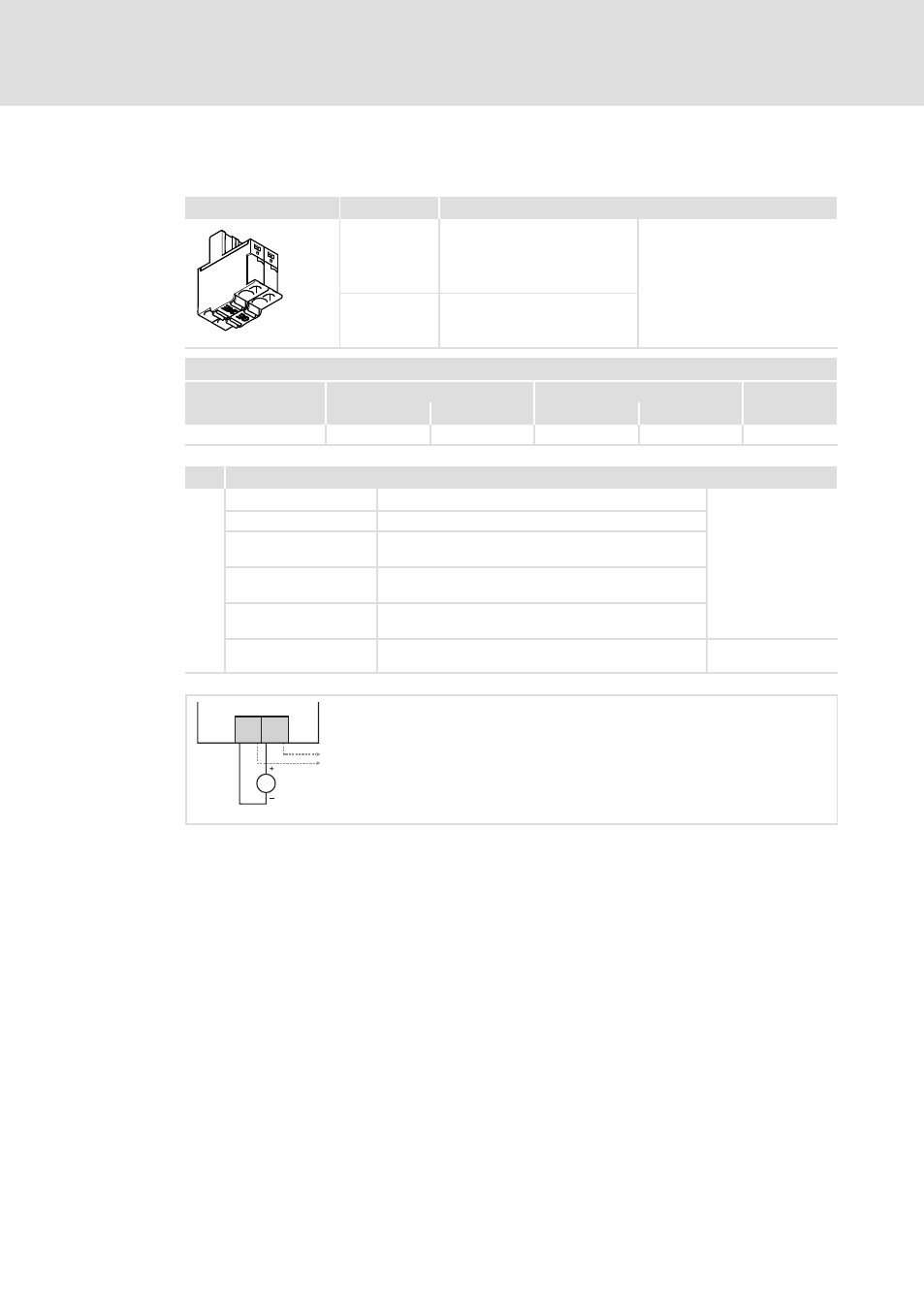

Brake connection
X105 Labelling Description
24E 24 V supply voltage for motor
holding brakes On double axis devices, there is
one of these connections.
The motor holding brakes of axis
A and B are supplied.
GE Reference potential GND
i700P00x
Terminal data
Conductor cross−section Tightening torque !
[mm 2 ] [AWG] [Nm] [lb−in]
flexible 0.2 ... 2.5 24 ... 12 − − 3.5 x 0.6
X105 Electrical data
24E
GE Rated voltage 24 V The supply voltage of
the motor holding
brake must be
independent.
A safely separated
supply is not
required.
^ 85
Voltage range 18 ... 30 V
Current consumption Corresponding to the connected brake
Terminal current when
looped through With 1.5 mm 2 : max. 10 A
With 2.5 mm 2 : max. 16 A
Polarity reversal
protection When the polarity is reversed: no function and no
destruction.
Cable protection Circuit breaker with tripping characteristic B or C
Standard blade−type fuses £ 20 A, ³ 30 V
X105
DC 24 V
X105
24E GE
i700M00x
Fig. 7 Wiring of X105
X105 Supply voltage connection of motor holding brake, can be looped through
A 1−axis module
B Additionally for 2−axis module
24E 24−V supply voltage for motor holding brakes
GE Reference potential
