Storage system connections, 6 enterprise virtual array 3000 system connections – HP 3000 Enterprise Virtual Array User Manual
Page 38

Storage System Startup
38
Enterprise Virtual Array 3000 User Guide
Storage System Connections
shows a typical Enterprise Virtual Array 3000 SAN topology:
■
The HSV controllers connect via ports FP1 and FP2 to two Fibre Channel
fabrics. The hosts that will access the storage system are connected to the
same fabrics. Note that FP1 on each controller is connected to a different
fabric to balance the I/O load.
■
Command View EVA, which runs on the storage management appliance, also
connects to both fabrics.
■
The controllers connect through two FC loops to the drive enclosures. The
loop pair consists of two independent loops, each capable of managing all the
disks should one loop fail.

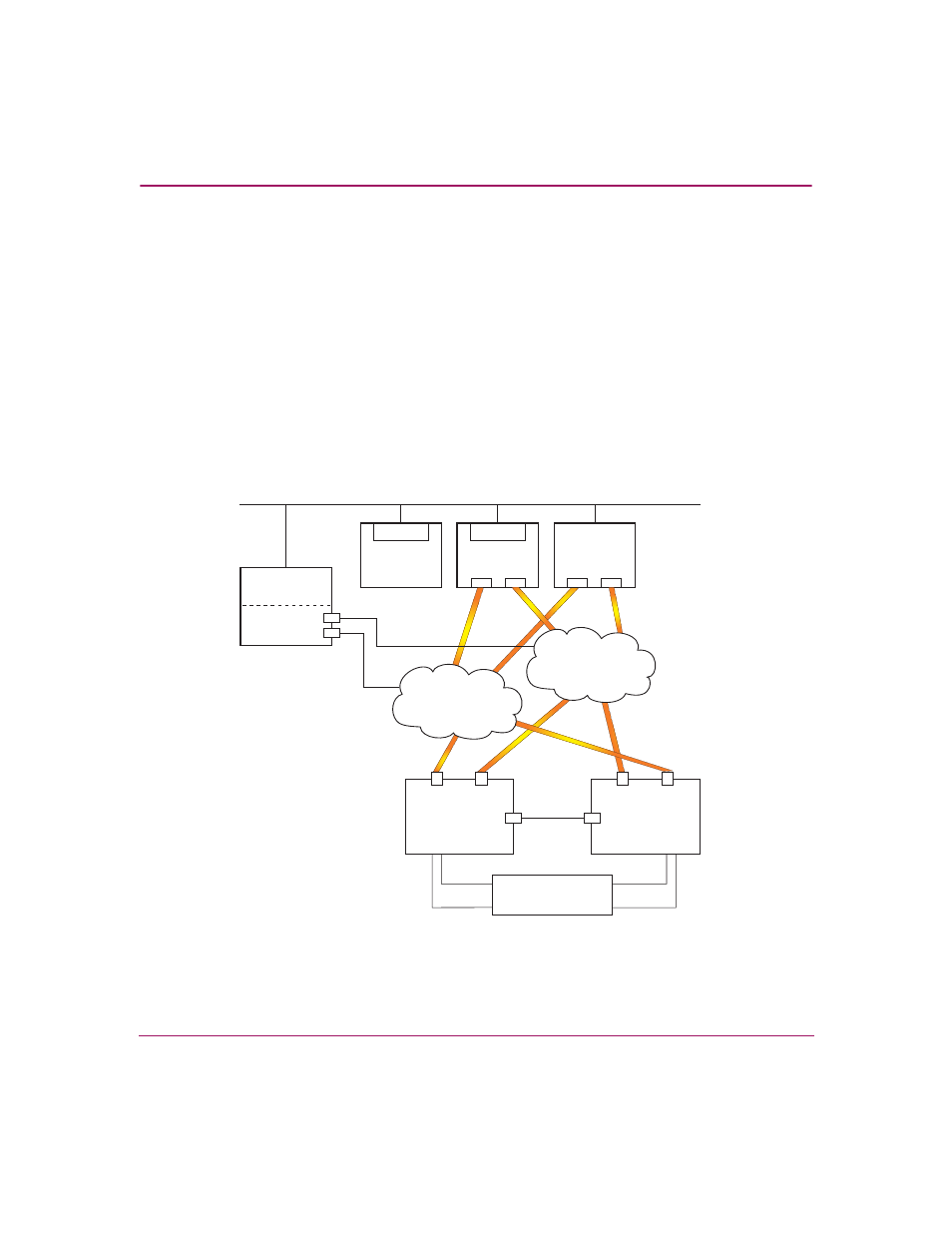

Figure 6: Enterprise Virtual Array 3000 system connections
Browser
Host X
FCA
Management
Appliance
Command
View EVA
CXO8055B
Controller
A
FCA
FCA
FCA
Host Z
Browser
Non-Host
FP1
FP2
Loop
Pair 1
Loop
Pair 1
Controller
B
FP1
FP2
Network Interconnection
Drive Enclosures
FP = Fibre (Host) Port
FCA = Fibre Channel Adapter
Cache
Mirror Port
B
A
B
A
Fabric 1
Fabric 2
