Storage System Description
29 Enterprise Virtual Array 3000 User Guide
Fibre Channel Drive Enclosure
Each Fibre Channel drive enclosure includes the following features:
■ 3U enclosure
■ Dual-redundant, active-to-active, 2-Gbps FC loops
■ Fourteen bays for 1-inch FC disks
■ Environmental Monitor Unit (EMU)
■ Dual 2-Gbps FC I/O modules
■ Dual-redundant 500-W power supplies
■ Dual-redundant blowers
For ease of management, the disk drives are referred to by their physical location,
the drive bay number.

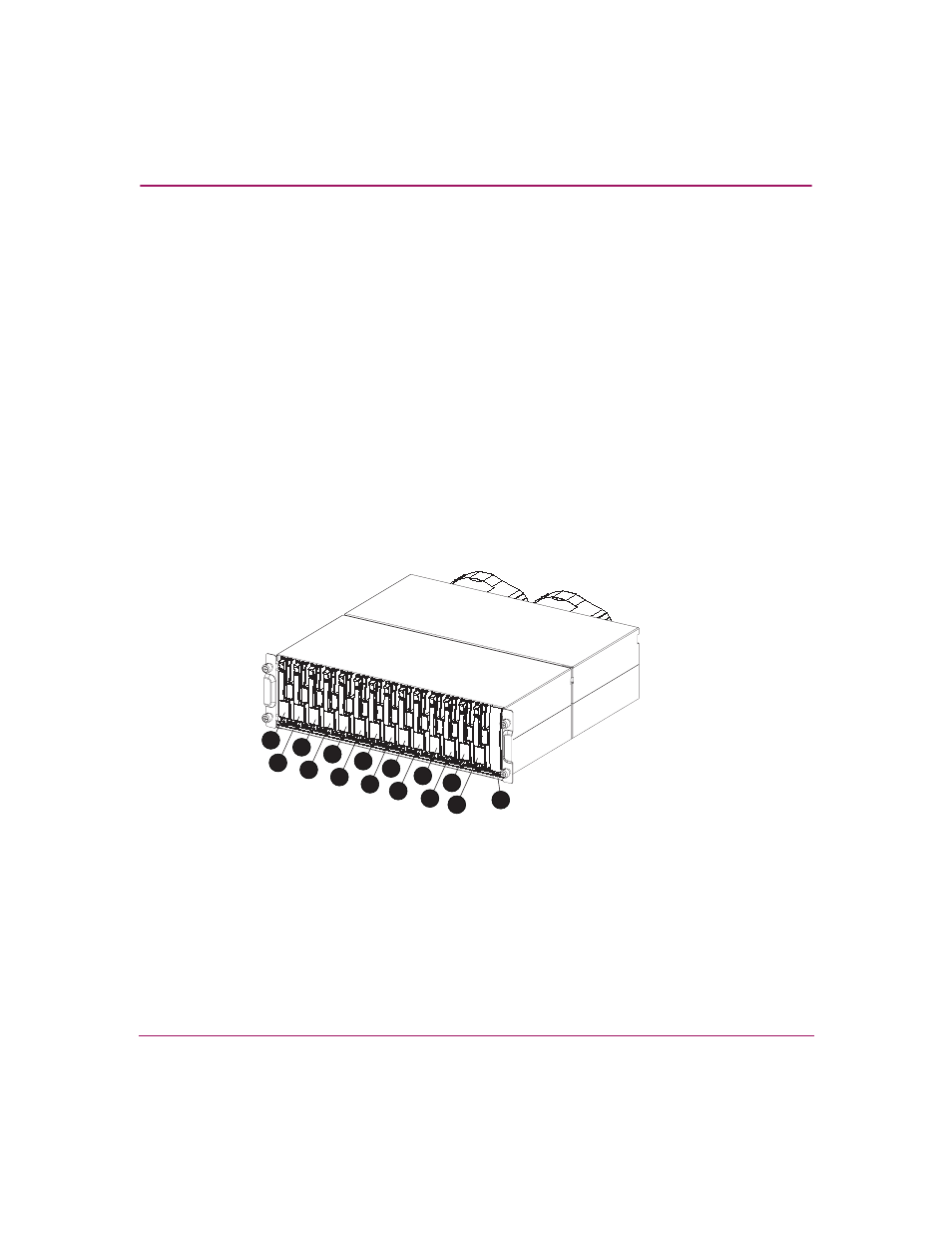

Figure 4 shows the front view of the drive enclosure and the location of each drive
bay.
1
to
r
Drive bays
t Enclosure status icons
Figure 4: Fibre Channel drive enclosure
CXO7942A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
