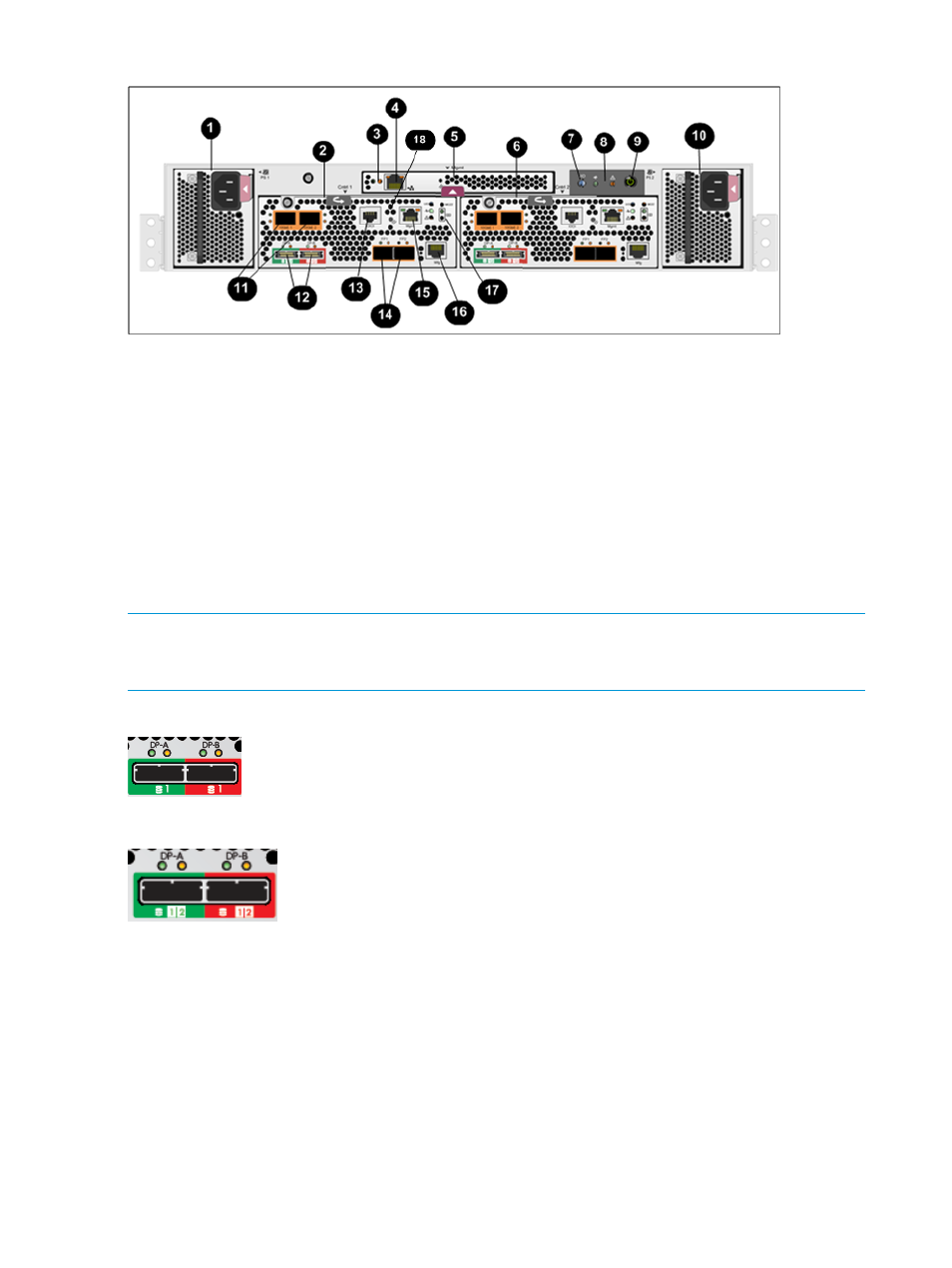

Figure 5 P6000 EVA iSCSI/FCoE controller enclosure (rear view)
10. Power supply 2 1. Power supply 1
11. 10GbE ports 1–2 2. Controller 1
12. DP-A and DP-B, connection to back-end (storage) 3. Management module status LEDs
13. Serial port 4. Ethernet port
14. FP3 and FP4, connection to front end (host or SAN) 5. Management module
15. SW Management port 6. Controller 2
16. Manufacturing diagnostic port 7. Rear UID push button
17. Controller status and fault LEDs 8. Enclosure status LEDs
18. iSCSI/FCoE recessed maintenance button 9. Enclosure power push button
NOTE: The only difference between the P63x0 and P65x0 controllers is the number indicated
below the SAS data ports (DP-A and DP-B). On the P63x0, 1 is displayed ( Figure 6 (page 24) ).
On the P65x0, 1 | 2is displayed ( Figure 7 (page 24) ).
Figure 6 P63x0 data port numbering
Figure 7 P65x0 data port numbering
Controller status indicators
The status indicators display the operational status of the controller. The function of each indicator
is described in
Table 3 (page 25) . During initial setup, the status indicators might not be fully
operational.
Each port on the rear of the controller has an associated status indicator located directly above it.
Table 1 (page 25) lists the port and its status description for the HSV340. Table 2 (page 25) lists
the port and its status descriptions for the HSV340 FC-iSCSI.
24 P63x0/P65x0 EVA hardware
