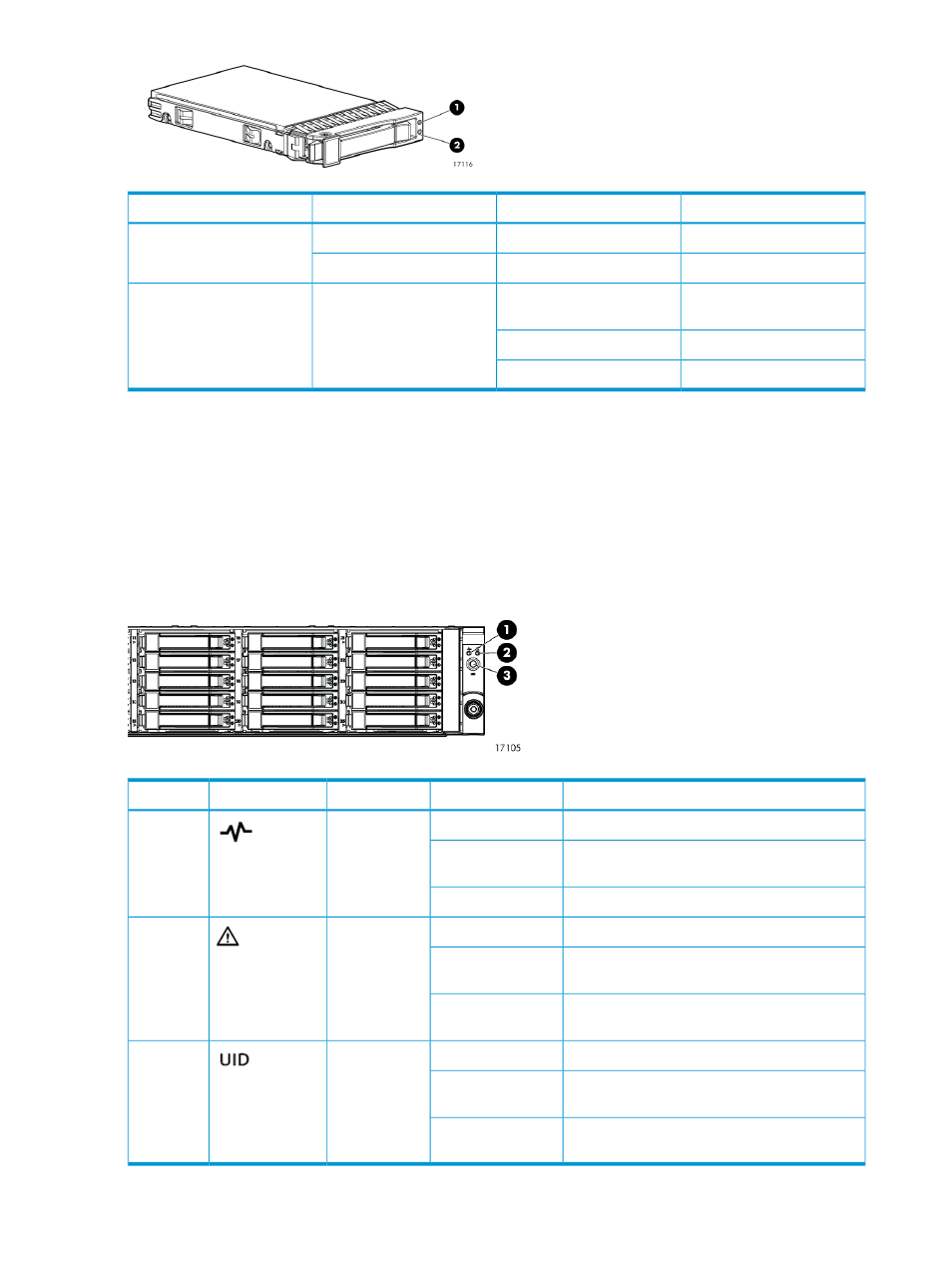

Description LED status LED color LED
Locate drive Slow blinking (0.5 Hz) Blue 1. Locate/Fault
Drive fault Solid Amber
Drive is spinning up or down
and is not ready Blinking (1 Hz) Green 2. Status
Drive activity Fast blinking (4 Hz)
Ready for activity Solid
Disk drive blanks
To maintain the proper enclosure air flow, a disk drive or a disk drive blank must be installed in
each drive bay. The disk drive blank maintains proper airflow within the disk enclosure.
Front status and UID module
The front status and UID module includes status LEDs and a unit identification (UID) button.
Front UID module LEDs
Description LED status LED color LED icon LED
No power Off Green 1. Health
Enclosure is starting up and not ready,
performing POST Blinking
Normal, power is on Solid
Normal, no fault conditions Off Amber 2. Fault
A fault of lesser importance was detected in the
enclosure chassis or modules Blinking
A fault of greater importance was detected in
the enclosure chassis or modules Solid
Not being identified or power is off Off Blue 3. UID
Unit is being identified from the management
utility Blinking
Unit is being identified from the UID button
being pushed Solid
