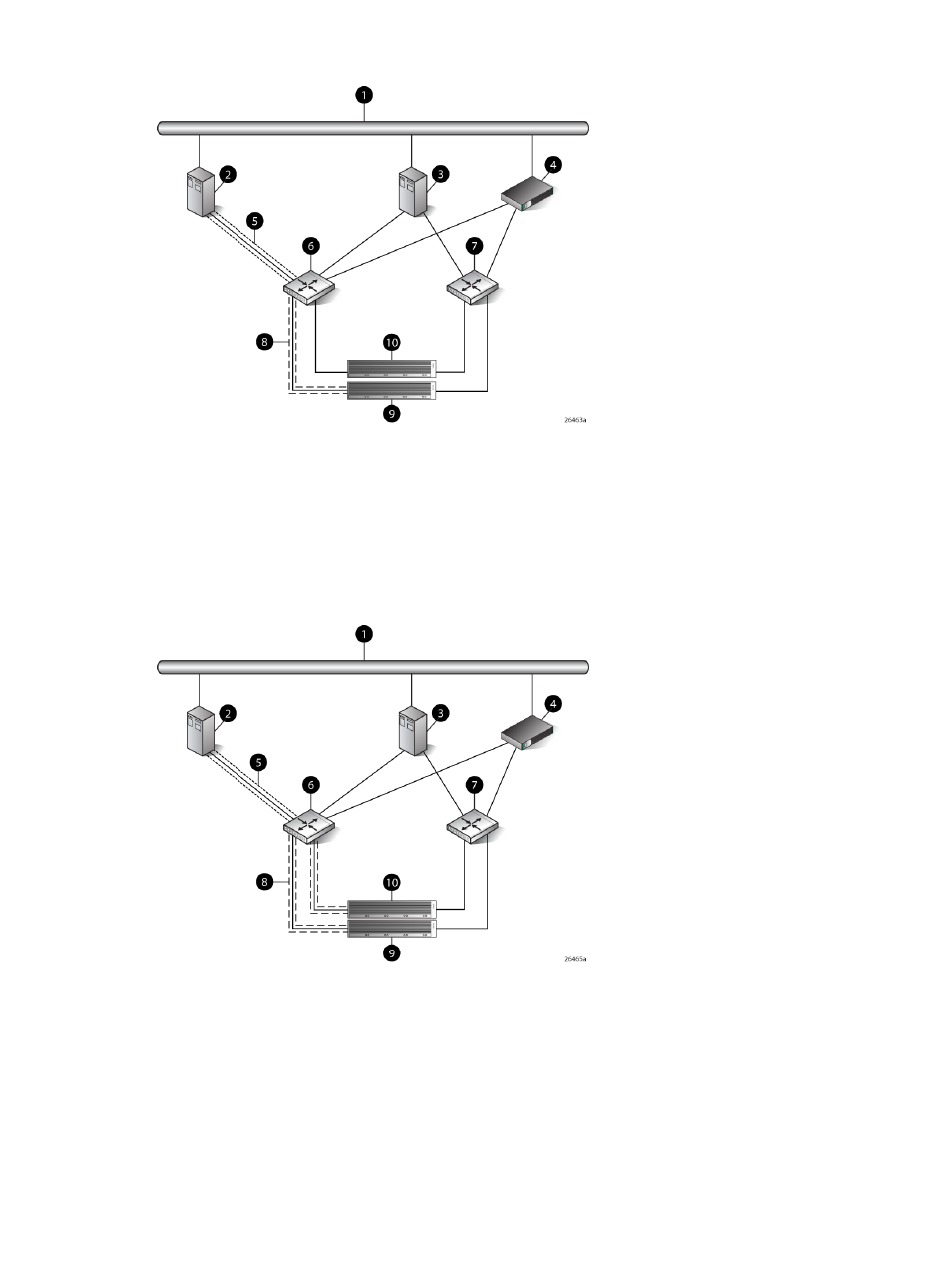

Figure 73 Single path HBA server without OpenVMS

6. SAN switch 1

1. Network interconnection

7. SAN switch 2

2. Single HBA server (Host 1)

8. Fabric zone

3. Dual HBA server (Host 2)

9. Controller A

4. Management server

10. Controller B

5. Multiple single HBA paths

Figure 74 Single path HBA server with OpenVMS

6. SAN switch 1

1. Network interconnection

7. SAN switch 2

2. Single HBA server (Host 1)

8. Fabric zone

3. Dual HBA server (Host 2)

9. Controller A

4. Management server

10. Controller B

5. Multiple single HBA paths

Supported configurations
