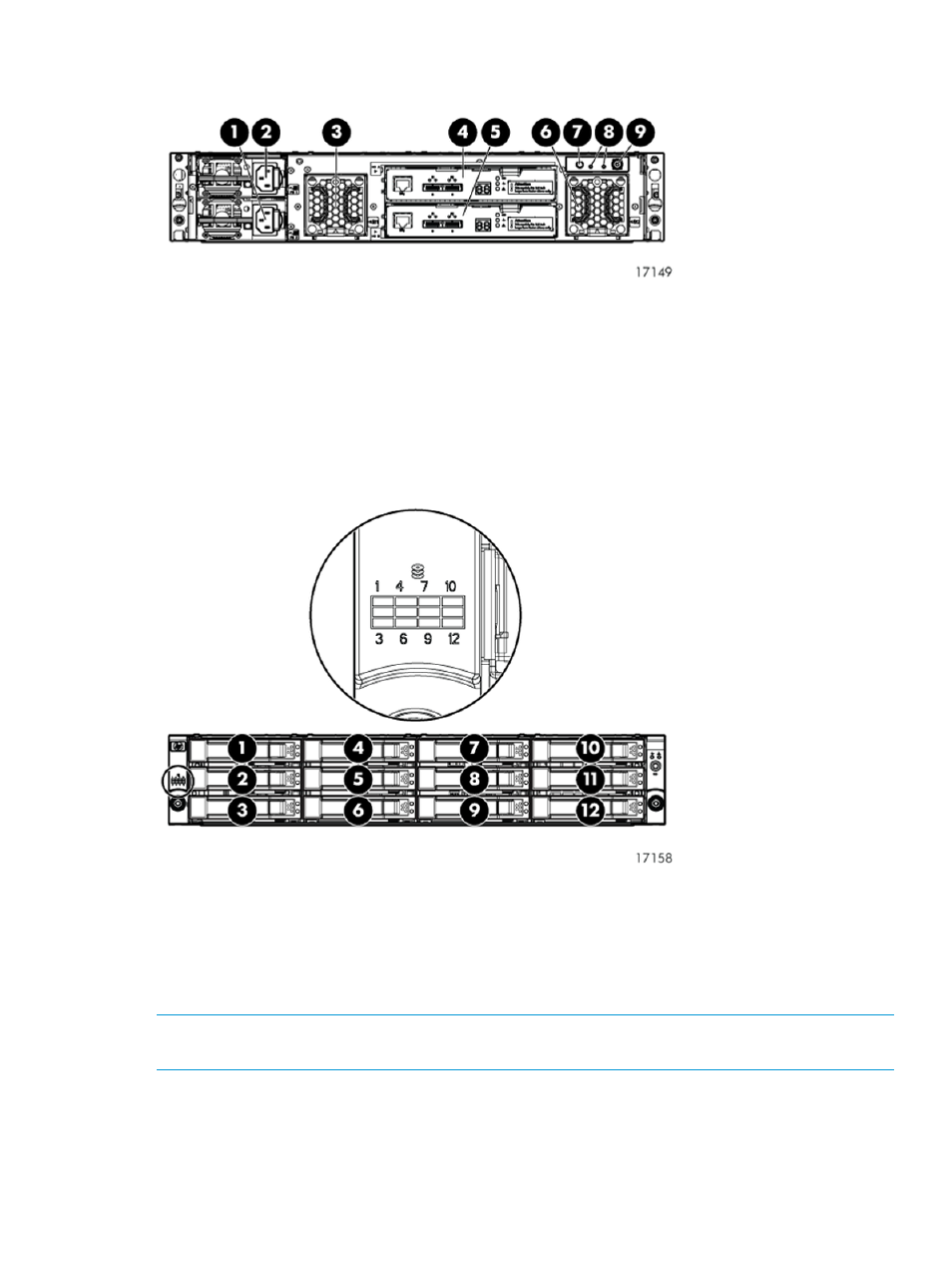

Rear view

7. UID push button and LED

4. I/O module A

1. Power supply 1

8. Enclosure status LEDs

5. I/O module B

2. Power supply 2

9. Power push button and LED

6. Fan 2

3. Fan 1

Drive bay numbering

Disk drives mount in bays on the front of the enclosure. Bays are numbered sequentially from top
to bottom and left to right. A drive-bay legend is included on the left bezel.

Disk drives

Disk drives are hot-pluggable. A variety of disk drive models are supported for use.

Disk drive LEDs

Two LEDs indicate drive status.

NOTE:

The following image shows a Small Form Factor (SFF) disk drive. LED patterns are the

same for SFF and LFF disk drives.

SAS disk enclosures

15
