• Console: 38400
• Remote: 38400
• UPS: 1200
Configure Remote Console

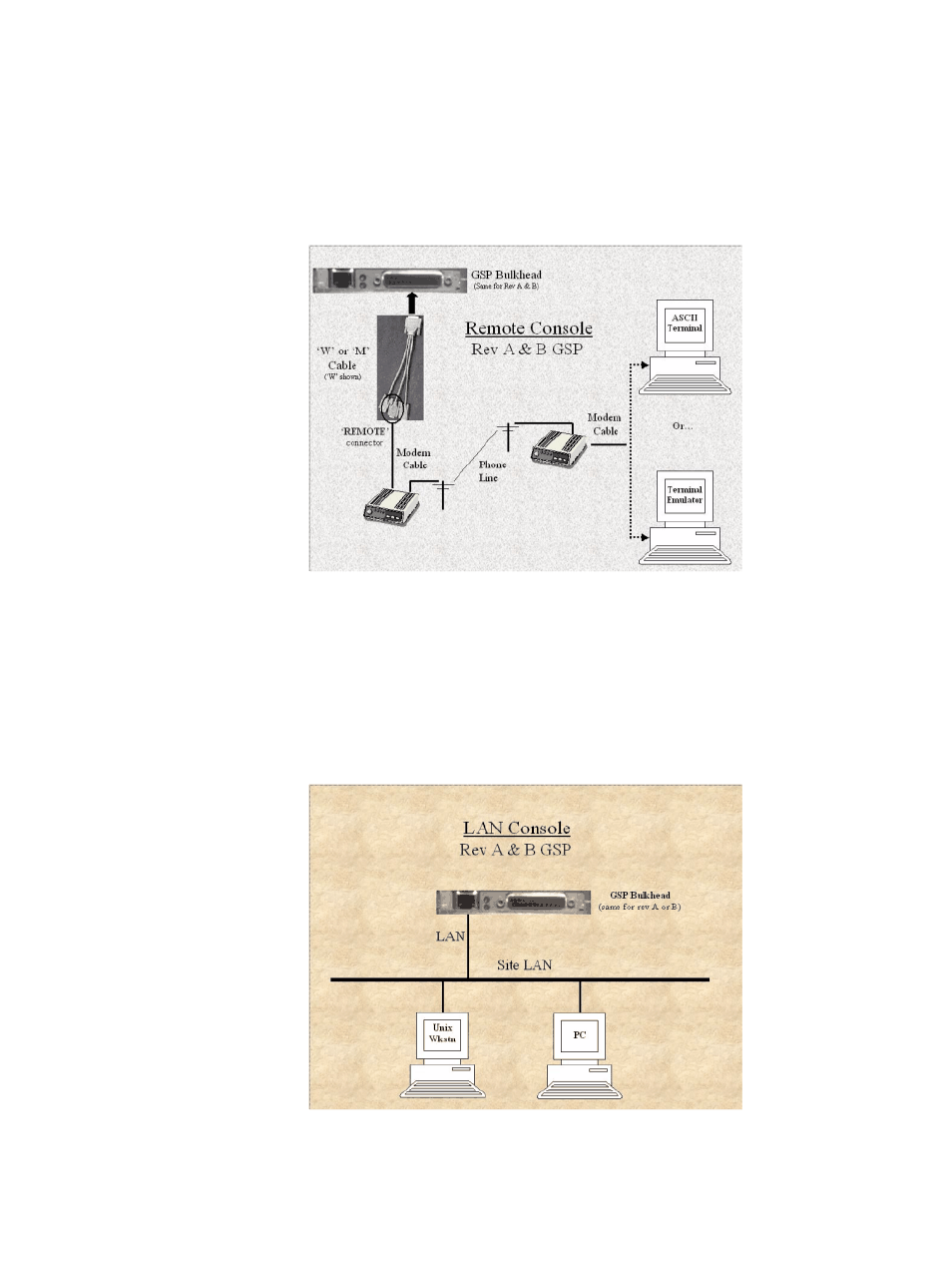

The remote console allows console access via modem connections. Below is an illustration of the
REMOTE console.
The GSP>ca command is used to configure asynchronous settings for the REMOTE console.
Baud rates and emulations should match between the modems, remote ASCII terminal and the
GSP. Refer to, "Configure RS232 Console" for information about setting these values.
Configure the LAN Console
The LAN console allows you to access the console from the LAN using TelNet or http (revision
B GSP only) protocols. Below is an illustration of the LAN console.
The configuration of the LAN console of both the revision A and B GSPs may be done from either
an ASCII console or the external Secure Web Console. For the revision B GSP, an IP may be
assigned via LAN by pinging the LAN from a PC or workstation.
Configure System Consoles 53
