1. Pull up on the extractor levers on each end of the Platform Monitor to unseat it from its
socket.
2. When the Platform Monitor unseats from the socket, pull it up and away from the System
Board.

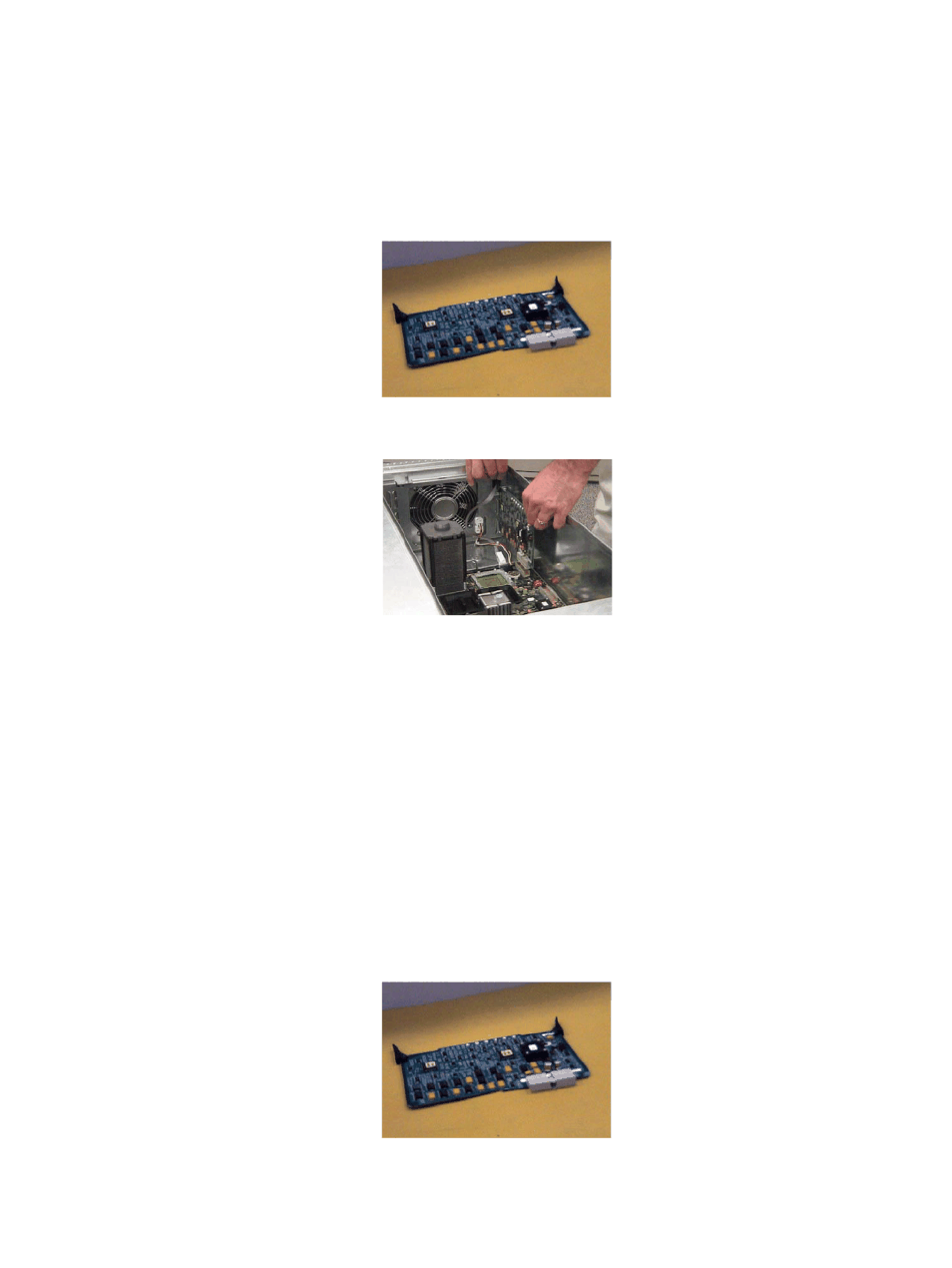

The following graphics show a Platform Monitor board followed by a display of Platform Monitor
removal/replacement.
Platform Monitor Replacement
The Platform Monitor resides on the System Board and is accessed via the Top Service Bay.
Replacing rp5400 and/or rp5450 Platform Monitors
Looking into the Top Service Bay from the front, the rp5400/rp5450 model Platform Monitor is
located on the left side at the front of the server.
To replace a Platform Monitor, perform the following steps:
1. Seat the Platform Monitor into its socket.
2. Lift the extractor levers and press them onto each end of the Platform Monitor until the
levers snap into place.
The following graphics show a Platform Monitor board followed by a display of Platform Monitor
removal/replacement.
128 Removing and Replacing Components
