6
OPERATION
90
OPTIFLEX 2200 C/F
www.krohne.com 07/2013 - 4000668002 - HB OPTIFLEX 2200 R02 en
Dimensions in mm
Dimensions in inches
6.5 Status and error messages
6.5.1 Device status (markers)
If the device senses a change in device status, the display screen will show 1 or more status
markers at the bottom right side of the display screen. The display screen will also show a
symbol that agrees with NAMUR Recommendation NE 107 (Self-Monitoring and Diagnosis of
Field Devices) and VDI/VDE 2650. This is shown at the top left side of the display screen. More
data is given if you use PACTware™ software with the appropriate DTM on a PC. Error codes and
data are shown on the device display screen and in the DTM.

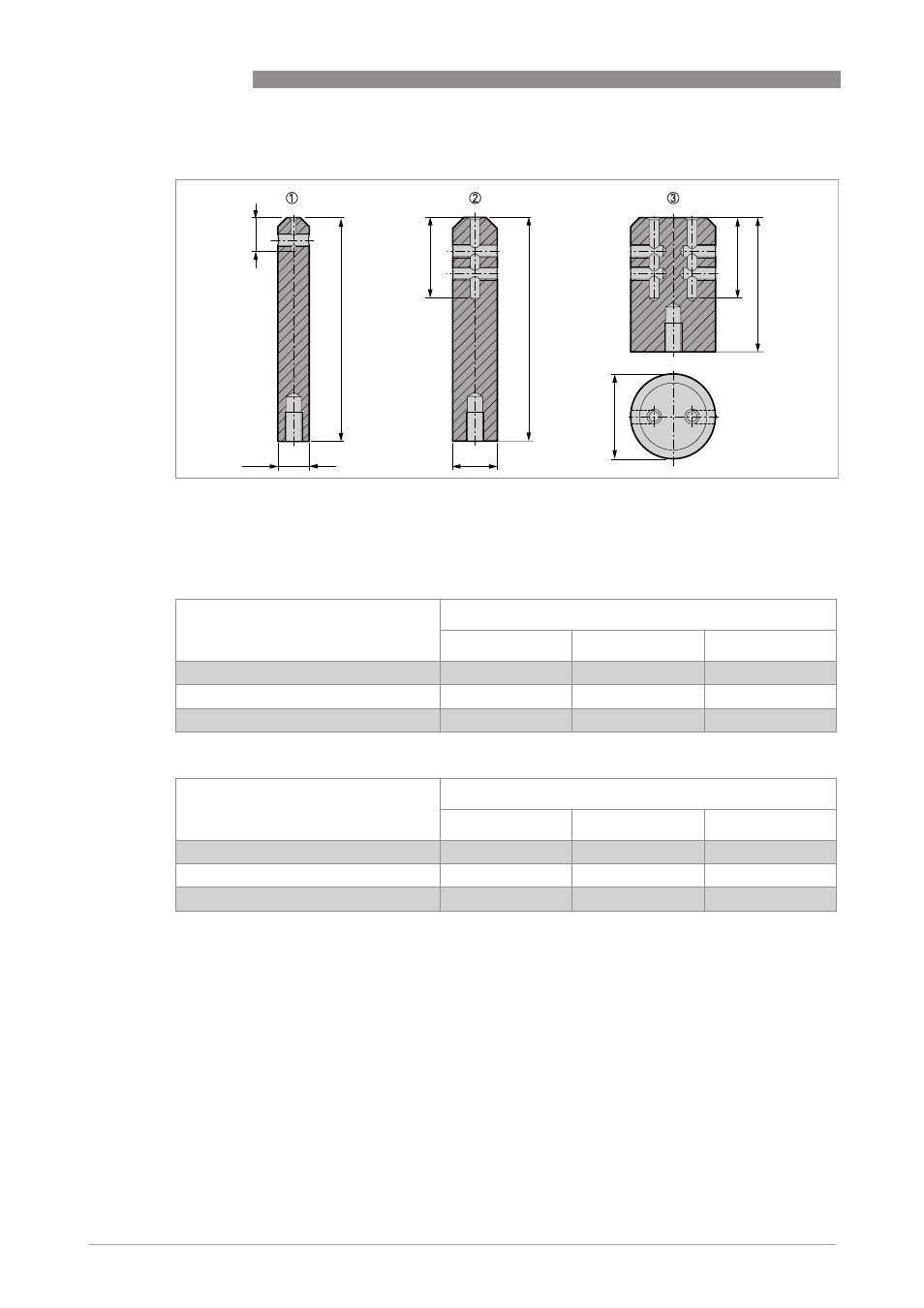

Figure 6-8: Dimensions of the counterweights
1 Ø2 mm / 0.08¨ single cable probe
2 Ø4 mm / 0.15¨ single cable probe
3 Ø4 mm / 0.15¨ double cable probe
Probe type Dimensions [mm]
a b Øc
Single cable Ø2 mm 15 100 14
Single cable Ø4 mm 36 100 20
Double cable Ø4 mm 36 60 38
Probe type Dimensions [inches]
a b Øc
Single cable Ø0.08¨ 0.6 3.9 0.5
Single cable Ø0.15¨ 1.4 3.9 0.8
Double cable Ø0.15¨ 1.4 2.4 1.5
a
b
c
a
b
c
a
b
c
