SERVICE
7
109
OPTIFLEX 2200 C/F
www.krohne.com 07/2013 - 4000668002 - HB OPTIFLEX 2200 R02 en
1 Remove the 4 socket head screws at the bottom of the signal converter with a 5 mm Allen
wrench. Keep the screws for the subsequent procedure.
2 Remove the signal converter from the process connection. Make sure that the gasket stays on
the flange connection.

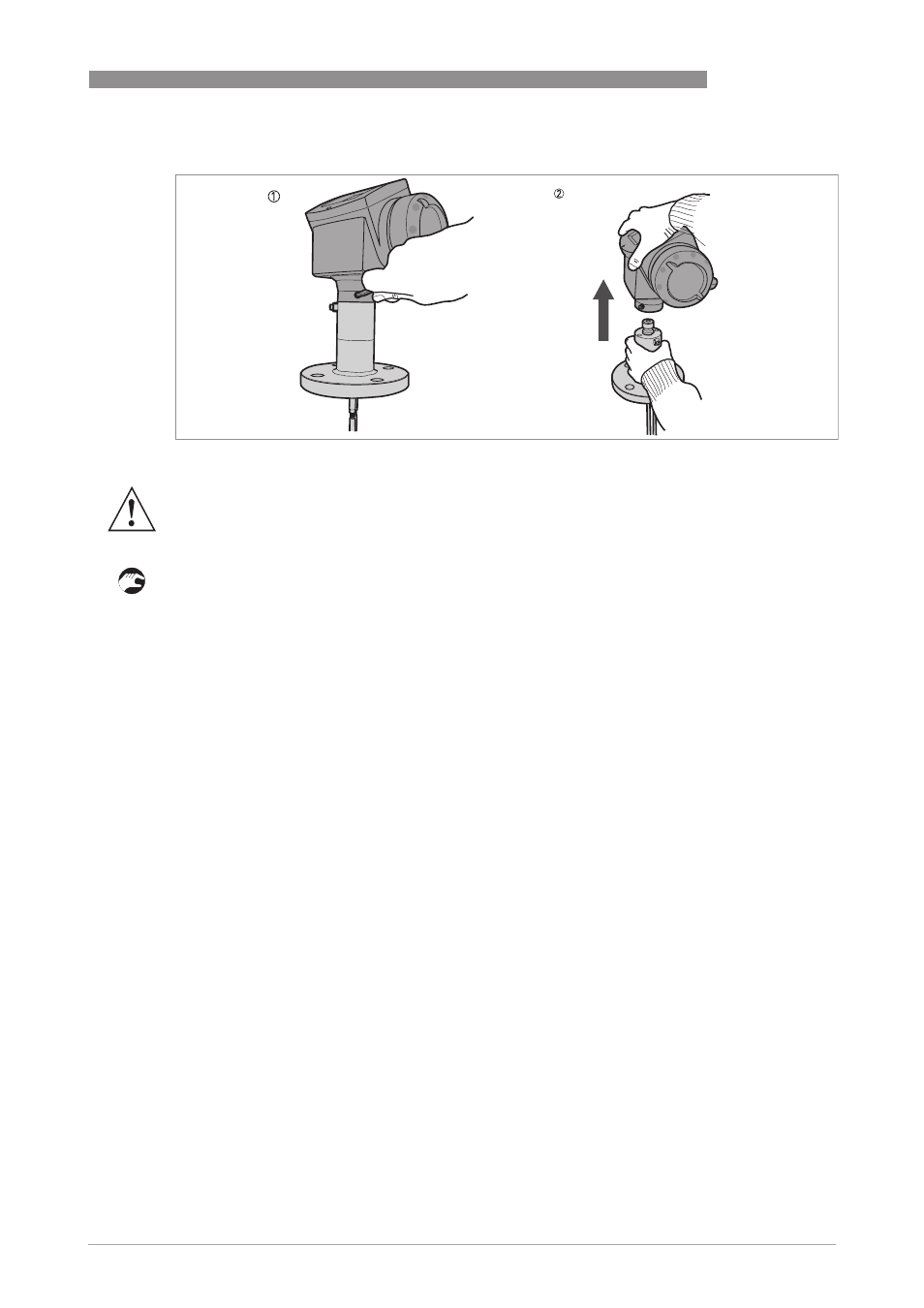

Procedure 2: How to remove the OPTIFLEX 1300 signal converter
Figure 7-7: Procedure 2: How to remove the OPTIFLEX 1300 signal converter
WARNING!
De-energize the device and disconnect the electrical cables before you remove the signal
converter.
