For single cable and single rod probes:

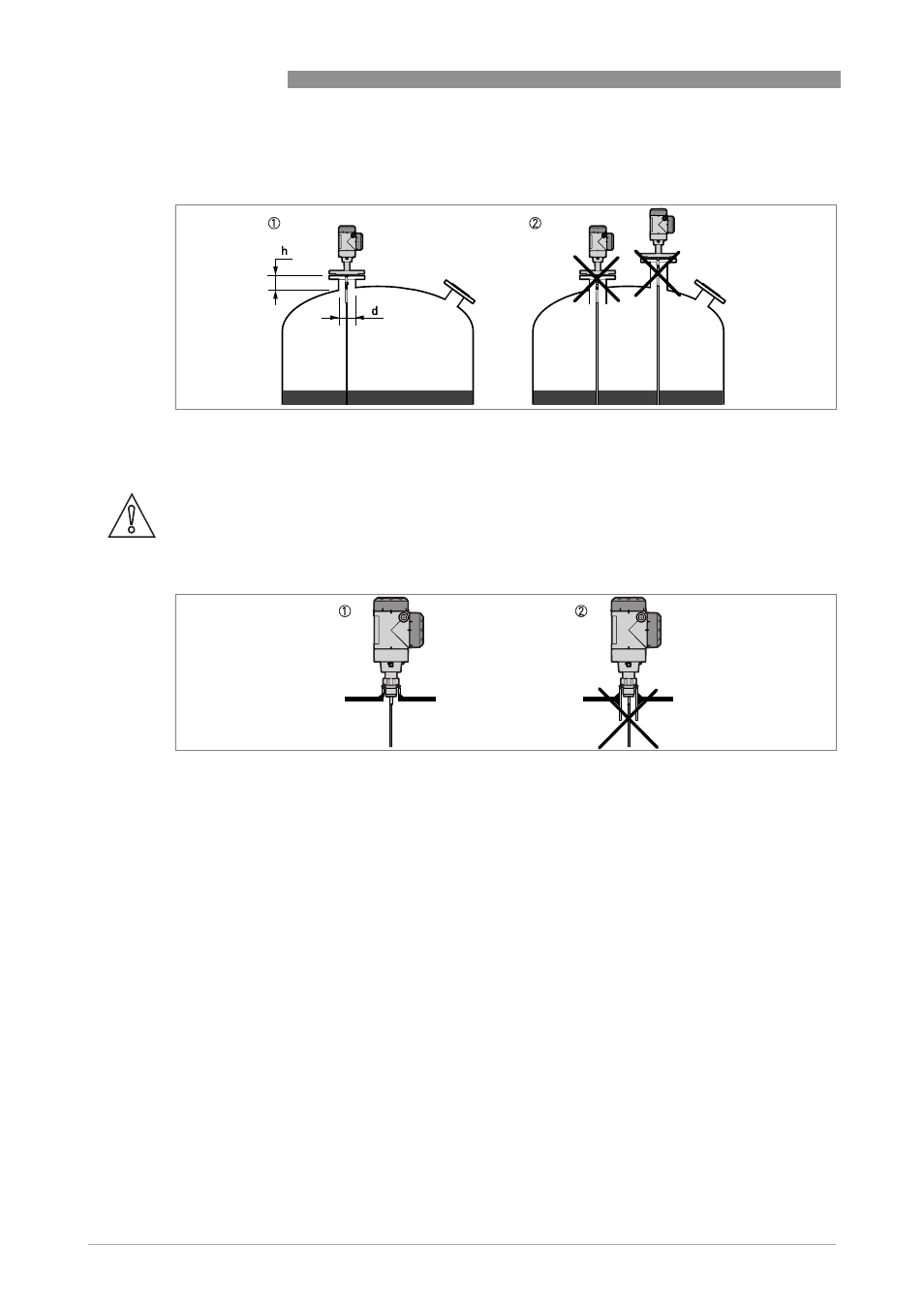

Figure 3-7: Recommended nozzle dimensions for single rod and single cable probes
1 Recommended conditions: h ≤ d, where h is the height of the tank nozzle and d is the diameter of the tank nozzle.
2 The end of the nozzle must not have an extension into the tank. Do not install the device on a high nozzle.
CAUTION!
If the device is installed on a high nozzle, make sure that the probe does not touch the side of the
nozzle (attach the probe end, ...).
Figure 3-8: Sockets for threaded process connections
1 Recommended installation
2 The end of the socket must not have an extension into the tank
