TECHNICAL DATA
8
135
OPTIFLEX 2200 C/F
www.krohne.com 07/2013 - 4000668002 - HB OPTIFLEX 2200 R02 en
Dimensions in mm
Dimensions in inches
Probe end options for cable probes: single cable Ø4 mm/0.15¨

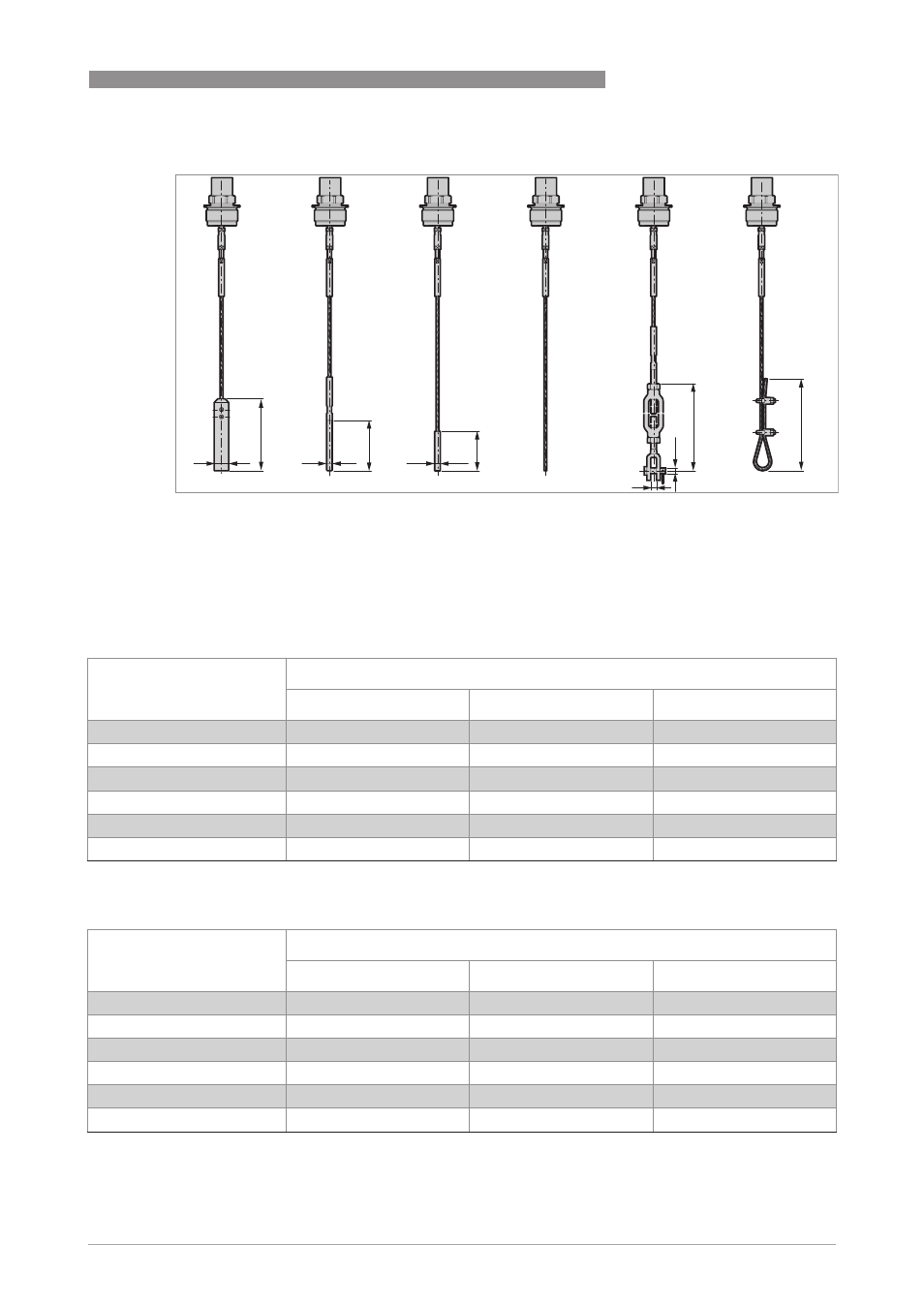

Figure 8-16: Probe end options for cable probes: single cable Ø4 mm/0.15¨
1 Standard counterweight
2 Threaded end
3 Crimped end
4 Open end
5 Turnbuckle
6 Chuck
n
n
t t
n
n n
t
t
v
1 2 3 4 5 6
Probe end type Dimensions [mm]
n t v
Counterweight 100 Ø20 -
Threaded end 70 M8 -
Crimped end 55 Ø8 -
Open end - - -
Turnbuckle 172 1 11 Ø6
Chuck 300 - -
1 Minimum length
Probe end type Dimensions [inches]
n t v
Counterweight 3.9 Ø0.8 -
Threaded end 2.8 M8 -
Crimped end 2.2 Ø0.3 -
Open end - - -
Turnbuckle 6.8 1 0.4 Ø0.2
Chuck 11.8 - -
1 Minimum length
